PM50RL1A120 Power Module Overview
The PM50RL1A120, manufactured by MITSUBISHI, is a robust power module designed to meet the demands of various applications with its impressive specifications. This module excels in providing efficient and reliable power, making it a valuable component in modern electronic systems. PM75RL1A120 can be used as a perfect replacement for PM50RL1A120

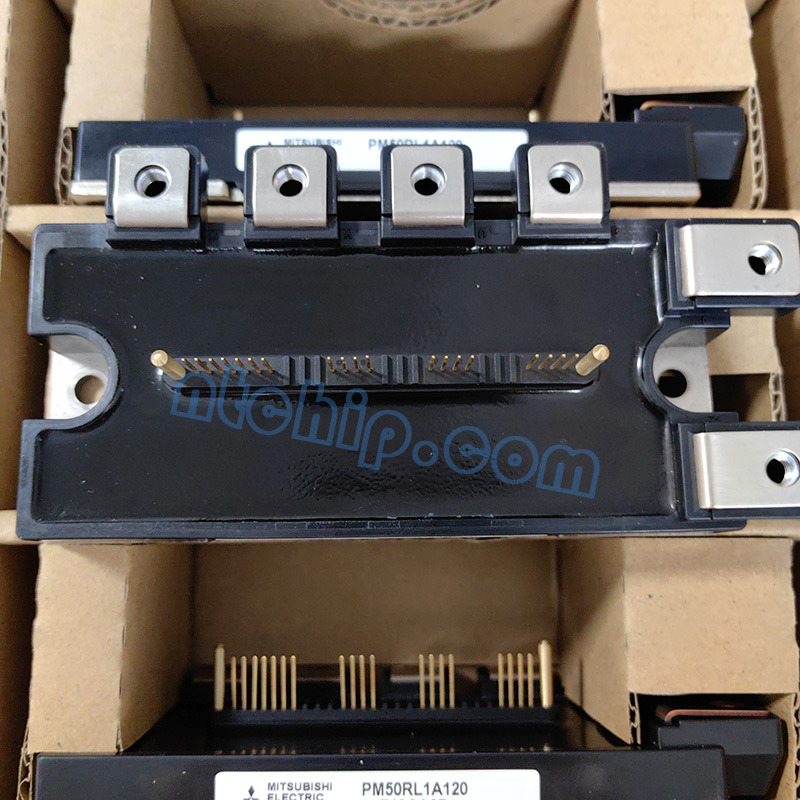

Top view of PM50RL1A120
Main Features
DC Collector Current: 50A
Transistor Polarity: N Channel
Collector Emitter Voltage V(br)ceo: 1.2kV
The PM50RL1A120 is equipped with a 50A DC collector current, ensuring ample power for a range of applications. Its N Channel transistor polarity enhances its versatility, while the collector-emitter voltage of 1.2kV underscores its capability to handle higher voltages with reliability.
Applications
The PM50RL1A120 is well-suited for various applications, including but not limited to:
Industrial Machinery: Ideal for powering components in small to medium-scale industrial machines that require a balance of power and efficiency.
Power Electronics: Finds applications in power electronics systems where N Channel transistors are preferred for their performance characteristics.
Renewable Energy: Suitable for use in renewable energy systems, contributing to efficient energy conversion in solar inverters and similar applications.
Advantages
The PM50RL1A120 offers several advantages, including:
Efficiency: With a focus on power efficiency, this module minimizes energy wastage, contributing to cost savings and environmental sustainability.
Reliability: The module's design prioritizes reliability, ensuring consistent performance even in demanding applications.
Compact Design: Despite its powerful capabilities, the compact design of the PM50RL1A120 makes it suitable for applications where space is a critical factor.
These advantages position the PM50RL1A120 as a reliable and efficient choice for electronic systems requiring a balance of power and space considerations.
MITSUBISH is the manufacturer of the PM50RL1A120, which is available in stock at Nantian. The reference price for PM50RL1A120 can be found by referring to infineon tech or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the PM50RL1A120 datasheet PDF and pin diagram description that are available for download.
Original PM50RL1A120 in stock box packaging
The PM50RL1A120 has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to PM50RL1A120 could be downloaded from Nantian's platform.
