The MCP2542FDT-E/MFVAO, manufactured by Microchip Technology, is a high-performance CAN (Controller Area Network) transceiver, designed to meet the requirements of CAN 2.0 and CAN with Flexible Data Rate (CAN FD) physical layer transceivers. It is optimized for CAN FD operation at 2, 5, and 8 Mbps, with a maximum propagation delay of 120 ns, and loop delay symmetry of -10%/+10% at 2 Mbps. This makes it a highly reliable choice for applications requiring fast and efficient data transmission.

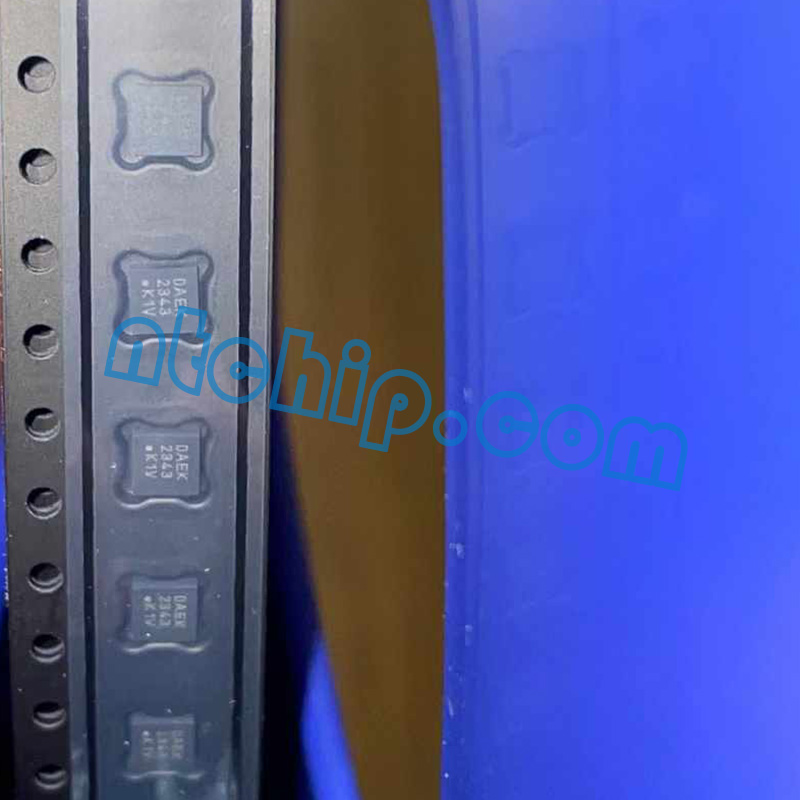

Microchip Technology MCP2542FDT-E/MFVAO Package Marking Information:
One of the standout features of this transceiver is its ability to wake up on CAN activity or a specified pattern, with a filter time of 3.6 µs. This feature enhances the responsiveness of the device in real-world applications. The MCP2542FDT-E/MFVAO is compliant with multiple ISO standards, including ISO11898-2:2003, ISO11898-5:2007, and ISO/DIS11898-2:2015, and is also AEC-Q100 Grade 0 qualified, making it suitable for operation in temperatures ranging from -40°C to +150°C. With a very low standby current and high electrostatic discharge (ESD) protection, it is designed for both 12V and 24V systems, making it versatile for a range of applications.

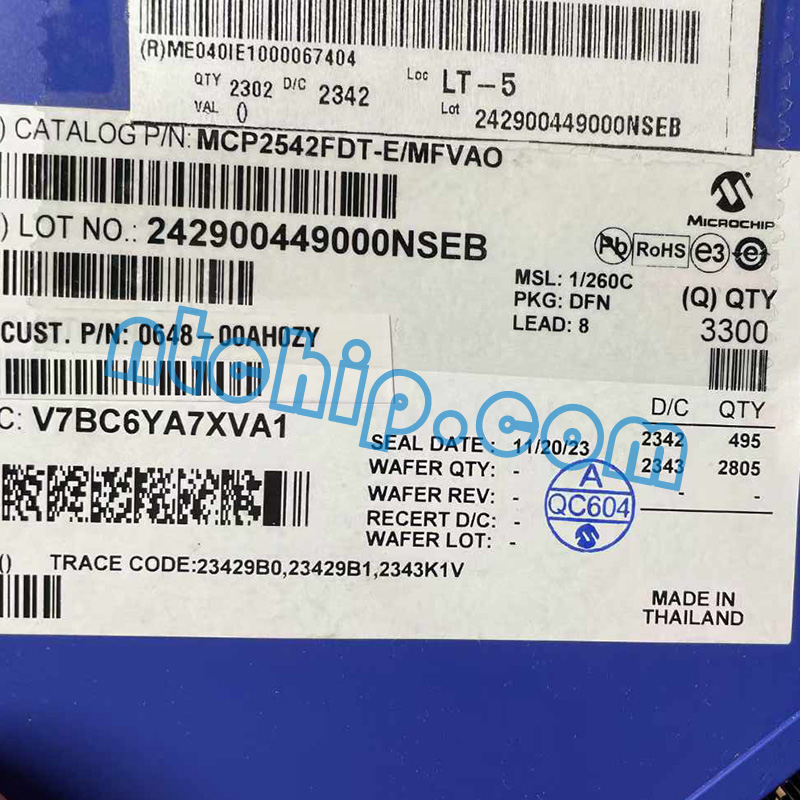

Microchip Technology MCP2542FDT-E/MFVAO Original Reel Label
As a trusted distributor of Microchip Technology, Nantian Electronics maintains a large stock of MCP2542FDT-E/MFVAO and provides downloadable resources such as the datasheet PDF and pin diagram instructions.
