Introduction to ATSAMD21G18A-UUT
The ATSAMD21G18A-UUT is a cutting-edge microcontroller unit (MCU) from Microchip Technology, renowned for its high performance and flexibility in a wide range of applications. This device is part of the SAM D21 family, which is built around the powerful ARM Cortex-M0+ processor core, offering the perfect balance between efficiency and computing power. Designed with modern embedded applications in mind, the ATSAMD21G18A-UUT provides a rich set of peripherals, extensive I/O capabilities, and low power consumption, making it an ideal choice for innovative projects and products.

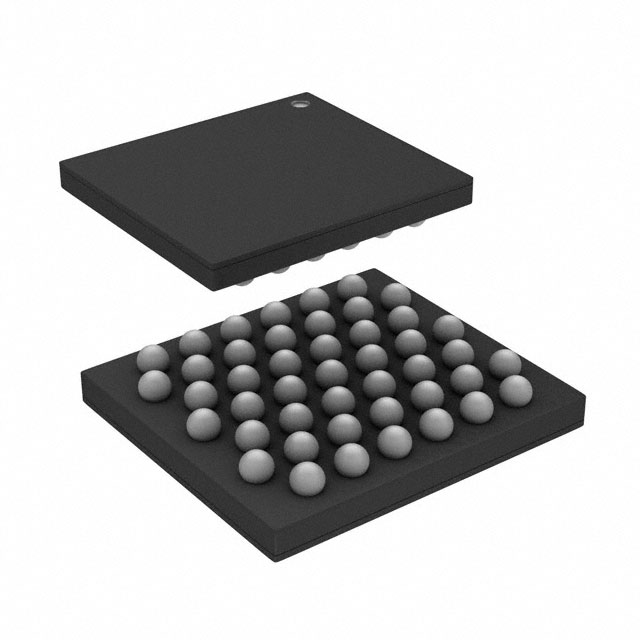

Microchip ATSAMD21G18A-UUT front and back appearance
Key Features
The ATSAMD21G18A-UUT boasts an array of features that cater to the demanding needs of contemporary embedded systems. Its ARM Cortex-M0+ core operates at up to 48 MHz, delivering the computational power required for complex tasks. The MCU comes with 256KB of flash memory and 32KB of SRAM, ample space for code and data storage. Its low power design ensures efficient operation, extending battery life in portable devices. Moreover, the MCU supports a variety of digital and analog interfaces, including SPI, I2C, UART, ADC, and DAC, providing excellent connectivity options for a multitude of peripherals.
Applications
The versatile nature of the ATSAMD21G18A-UUT enables its use across a broad spectrum of applications. These include:
Internet of Things (IoT) devices
Wearable technology
Smart home applications
Industrial control systems
Battery-operated devices
Medical monitoring systems
Advantages
The ATSAMD21G18A-UUT offers several advantages that make it a preferred choice for developers and engineers. Its high-performance ARM Cortex-M0+ processor ensures efficient processing with minimal power usage, ideal for applications requiring battery operation. The extensive on-chip memory facilitates complex applications without the need for external memory components, simplifying design and reducing system cost. The MCU's rich set of peripherals and I/O options enhance its versatility, allowing for the integration of various sensors and actuators, thus broadening the scope of potential applications.
Technical Specifications
Delving into the technical specifications of the ATSAMD21G18A-UUT reveals its capabilities:
CPU: ARM Cortex-M0+ running up to 48 MHz
Flash memory: 256KB
SRAM: 32KB
Low power consumption modes for energy efficiency
Comprehensive peripheral set including SPI, I2C, UART, ADC, and DAC
External Interrupts for event-driven operation
Package: 32-pin QFN
Conclusion
The ATSAMD21G18A-UUT microcontroller by Microchip Technology exemplifies a state-of-the-art solution for a multitude of embedded systems. Its blend of processing power, memory capacity, low energy consumption, and extensive peripheral support renders it highly suitable for everything from IoT devices to industrial control systems. This MCU not only meets the technical requirements of today's demanding applications but also offers a platform for innovation in embedded design.
Microchip Technology is the manufacturer of the ATSAMD21G18A-UUT, which is available in stock at Nantian. The reference price for ATSAMD21G18A-UUT can be found by referring to Microchip or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the ATSAMD21G18A-UUT datasheet PDF and pin diagram description that are available for download.

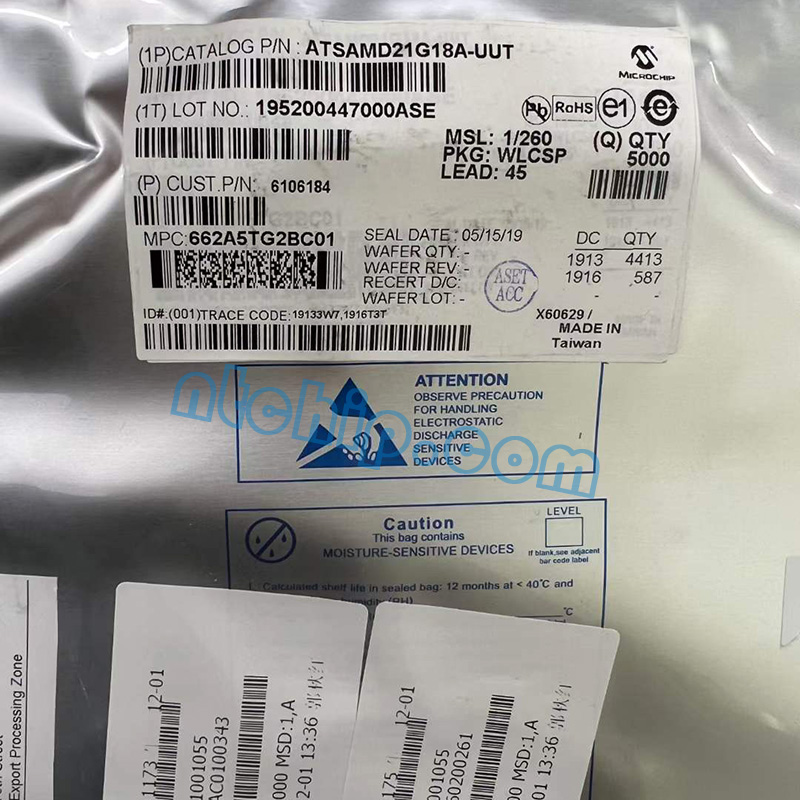

In Stock ATSAMD21G18A-UUT Packaging and Labeling
The ATSAMD21G18A-UUT has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to ATSAMD21G18A-UUT could be downloaded from Nantian's platform.
