The Melexis TH72015.2 is a highly integrated RF transmitter IC designed for low-power wireless communication within the frequency range of 380 MHz to 450 MHz. This versatile transmitter features a PLL-stabilized VCO for precise frequency control and supports both frequency-shift keying (FSK) and amplitude-shift keying (ASK) modulation. With FSK modulation rates up to 40 kbit/s and high deviation capabilities, it is ideal for applications requiring wideband data transmission. The transmitter's ASK functionality, achieved through on/off keying of the internal power amplifier, also supports data rates up to 40 kbit/s.
Operating across a wide voltage range of 1.95 V to 5.5 V, the TH72015.2 delivers adjustable output power levels ranging from -12 dBm to +10 dBm while maintaining efficient current consumption between 3.4 mA and 10.6 mA. It incorporates features like an on-chip low voltage detector, highly accurate frequency tuning, and a very low standby current, making it suitable for battery-powered devices. Packaged in a compact 10-pin QFN, this RF transmitter conforms to EN 300 220 and similar industry standards, ensuring reliable performance in various wireless communication designs.

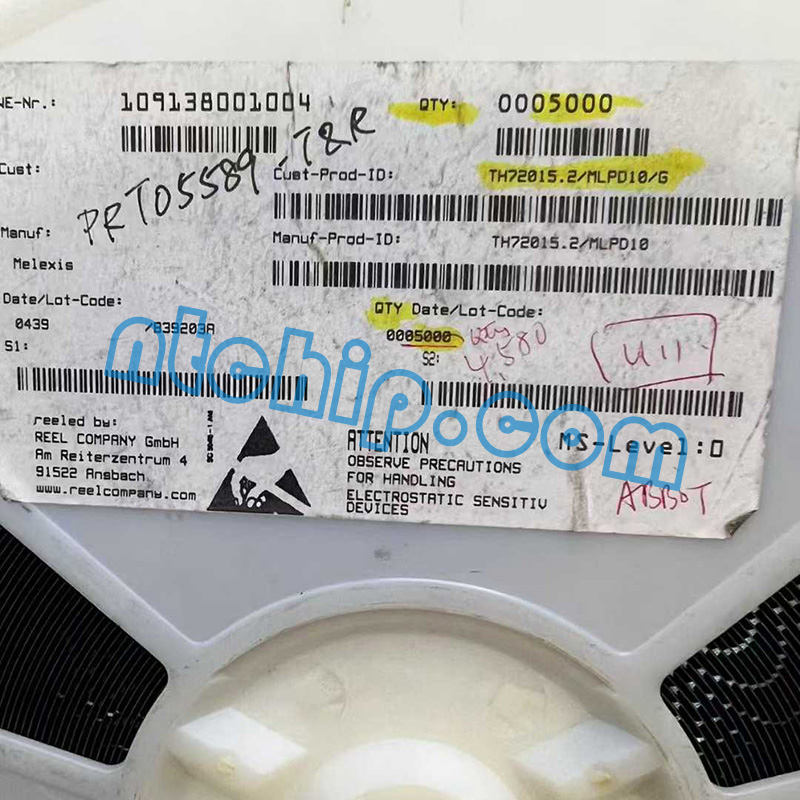

Melexis TH72015.2 Reel Original Label
Nantian Electronics, as a trusted Melexis distributor, offers a robust stock of the TH72015.2, complete with datasheet downloads and comprehensive customer support. Contact us today for pricing and assistance with your design needs!
