The MAX4995ALAUT+T from Maxim Integrated, now part of Analog Devices, is a current limit switch designed for applications requiring precise current management. This device can adjust the current limit from 50 mA to 600 mA, making it versatile for different electronic configurations. It features a maximum on-resistance of 350 mOhms and both the on-time and off-time are capped at 120 microseconds, ensuring quick response to changes in load conditions. Operating over a supply voltage range of 1.7 V to 5.5 V, it accommodates various power supplies and battery technologies.
The MAX4995ALAUT+T operates efficiently in a temperature range from -40°C to +125°C, suitable for harsh environments. Its compact SOT-23-6 package supports surface mount technology, facilitating integration into space-constrained applications.

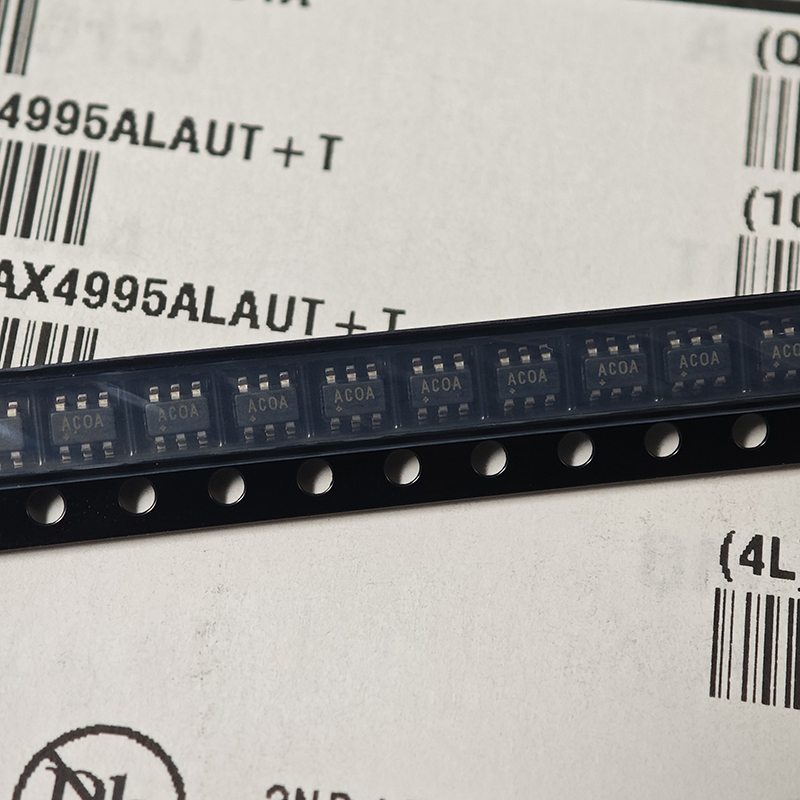

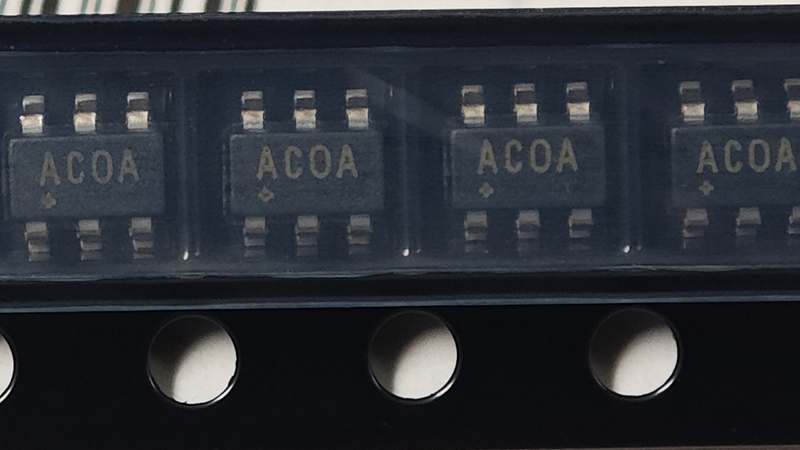

Original MAX4995ALAUT+T in Stock
As a professional Maxim Integrated distributor, Nantian Electronics has a large number of MAX4995ALAUT+T in stock. We also provide MAX4995ALAUT+T parameters, RK3308 Datasheet PDF and pin diagram instructions for download.
Features
50mA to 600mA Programmable Current Limit
±10% Accurate Current Limit
Overload FLAG Threshold
Low Dropout Voltage
Short-Circuit Protection
Thermal Shutdown
Reverse-Current Protection
170μA (typ) Supply Current
+1.7V to +5.5V Supply Voltage Range
Tiny 10-Pin, 1.4mm x 1.8mm UTQFN Package
Applications
SDIO Ports
USB Ports
Notebook VGA Ports
GPS
Cell Phones
MP3 Players
UTCA/ATCA Platforms
Pinout

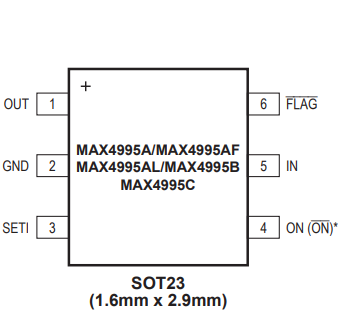

The pin configuration of MAX4995ALAUT is as follows:
MAX4995ALAUT+T Pin
