What are the main features of the LTC4257CS8-1#TRPBF?

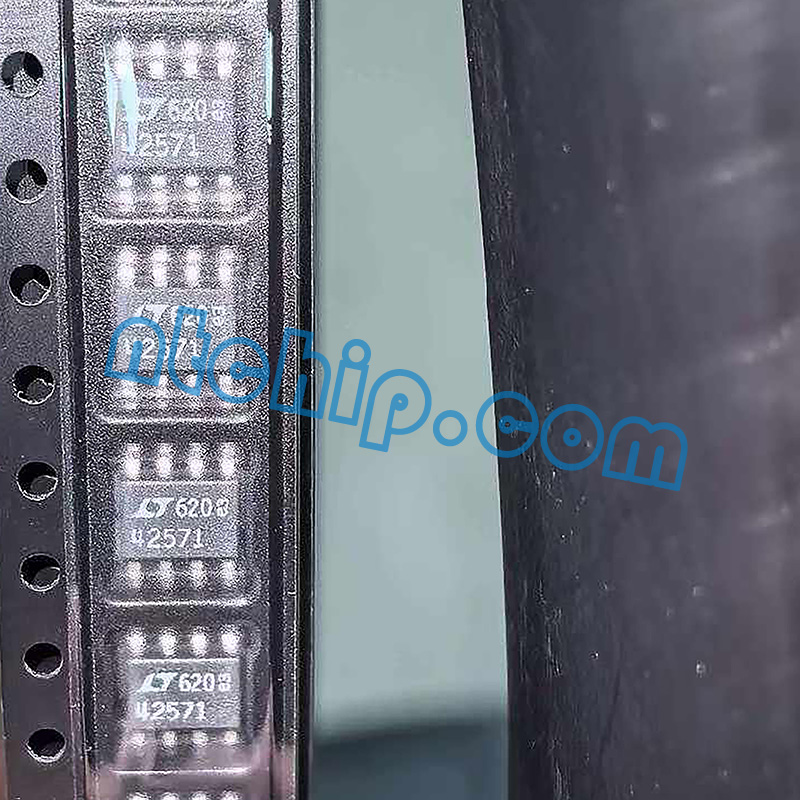

The LTC4257CS8-1#TRPBF is a single-port Power over Ethernet (PoE) controller designed to fully support IEEE 802.3af powered devices (PD). It integrates a high-voltage power MOSFET, a precision signature resistor for PoE detection, and programmable classification current for Class 0–4 power levels. The device also includes dual-level current limiting, undervoltage lockout, thermal overload protection, and a Power-Good status output, helping ensure safe, reliable power negotiation and delivery over Ethernet cables. Its compact 8-pin SO package simplifies PCB layout and reduces external component count.
What is it used for?
This PoE controller is used in powered devices that receive power and data over a single Ethernet cable, such as IP phones, wireless access points, security cameras, VoIP terminals, and other networked equipment where centralized power and simplified cabling are desired. The LTC4257CS8-1#TRPBF handles detection, classification, and power control functions, allowing designers to implement PoE capability with minimal design effort.
Does it have alternative parts?
Yes. Similar IEEE 802.3af/at PoE controller ICs are available from Linear/Analog Devices (e.g., LTC4269 series), Texas Instruments (e.g., TPS2372 series), and Microchip (e.g., PD70xx series). When choosing a substitute, make sure the alternative supports the same PoE standard (802.3af/at), required power class levels, protection features, and package type to match your design requirements.
