Overview of DTC143TS by LAPIS Semiconductor
The DTC143TS from LAPIS Semiconductor(ROHM Corporation acquired LAPIS Semiconductor) is a digital transistor with built-in resistors designed to minimize external components and simplify the circuit design process. It is a highly efficient, reliable and technologically advanced product that ensures fast, stable and flawless signal processing whilst limiting overall power consumption. This digital transistor ensures optimal performance and longevity, making it an ideal choice for a wide range of electronic applications.
Detail of DTC143TS
Key Features
The DTC143TS presents a plethora of key features which enhance its functionality and adaptability. The transistor comes with built-in input resistors which means that there is no necessity for external biasing components. Moreover, it boasts a high current gain character that ensures efficient operation. The device also has a high-density surface mounting, meaning it possesses the ability to be mounted with a high number of components per unit area, leading to enhanced functionality and better output.
Technical Specifications
The DTC143TS has robust technical specifications that place it as a superior product in the semiconductor market. The transistor has a collector-to-base voltage of 50V and a collector current of 100mA. The input resistor (R1) is 4.7kΩ while the output resistor (R2) is 4.7kΩ. Its power dissipation is at 200mW and it operates effectively within a temperature range of -55 to 150°C. It's presented in compact SOT-23 packages, ensuring space-saving on the PCB.
Application
The DTC143TS digital transistor lends itself to a variety of applications due to its advanced features and technical prowess. It is widely used in signal processing applications such as digital logic circuits and switch loads. Moreover, it can be found in driver ICs, voltage level shifting, and control circuits. Its reliability, efficiency and compact size make it suitable for use in portable devices, consumer electronics and industrial equipment.
As a reputable distributor of LAPIS Semiconductor, Nantian Electronics is committed to providing our customers with brand-new, original LAPIS Semiconductor DTC143TS. We offer these products at competitive prices and include a one-year warranty for your peace of mind. Furthermore, we don't require a minimum order quantity and guarantee same-day delivery service to meet your immediate needs.

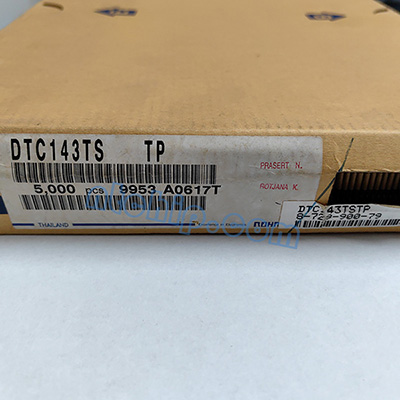

Box of Stock DTC143TS
