Introduction to the Infineon Technologies FZ2400R12HP4
The FZ2400R12HP4 is a high-performance single-switch IGBT (Insulated Gate Bipolar Transistor) module from Infineon Technologies, a leading provider of power semiconductor solutions. This module is designed for industrial applications that require reliable, efficient, and high-current power switching, such as motor drives, wind turbines, and solar inverters.

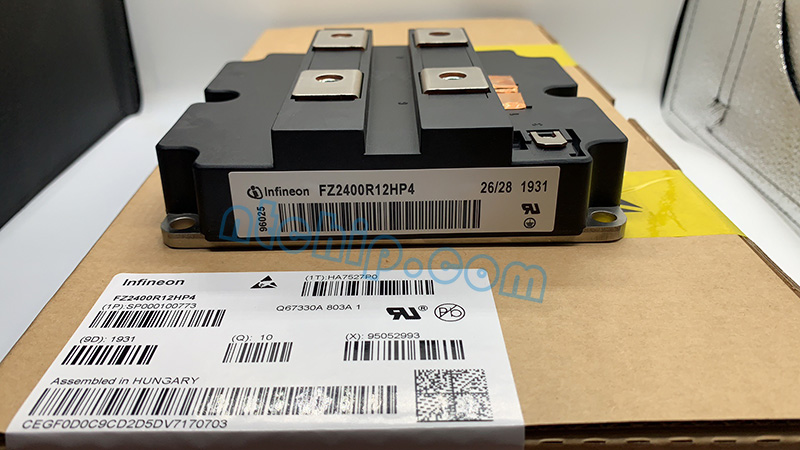

Infineon FZ2400R12HP4
Key Specifications and Features
The FZ2400R12HP4 offers impressive specifications that make it suitable for demanding high-power applications:
Voltage Class max: 1200 V, enabling its use in high-voltage systems
Nominal Collector Current (IC(nom)) / Forward Current (IF(nom)): 2400 A, allowing for high-current handling capability
Maximum Collector Current (IC max): 2400 A, ensuring reliable operation even under peak load conditions
Low VCE(sat) (typical at Tvj=25°C): 1.7 V, minimizing conduction losses and improving efficiency
Low VF (typical at Tvj=25°C): 1.8 V, reducing forward voltage drop and enhancing overall system performance
Advanced IGBT4 Technology
The FZ2400R12HP4 utilizes Infineon's advanced IGBT4 - P4 technology, which offers several benefits over previous generations of IGBTs. This technology enables faster switching speeds, lower switching losses, and improved thermal performance. As a result, the FZ2400R12HP4 can operate at higher frequencies and deliver better efficiency, ultimately leading to more compact and cost-effective power electronic systems.
Robust Packaging and Compact Design
The module comes in an IHM B housing, which is a robust and reliable package designed for high-power applications. With dimensions of 140 mm in width and 130 mm in length, the FZ2400R12HP4 offers a compact footprint that facilitates space-saving designs. The module's low-inductance internal layout and optimized thermal management ensure excellent electrical and thermal performance, even in challenging operating conditions.
Ordering Information
Infineon Technologies is the manufacturer of the FZ2400R12HP4, which is available in stock at Nantian. The reference price for FZ2400R12HP4 can be found by referring to Infineon Technologies or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the FZ2400R12HP4 datasheet PDF and pin diagram description that are available for download.

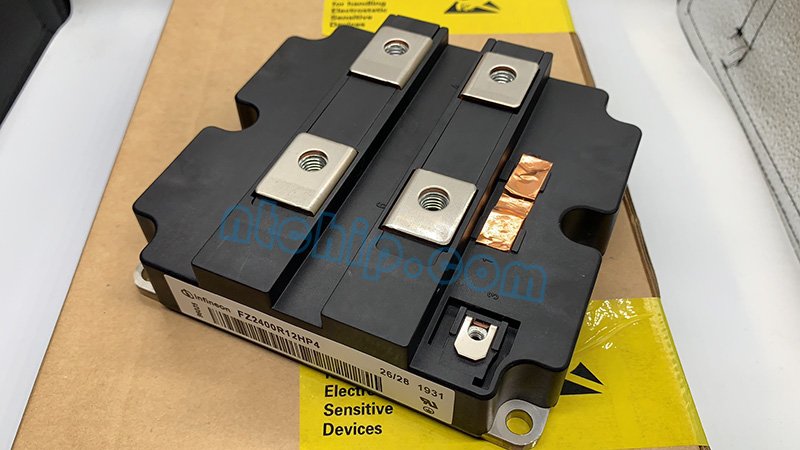

Original FZ2400R12HP4 in Stock
