Introduction to the FZ1200R33KF2C

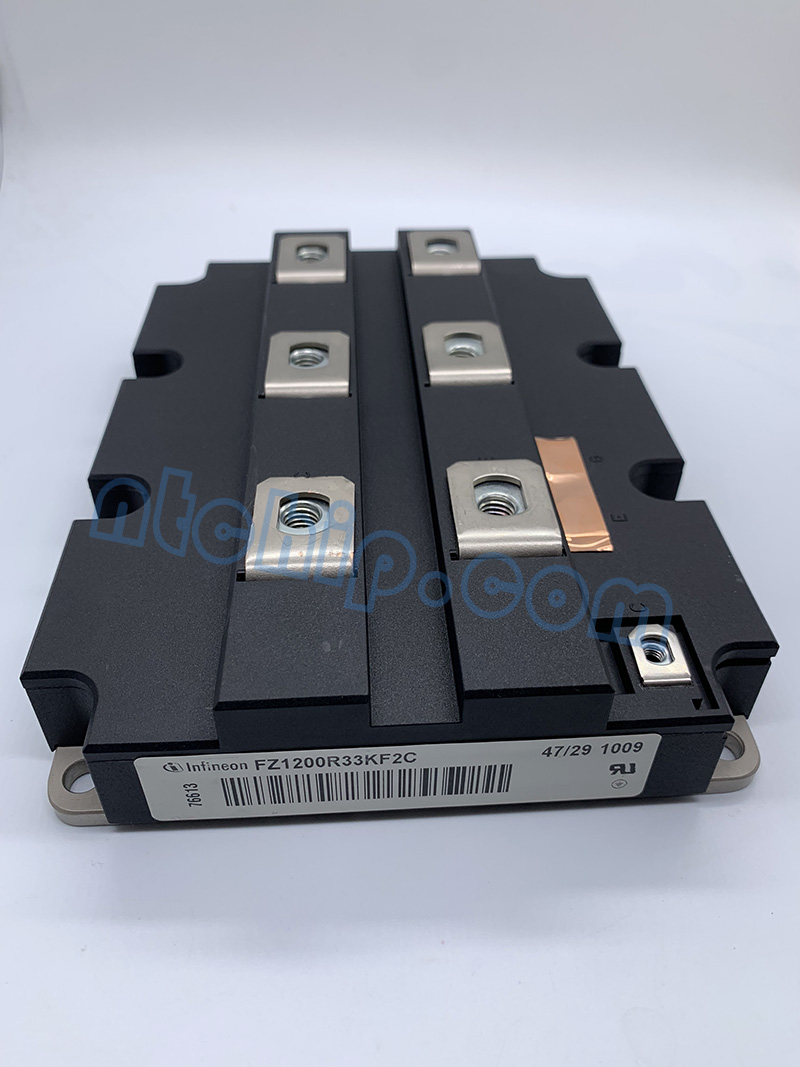

The FZ1200R33KF2C is a state-of-the-art IGBT (Insulated Gate Bipolar Transistor) module from Infineon Technologies, designed to efficiently manage and control large amounts of power in high-voltage applications. This module is specifically engineered for use in areas such as electric grid infrastructure, high-powered industrial machinery, and renewable energy systems. Infineon's dedication to innovation and quality shines through in this product, offering a solution that combines high performance with reliability.
Infineon FZ1200R33KF2C
Infineon Technologies is the manufacturer of the FZ1200R33KF2C, which is available in stock at Nantian. The reference price for FZ1200R33KF2C can be found by referring to Infineon Technologies or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the FZ1200R33KF2C datasheet PDF and pin diagram description that are available for download.
The FZ1200R33KF2C has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to FZ1200R33KF2C could be downloaded from Nantian's platform.
Key Specifications
Boasting a triple common emitter common gate configuration, the FZ1200R33KF2C can handle a collector-emitter voltage up to 3.3kV, making it suitable for high voltage applications. It supports a continuous collector current of 2kA at 25°C, ideal for systems requiring high power throughput. The collector-emitter saturation voltage is 3.4V, optimizing the module for efficient operation by minimizing energy loss. Its power dissipation capability is an impressive 14.5kW, highlighting the module's ability to manage significant power levels effectively.
Technology and Design
Utilizing advanced IGBT technology, the FZ1200R33KF2C minimizes conduction and switching losses, which enhances the overall efficiency and performance of the module. The design leverages Infineon's cutting-edge semiconductor materials and production techniques to achieve superior electrical and thermal characteristics. Encased in an IS5a (62 mm)-9 package, this module is designed for chassis mount installations, facilitating easy integration into various industrial setups while promoting effective thermal management.
Thermal Management and Durability
Effective thermal management is critical for the durability and performance of IGBT modules. The FZ1200R33KF2C is engineered to excel in this aspect, operating reliably across a broad temperature range from -40°C to +125°C. This capability ensures the module's performance remains consistent under different environmental conditions, thereby extending its service life and maintaining efficiency in demanding operational scenarios.
Safety and Reliability
Safety and reliability are paramount in the design and manufacture of Infineon's products. The FZ1200R33KF2C adheres to stringent international safety standards, providing a reliable and safe solution for managing high-voltage power. The module's robust construction and the use of high-quality materials ensure dependable operation in critical applications, underlining Infineon's commitment to delivering trusted power management solutions.
Applications
The versatile design and high-performance characteristics of the FZ1200R33KF2C make it suitable for a wide range of high-power applications. It is particularly well-suited for use in high-voltage direct current (HVDC) transmission systems, large-scale industrial drives, renewable energy inverters, and other power-intensive applications that demand efficient and reliable high-voltage power management. The module's ability to handle significant power loads with high efficiency makes it a preferred choice among engineers and designers in the power electronics field.
