What is the THS8200PFP used for?

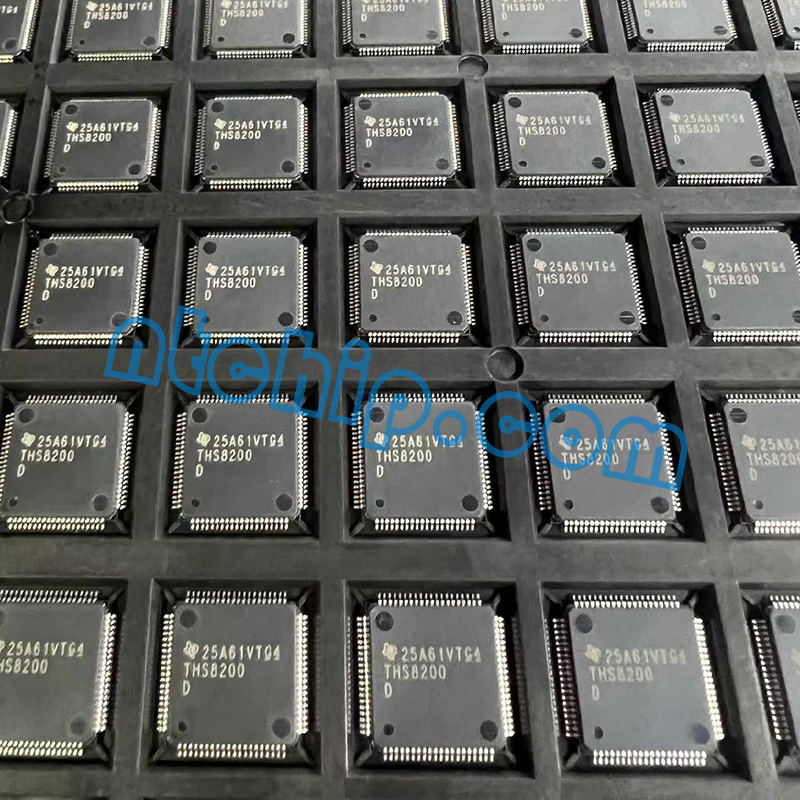

The Texas Instruments THS8200PFP is a high-performance video digital-to-analog converter (DAC) designed to convert digital video signals into analog outputs. It is commonly used in applications such as set-top boxes, DVD players, personal video recorders, HDTV displays, and other video processing systems. Its main role is to take digital video data from processors or decoders and generate high-quality analog video signals for display or transmission.
What are its key features?
This device integrates three high-speed 11-bit DACs operating up to 205 MSPS, enabling accurate and high-resolution video signal conversion. It supports a wide range of video standards, including ATSC formats up to 1080p and PC graphics up to UXGA at 75 Hz. The THS8200PFP includes built-in video processing features such as color space conversion, interpolation filters, and a programmable timing generator, which simplifies system design and improves output quality. It also supports multiple digital input formats (RGB and YCbCr) and provides flexible synchronization options, along with low-power operation and I²C control for easy configuration.
Does it have alternative parts?
Yes, there are alternative video DAC solutions depending on system requirements. Other devices from Texas Instruments with similar video DAC functionality can be considered, as well as products from manufacturers like Analog Devices or NXP. When selecting an alternative, it is important to compare key parameters such as resolution (10/11-bit), sampling rate (around 200 MSPS), supported video formats, input interface compatibility, and package type. Since video DACs are often tightly integrated into system design, ensuring compatibility with the video processing pipeline and timing requirements is essential before choosing a replacement.
