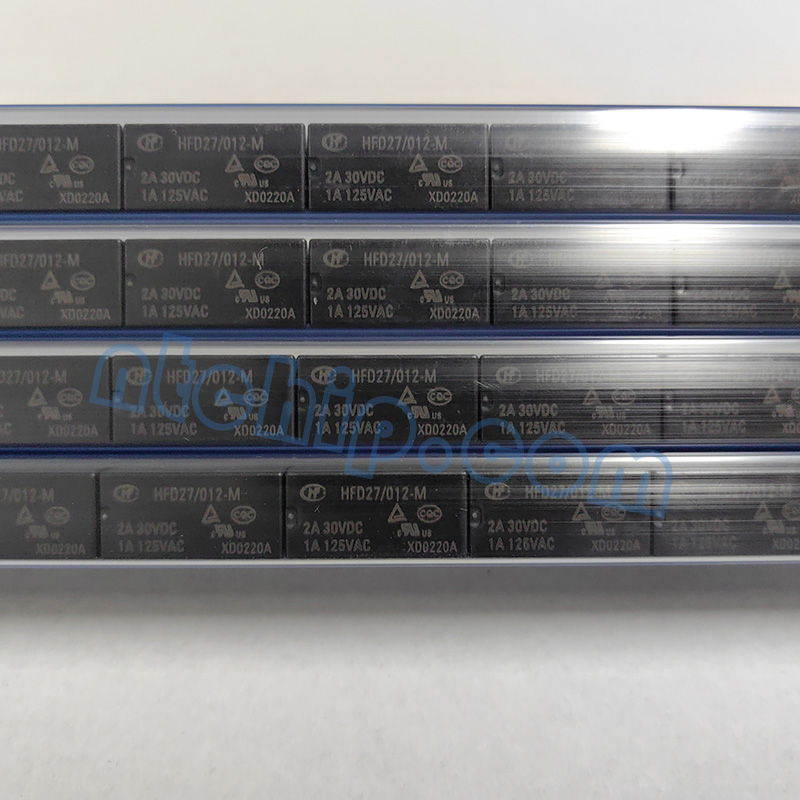

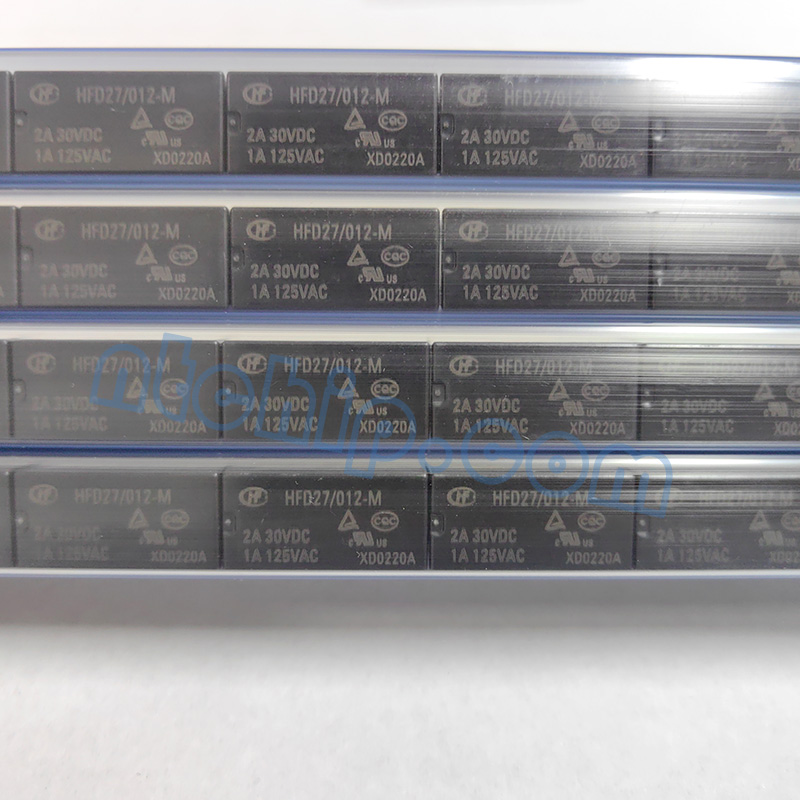

HONGFA HFD27/012-M

The HONGFA HFD27/012-M is a subminiature electromagnetic relay designed for PCB mounting, featuring a dual pole double throw (DPDT) contact configuration. It operates with a rated coil voltage of 12V DC and can manage contact currents up to 2A. With a voltage handling capacity up to 240V AC and 120V DC, it is versatile in its applications. The relay has a swift operate time of 7ms and a release time of 4ms, ensuring quick response in circuits. Its compact body measures 20.2x10x11.5mm, making it suitable for space-sensitive installations. The contacts are made from silver-nickel (AgNi) with a gold (Au) overlay to ensure reliable conductivity and low contact resistance of 100mΩ. The HONGFA HFD27/012-M can withstand operating temperatures from -40 to 85°C, making it robust for varied environmental conditions.

As a professional HONGFA distributor, Nantian Electronics has a large number of HFD27/012-M in stock. We also provide HFD27/012-M parameters, HFD27/012-M Datasheet PDF and pin diagram instructions for download.

Features

• 2 Form C configuration

• High switching capacity: 125VA/60W

• Matching 16 pin lC socket

• Bifurcated contacts

• Epoxy sealed for automatic-wavesoldering and cleaning

• Environmental friendly product (RoHS compliant)

• Outline Dimensions:(20.2 x10.0 x 11.5)mm

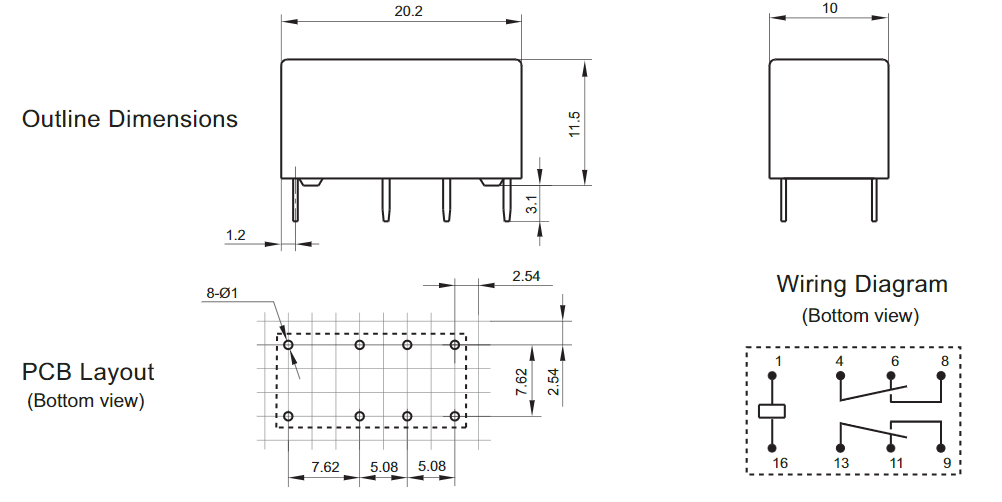

Dimensions

HFD27012M is 20.2mm long, 10mm wide, and 11.5mm high. More dimensions information is as shown below:
