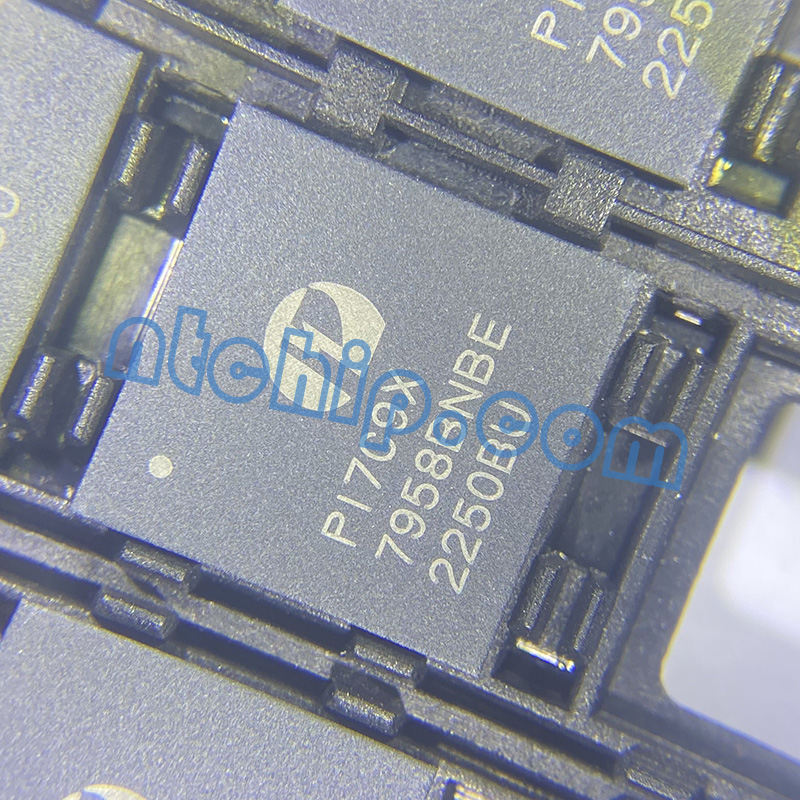

Diodes Incorporated PI7C9X7958BNBE

The Diodes Incorporated PI7C9X7958BNBE is a high-performance PCI Express to UART bridge controller designed to expand serial communication capabilities in industrial and embedded systems. Featuring an x1 PCI Express host interface and eight fully compatible 950-class UART channels, this device enables efficient high-speed serial data communication with baud rates up to 15 Mbps. Its advanced FIFO architecture, flexible clock configuration, and automated flow control functions help improve data handling efficiency and communication reliability in demanding applications.

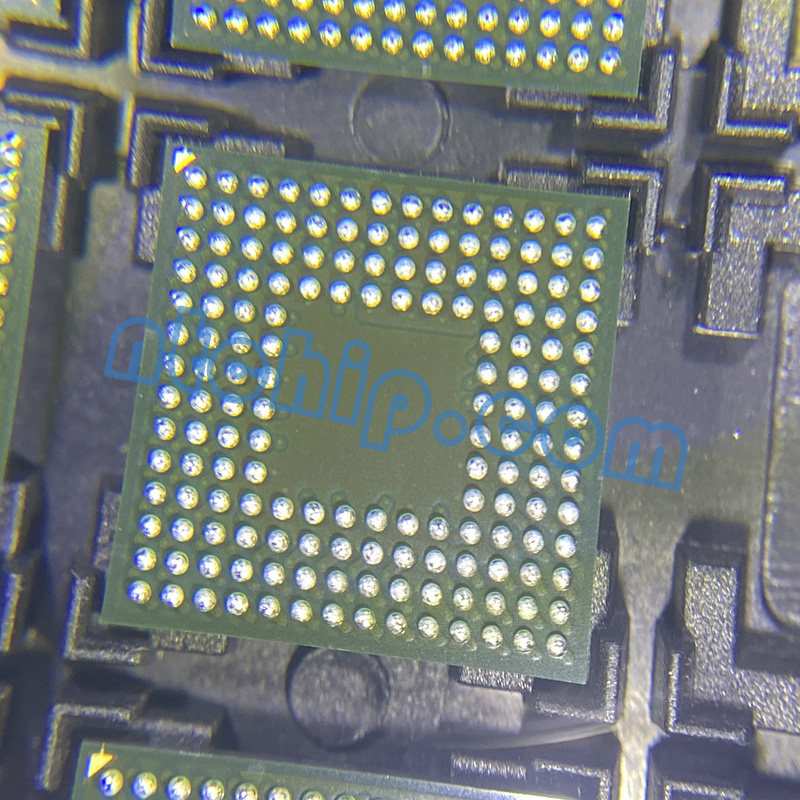

The PI7C9X7958BNBE is widely used in industrial automation, communication equipment, embedded computing, data acquisition systems, and networking applications requiring multiple UART interfaces through a PCIe connection. The device supports both I/O and memory-mapped operations and includes advanced interrupt management and hardware reconfiguration capabilities for flexible system integration. Packaged in a compact 160-pin LFBGA form factor, it operates across an industrial temperature range from -40°C to 85°C, making it suitable for harsh operating environments.

As a professional Diodes Incorporated supplier and distributor, Nantian Electronics maintains stock of PI7C9X7958BNBE and provides datasheets, pin diagrams, and technical support for customer development and purchasing needs.
