Diodes Incorporated AS358AMTR-E1

Manufacturer Part Number :	AS358AMTR-E1
Manufacturer :	Diodes Incorporated
Description :	IC OPAMP GEN PURP 8-SO 20 nA 700µA (x2 Channels)
Datasheet :	AS358AMTR-E1.PDF
EDA / CAD Models :	AS358AMTR-E1 by SnapEDA
Base Product Number :	AS358
Stock Condition :	In Stock 8000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Diodes Incorporated AS358AMTR-E1

In Stock: 8000 Qty:

RFQ Now Add to RFQ list

The AS358AMTR-E1 consists of two independent, high gain and internally frequency compensated operational amplifiers, they are specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages. Typical applications include transducer amplifiers, DC gain blocks and most conventional operational amplifier circuits.

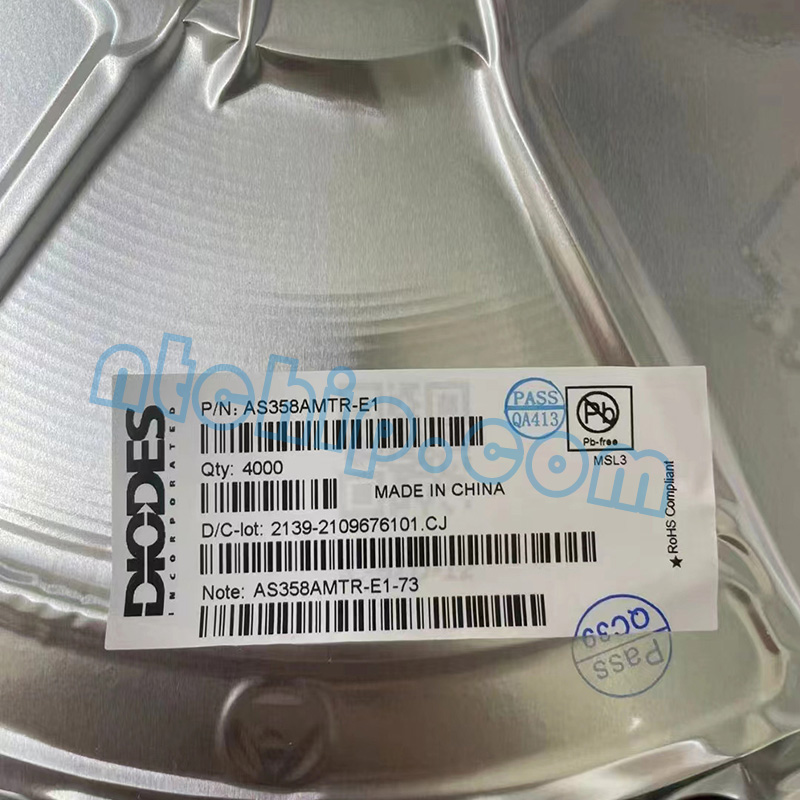

Diodes AS358AMTR

The AS358/358A/358B series is compatible with industry standard 358. The AS358A has more stringent input offset voltage than the AS358.

As a professional Diodes distributor, Nantian Electronics has a large number of AS358AMTR-E1 in stock. We also provide AS358AMTR-E1 parameters, AS358AMTR-E1 Datasheet PDF and pin diagram instructions for download.

Features

Internally Frequency Compensated for Unity Gain
Large Voltage Gain: 100dB (Typical)
Low Input Bias Current: 20nA (Typical)
Low Input Offset Voltage: 2mV (Typical)
Low Supply Current: 0.5mA (Typical)
Wide Power Supply Voltage: Single Supply: 3V to 36V, Dual Supplies: ±1.5V to ±18V
Input Common Mode Voltage Range Includes Ground  Large Output Voltage Swing: 0V to VCC -1.5V

Applications

Battery Charger
Cordless Telephone
Switching Power Supply

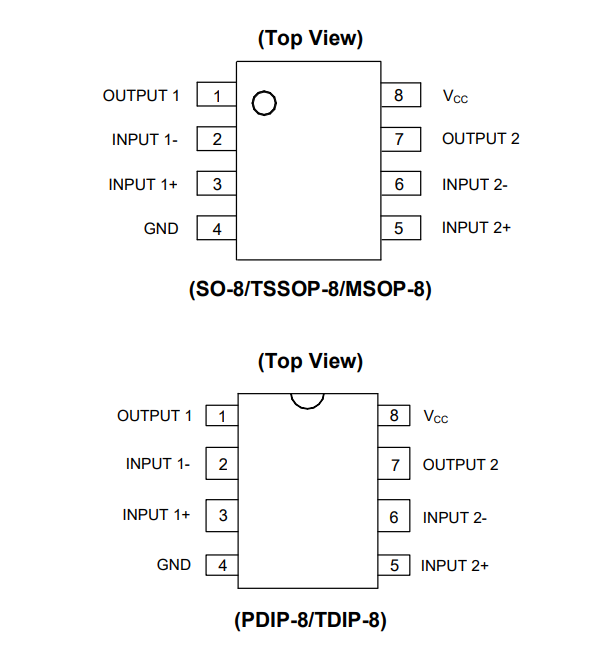

Pin Configuration

The pin assignment of AS358AMTR-E1 is as follows:

AS358AMTR-E1 Pin Configuration Diagram

Amplifier Type:	General Purpose
Output Type:	-
Slew Rate:	-
Gain Bandwidth Product:	-
Current - Input Bias:	20nA
Voltage - Input Offset:	2mV
Current - Supply:	700?A
Current - Output / Channel:	40mA
Voltage - Supply, Single/Dual (÷):	3 V ~ 36 V, ÷1.5 V ~ 18 V
Operating Temperature:	-40▲C ~ 85▲C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
