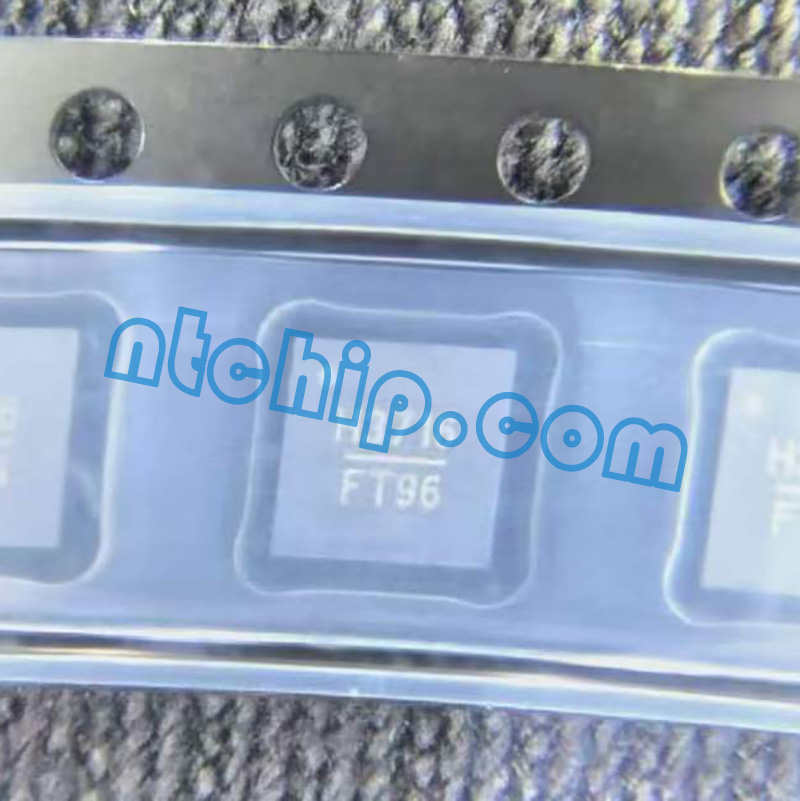

What is the HMC3716LP4ETR used for?
The HMC3716LP4ETR is an RF detector IC used to monitor and measure RF signal levels in a wide frequency range from 10 MHz to 1.3 GHz. It is commonly applied in wireless communication systems, RF power monitoring circuits, test and measurement equipment, and signal control loops. It helps systems detect signal strength and ensure proper operation by providing accurate feedback for gain control, signal presence detection, or protection functions.
What are its key features?
This device offers high sensitivity with an input power range from -10 dBm to +5 dBm and delivers precise detection performance. One of its standout features is its ultra-low SSB phase noise floor (around -153 dBc/Hz at 10 kHz offset), which ensures stable operation in noise-sensitive environments. It includes integrated output resistors to simplify external circuit design, as well as lock detect and invert functionality for enhanced system control. Its compact 24-pin 4×4 mm VFQFN package makes it suitable for space-constrained RF designs.
Does it have alternative parts?
Yes, there are alternative RF detector or power detector ICs available depending on the required specifications. Analog Devices offers other RF detector products with different frequency ranges and sensitivities. Alternatives from manufacturers such as Texas Instruments, Analog Devices (HMC series or ADL series), and other RF component suppliers may also be considered. When selecting a replacement, it is important to compare parameters such as frequency range, input power range, detection accuracy, response time, package type, and additional features like output type and control functions to ensure compatibility with the target application.
