Analog Devices Inc. ADE9000ACPZ

Manufacturer Part Number :	ADE9000ACPZ
Manufacturer :	Analog Devices Inc.
Description :	IC AFE 7 CHAN 40LFCSP-WQ
Package :	LFCSP-40
Datasheet :	ADE9000ACPZ.PDF
EDA / CAD Models :	ADE9000ACPZ by SnapEDA
Base Product Number :	ADE9000
Stock Condition :	In Stock 35000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Analog Devices Inc. ADE9000ACPZ

In Stock: 35000 Qty:

RFQ Now Add to RFQ list

The ADE9000ACPZ from Analog Devices Inc. is a high-precision, 7-channel analog front-end (AFE) designed for advanced energy measurement and power quality monitoring applications. It integrates high-performance ADCs with a signal-to-noise ratio of 101 dB and supports a wide input voltage range, ensuring accurate and stable data acquisition. With low drift characteristics and differential input capability, it enables precise measurement over a wide dynamic range, making it suitable for demanding metrology systems that require reliable long-term accuracy.

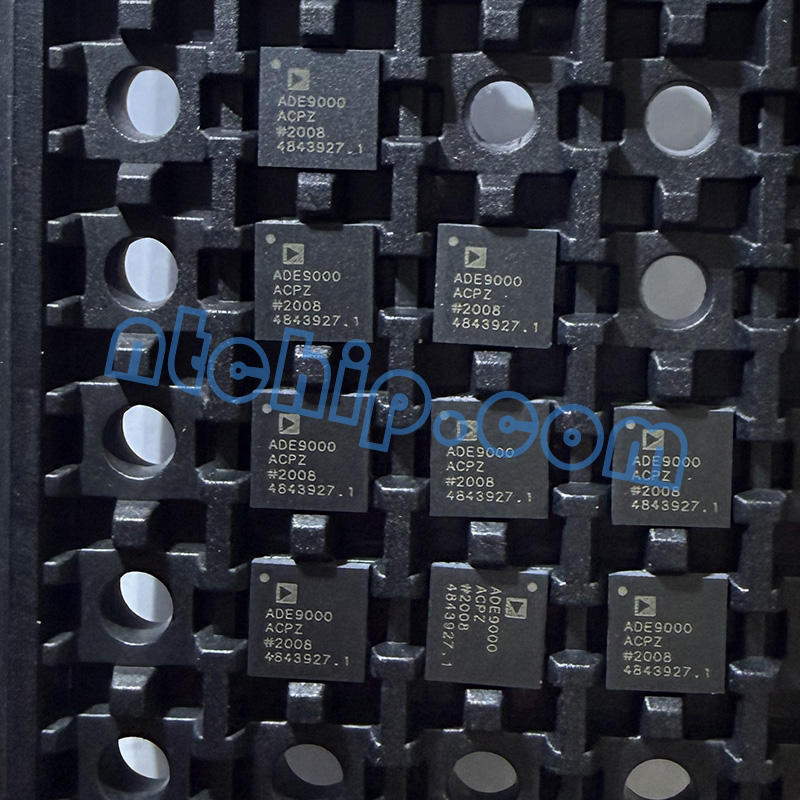

Analog Devices Inc. ADE9000ACPZ electronic part

This device is widely used in smart meters, industrial energy monitoring, and power quality analysis systems. It supports key standards for active and reactive energy measurement and provides comprehensive features such as RMS calculations, harmonic analysis, power factor measurement, and event detection like voltage dips and swells. The ADE9000ACPZ also includes flexible waveform capture, a high-speed SPI interface, and an integrated temperature sensor, simplifying system design while enhancing performance.

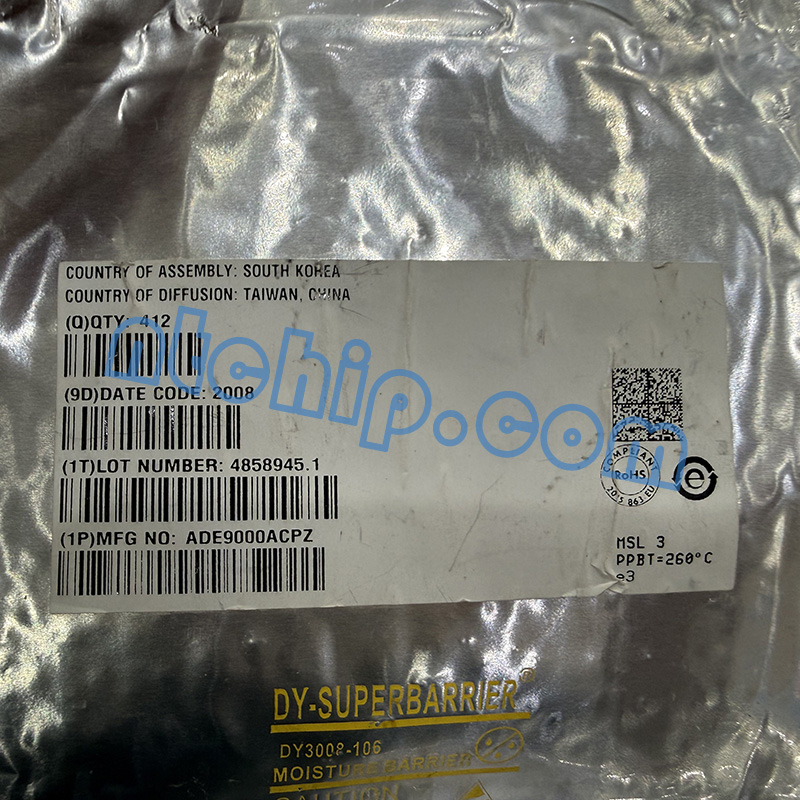

Analog Devices Inc. ADE9000ACPZ original reel label

Nantian Electronics offers ample stock of ADE9000ACPZ along with datasheets and technical support, and welcomes inquiries for competitive pricing and orders.

Type	Description
Category	Integrated Circuits (ICs) Data Acquisition - Analog Front End (AFE)
Manufacturer	Analog Devices Inc.
Series	-
Packaging	Tray
Part Status	Active
Number of Bits	-
Number of Channels	7
Voltage - Supply, Analog	3.3V
Voltage - Supply, Digital	3.3V
Mounting Type	Surface Mount
Package / Case	40-WFQFN Exposed Pad, CSP
Supplier Device Package	40-LFCSP-WQ (6x6)
Base Product Number	ADE9000

What are its key features?

7-channel AFE, high-performance ADC (101 dB SNR), wide input range, high accuracy with low drift, power quality measurement, harmonic analysis, SPI interface, and built-in temperature sensor.

What is it used for?

Used in smart meters, energy monitoring systems, and power quality analysis for measuring voltage, current, power, and energy.

Are there alternative parts?

Yes, similar solutions include ADE9078 and ADE9153A from Analog Devices, as well as comparable energy metering ICs from Texas Instruments and STMicroelectronics.

Reviews for this product

Warranty & Returns

Warranty, Returns, and Additional Information

QA & Return Policy

Parts Quality Guarantee: 365 days

Returns for refund: within 90 days

Returns for Exchange: within 90 days

Shipping and Package

Shipping:Fedex ,UPS, DHL,TNT, SF.

Parts Packaging Guarantee:100% ESD anti-static protection, combined with high toughness and superior impact absorption.

Payment

Bank Wire Transfer, VISA, MaterCard,Paypal, Westerm Union

How we verify ADE9000ACPZ authenticity?

At NTCHIP.com, we are committed to delivering the highest standards in electronic components. For critical Integrated Circuits (ICs)-Data Acquisition - Analog Front End (AFE) like the Analog Devices Inc. ADE9000ACPZ, we operate a professional Quality Control (QC) center to ensure every unit you receive is factory-grade in quality and reliability.
