Texas Instruments MAX660MX/NOPB

Manufacturer Part Number :	MAX660MX/NOPB
Manufacturer :	Texas Instruments
Description :	IC REG CHRG PUMP INV 100MA
Package :	8SOIC
Datasheet :	MAX660MX/NOPB.PDF
EDA / CAD Models :	MAX660MX/NOPB by SnapEDA
Base Product Number :	MAX660
Stock Condition :	In Stock 35900, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments MAX660MX/NOPB

In Stock: 35900 Qty:

RFQ Now Add to RFQ list

The MAX660MX/NOPB from Texas Instruments is a compact charge pump switching regulator designed to generate positive or negative output voltages without the need for inductors. It supports fixed voltage conversion modes such as voltage inversion or doubling, delivering up to 100mA of output current. With its simple external component requirement and efficient charge pump architecture, this device helps reduce design complexity and overall system size.

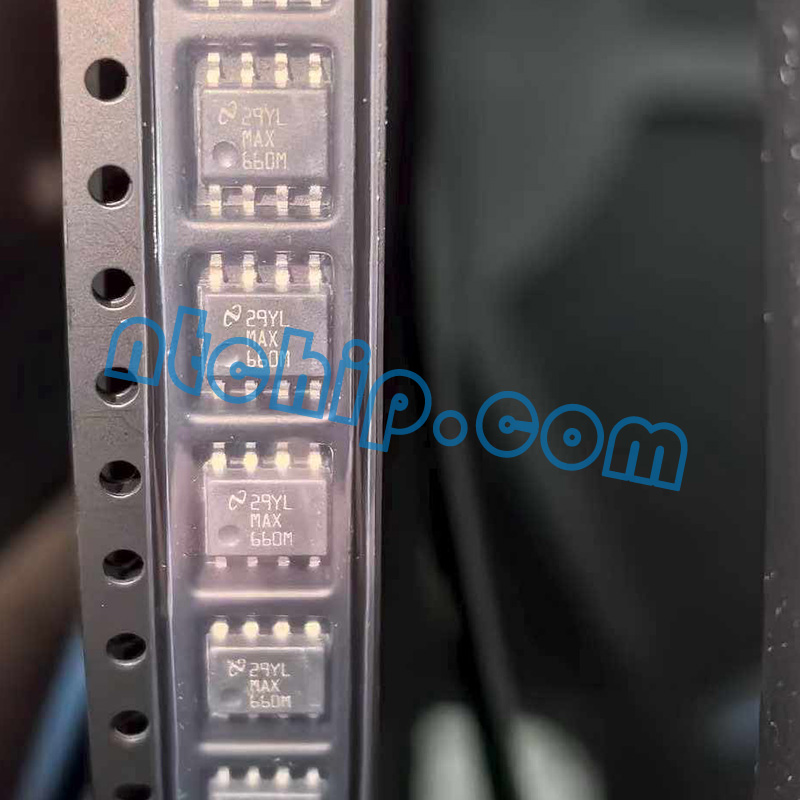

Texas Instruments MAX660MX/NOPB component part

Packaged in a small 8-SOIC form factor, the MAX660MX/NOPB is well suited for space-constrained designs that need stable auxiliary power rails. It is commonly used in analog circuits, sensor interfaces, data acquisition systems, and communication equipment where a negative supply or boosted voltage is required from a single input source. Its ease of use and reliable performance make it a practical choice for a wide range of embedded and industrial applications.

As an authorized Texas Instruments supplier and distributor, Nantian Electronics maintains ample stock of the MAX660MX/NOPB. We offer complete technical resources, including detailed specifications, the MAX660MX/NOPB datasheet (PDF), and pin configuration guides for easy reference. For pricing and purchasing, please get in touch with us—our team will provide a competitive quote and prompt support for your inquiry or order.

Type	Description
Category	Integrated Circuits (ICs) PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr	Texas Instruments
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Function	Ratiometric
Output Configuration	Positive or Negative
Topology	Charge Pump
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	1.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	-Vin, 2Vin
Voltage - Output (Max)	-
Current - Output	100mA
Frequency - Switching	10kHz, 80kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Product Number	MAX660

What are the main features of the MAX660MX/NOPB?

The MAX660MX/NOPB is a compact charge-pump switching regulator that can generate positive or negative output voltages. It supports fixed voltage inversion or doubling, delivers up to 100 mA output current, and requires no inductors, making it simple and space-saving for PCB designs.

What is it used for?

This device is commonly used to generate negative supplies or boosted voltages in systems such as RS-232 interfaces, operational amplifier biasing, LCD bias supplies, and other low-power analog or mixed-signal circuits.

Are there alternative parts?

Yes. Possible alternatives include TI’s LM2662, MAX1044, or similar charge-pump voltage converters from Analog Devices and Microchip, depending on voltage, current, and package requirements.
