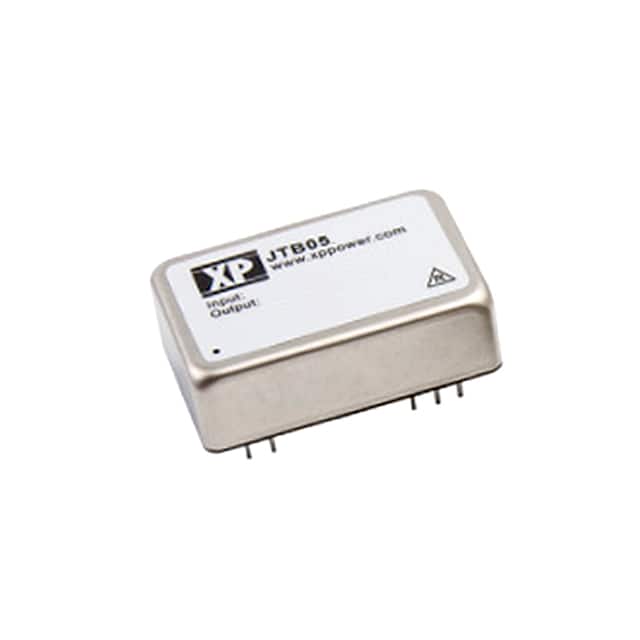

XP Power JTB0548D12

Manufacturer Part Number :	JTB0548D12
Manufacturer :	XP Power
Description :	DC DC CONVERTER +/-12V 6W
Datasheet :	JTB0548D12.PDF
EDA / CAD Models :	JTB0548D12 by SnapEDA
Base Product Number :	JTB0548
Stock Condition :	In Stock 5635, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

XP Power JTB0548D12

In Stock: 5635 Qty:

RFQ Now Add to RFQ list

We can supply XP Power part# JTB0548D12, use the request quote form to request JTB0548D12 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JTB0548D12. The price and lead time for JTB0548D12 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# JTB0548D12. We look forward to doing business with you.

Package	24-DIP Module, 14 Leads
Series	JTB05 (5W)
RoHS	RoHS
Type	Isolated Module
Features	OCP, SCP
Efficiency	79%
Applications	ITE (Commercial)
Mounting Type	Through Hole
Power (Watts)	6 W
Package / Case	24-DIP Module, 14 Leads
Product Status	Active
Approval Agency	-
Standard Number	-
Control Features	-
Size / Dimension	1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm)
Number of Outputs	2
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	-
Voltage - Output 4	-
Voltage - Isolation	1.5 kV
Operating Temperature	-25°C ~ 100°C (With Derating)
Voltage - Input (Max)	72V
Voltage - Input (Min)	18V
Current - Output (Max)	230mA, 230mA
Supplier Device Package	-
