Q: What are the main features of the SBAT54SLT1G?

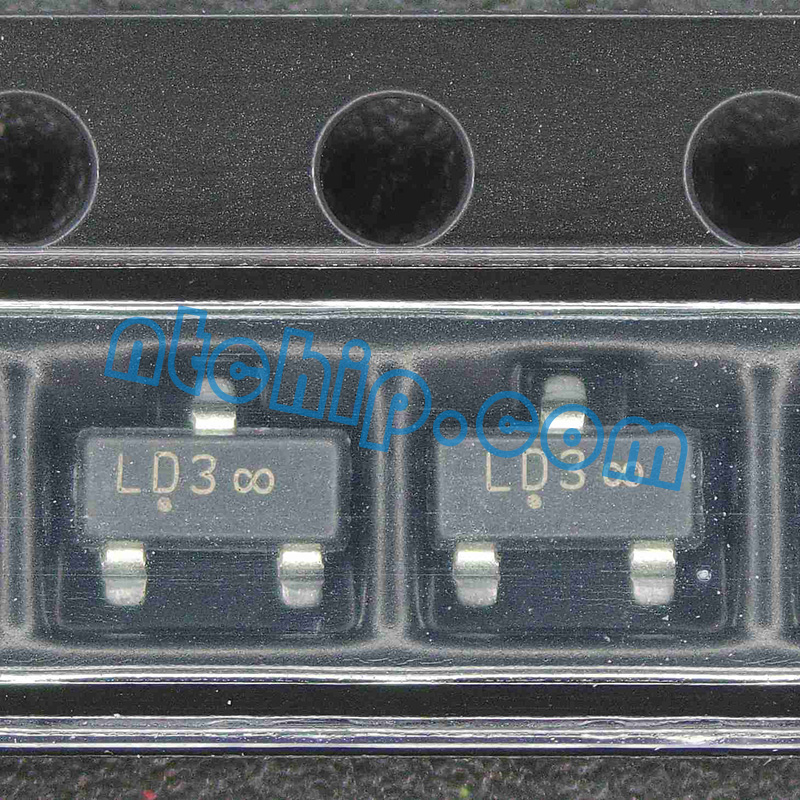

A: The SBAT54SLT1G is a Schottky diode array consisting of one pair of diodes connected in series in a compact SOT-23-3 (TO-236-3/SC-59) surface-mount package. It features a maximum reverse voltage of 30 V, a continuous forward current of 200 mA, an extremely fast switching speed, and a low typical forward voltage of 0.35 V at 10 mA. The device is also Pb-free, halogen-free, RoHS compliant, and available in automotive-qualified versions that meet AEC-Q101 and PPAP requirements.
Q: What is the SBAT54SLT1G used for?
A: The SBAT54SLT1G is commonly used in high-speed switching circuits, signal routing, voltage clamping, protection circuits, logic interfaces, RF applications, and low-power electronic systems. Its low forward voltage helps reduce power loss, while its fast switching performance makes it suitable for consumer electronics, industrial equipment, automotive electronics, communication devices, and portable products.
Q: Dose it has any Alternative manufacturer and part number?
A: Yes. There are similar Schottky diode arrays available from other manufacturers, such as Nexperia BAT54S, Diodes Incorporated BAT54S-7-F, Vishay BAT54S-E3-08, STMicroelectronics BAT54SFILM, and ROHM Semiconductor RB520S-30T2R. Although these devices offer comparable functionality, designers should always compare the package type, electrical characteristics, forward voltage, current rating, and thermal performance to ensure they meet the requirements of the intended application.
Q: Is technical support available for this part?
A: Yes. Professional distributors can provide technical support for the SBAT54SLT1G, including datasheets, pin diagrams, electrical specifications, application guidance, replacement recommendations, and inventory availability. Nantian Electronics also offers quotation services, sourcing assistance, and responsive customer support to help customers select and procure the right components for both prototype development and mass production.
