Introduction to W25Q128JVSIQ by Winbond Electronics
The W25Q128JVSIQ from Winbond Electronics is an advanced storage solution, known as a flash memory chip, with a storage capacity of 128M-bit. A part of the Winbond's W25Q-Series, this chip stands out for its high performance and reliability in data storage.

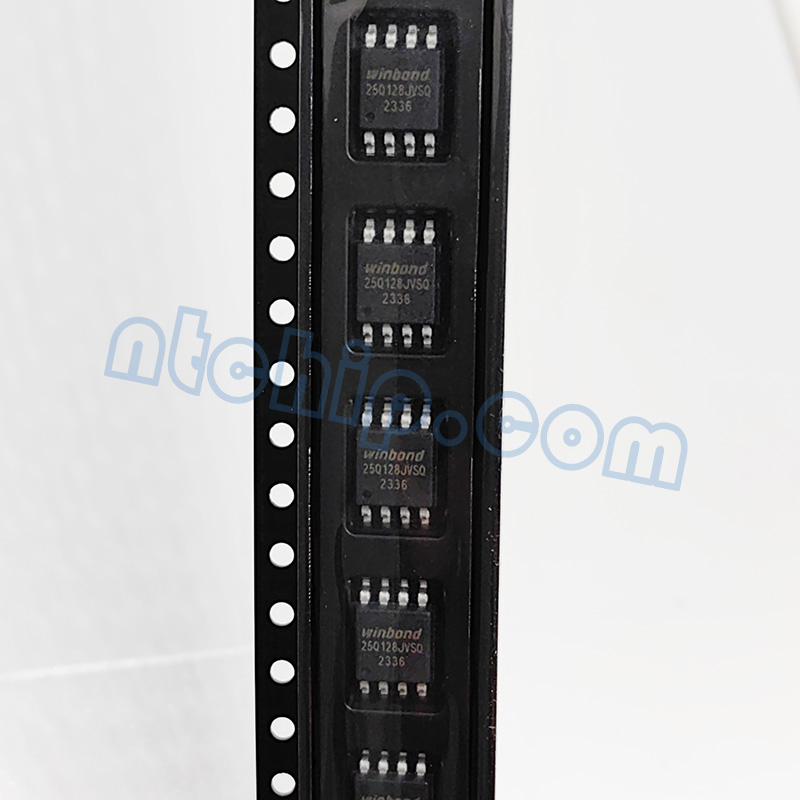

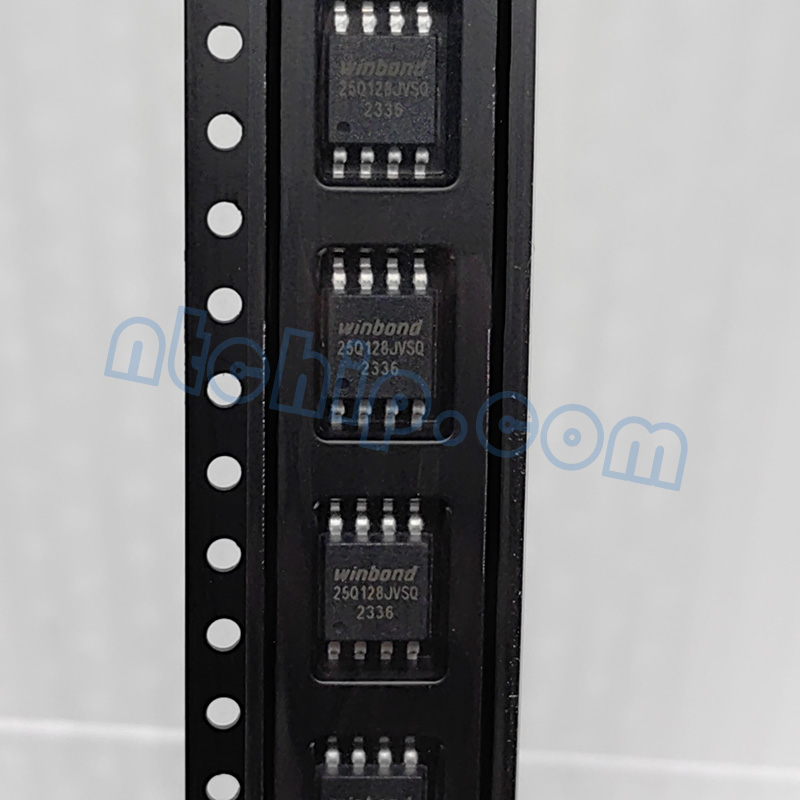

Winbond W25Q128JVSIQ Real Picture
Key Features of W25Q128JVSIQ
One of the prominent features of this chip is its support for the standard SPI, Dual SPI, and Quad SPI operation. This feature allows developers to use the chip in a variety of applications, ranging from simple to complex designs. Additionally, this chip boasts a high clock frequency of up to 133MHz, ensuring fast and efficient data transfer.
Specifications and Performance
In terms of its technical specs, the W25Q128JVSIQ provides 3V power supply with dual and quad I/O, making it suitable for high-speed read and write operations. With its low power consumption, it is also an ideal choice for battery-powered devices. The chip's performance is further enhanced by its uniform 4K-byte sectors and 32K-byte / 64K-byte blocks feature. This allows flexible erase capabilities and efficient memory allocation.
Applications of W25Q128JVSIQ
The W25Q128JVSIQ is a 128M-bit (16M-byte) serial Flash memory chip from Winbond, which operates on a 2.7V to 3.6V power supply. It's part of the W25Q series, known for its high performance and reliability in storing non-volatile data.
The W25Q128JVSIQ is designed to cater to a wide range of applications. It is most commonly used in mobile devices, digital cameras, home entertainment systems, and many other digital electronic devices. Its rich features also make it suitable for more complex applications, such as data center storage systems and industrial automation systems.
Applications Examples
This type of Flash memory device is used in applications where large amounts of data need to be stored and accessed quickly and reliably without the need for constant power. Here are some application examples:
Data Storage: Used in devices that require significant firmware or software storage, such as set-top boxes, DVD players, routers, modems etc.
Code Shadowing: In embedded systems where code shadowing is required; this involves copying code from slower storage media into faster flash memory at startup so it can be executed more quickly by the microcontroller or processor.
Solid State Drives (SSDs): As part of an array within SSDs due to their fast read/write capabilities and reliability over time without power.
Portable Devices: Ideal for portable electronics like digital cameras or gaming devices because they offer substantial storage capacity with minimal power consumption.
IoT Devices: IoT gadgets often use these chips for logging data collected by sensors before sending it off to servers or cloud services when network connectivity is available.
Mobile Applications: The W25Q128JVSIQ could also find use in mobile applications requiring external flash memories such as phones or tablets needing additional space for system updates or user data backup.
Embedded Systems that require frequent program updates over SPI interface; these include industrial controllers, smart meters etc.
Automotive Electronics may utilize this type of flash memory for storing maps and multimedia content within navigation systems or infotainment units.
These are just a few examples; serial Flash memories like the W25Q128JVSIQ have broad utility across many sectors due to their flexibility and features like low-power operation, durability against environmental factors (like shock/vibration), long-term availability/data retention characteristics - making them suitable components wherever persistent storage is needed.
Package Details
The W25Q128JVSIQ is available in an 8-pin SOIC package, making it compatible with a wide range of PCBs and hardware designs. The chip's small footprint also allows for compact and efficient designs, catering to modern needs for sleek and compact devices.
Summing Up
As a high-capacity, high-speed, and low-power flash memory chip, the W25Q128JVSIQ from Winbond Electronics is a suitable choice for a wide array of applications, offering reliable and efficient data storage and transfer. With its advanced features and compact form factor, developers and manufacturers can surely leverage this chip to design and deliver high-quality, efficient devices for their clients and users.
Winbond Electronics is the manufacturer of the W25Q128JVSIQ, which is available in stock at Nantian. The reference price for W25Q128JVSIQ can be found by referring to infineon tech or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the W25Q128JVSIQ datasheet PDF and pin diagram description that are available for download.
The W25Q128JVSIQ has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to W25Q128JVSIQ could be downloaded from Nantian's platform.
