What are the key features of the SI7414DN-T1-E3?

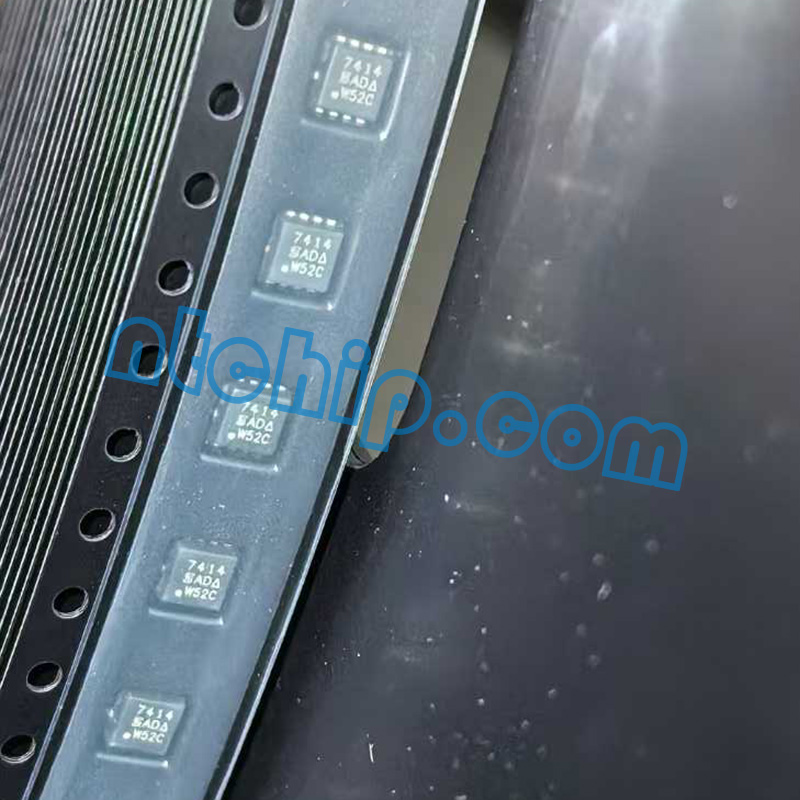

The SI7414DN-T1-E3 is an N-channel TrenchFET® power MOSFET designed for high-efficiency switching applications. It supports a 60 V drain-to-source voltage and delivers up to 5.6 A (Ta) of continuous current while maintaining low on-resistance for minimal conduction loss. Its compact PowerPAK® 1212-8 surface-mount package enhances thermal performance and saves board space. Additionally, it is optimized for PWM (pulse-width modulation) applications and provides reliable switching behavior in compact systems.
What makes TrenchFET® technology important in this device?
TrenchFET® technology uses a trench-structured MOSFET design that significantly reduces Rds(on), enabling lower heat generation and improved energy efficiency. This technology is ideal for power management circuits that require fast switching, high current capability, and minimized power loss.
What applications is the SI7414DN-T1-E3 commonly used for?
This MOSFET is widely used in DC-DC converters, power supply modules, and battery-powered systems where high efficiency and compact size are crucial. It is also suitable for load switching, motor control circuits, synchronous rectification, and other power management functions in consumer electronics, industrial equipment, and communication devices.
Why choose a PowerPAK® 1212-8 package?
The PowerPAK® 1212-8 package offers excellent thermal performance in a very small footprint, allowing designers to build high-density circuits without sacrificing heat dissipation. Its low profile and robust design make it ideal for portable and space-limited applications.
What benefits does the SI7414DN-T1-E3 provide for system designers?
System designers benefit from its combination of high efficiency, compact packaging, and reliable thermal behavior. The device helps reduce overall system power consumption, simplifies thermal design, and supports high-frequency switching, enabling more efficient and smaller power electronics solutions.
