Texas Instruments TPS5450DDAR

Manufacturer Part Number :	TPS5450DDAR
Manufacturer :	Texas Instruments
Description :	IC REG BUCK ADJ 5A 8SOPWRPAD
Datasheet :	TPS5450DDAR.PDF
EDA / CAD Models :	TPS5450DDAR by SnapEDA
Base Product Number :	TPS5450
Stock Condition :	In Stock 24805, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments TPS5450DDAR

In Stock: 24805 Qty:

RFQ Now Add to RFQ list

TI TPS5450DDAR

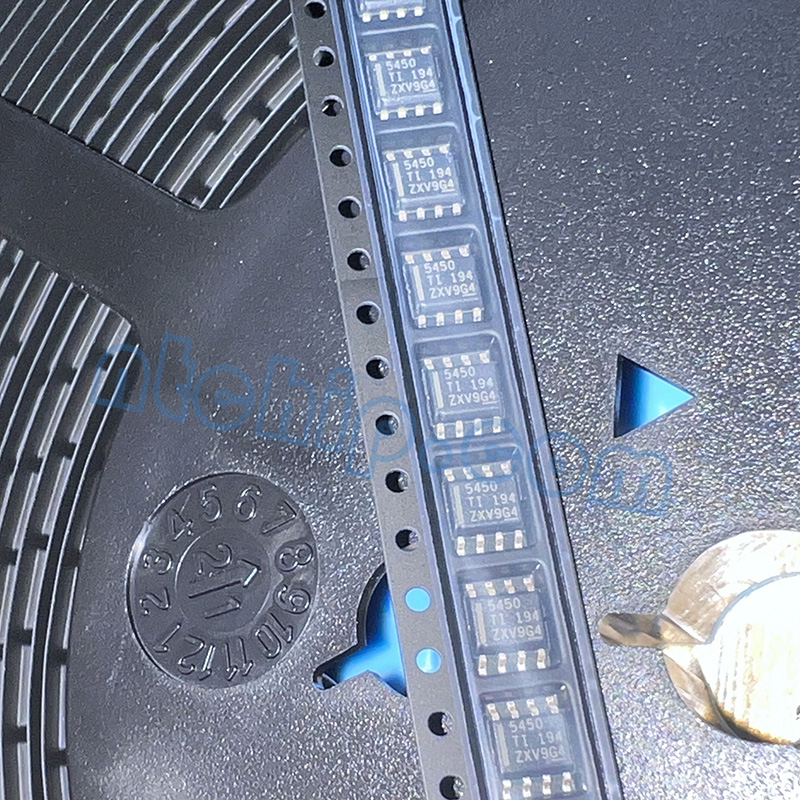

TI TPS5450DDAR Physical Picture

The Texas Instruments TPS5450DDAR is a versatile switching voltage regulator specifically designed for adjustable output voltage applications. This regulator supports an input voltage range from 5.5 V to 36 V and delivers an output current up to 5 A, making it suitable for a wide array of electronic devices. It employs a buck topology, enabling efficient step-down voltage conversion. The TPS5450DDAR operates at a switching frequency of 500 kHz and maintains a low quiescent current of 18 µA, enhancing its efficiency and suitability for battery-powered systems. This device is encapsulated in a SO-PowerPad-8 package and is compatible with surface-mount technology (SMD/SMT), facilitating ease of integration into various circuit designs.

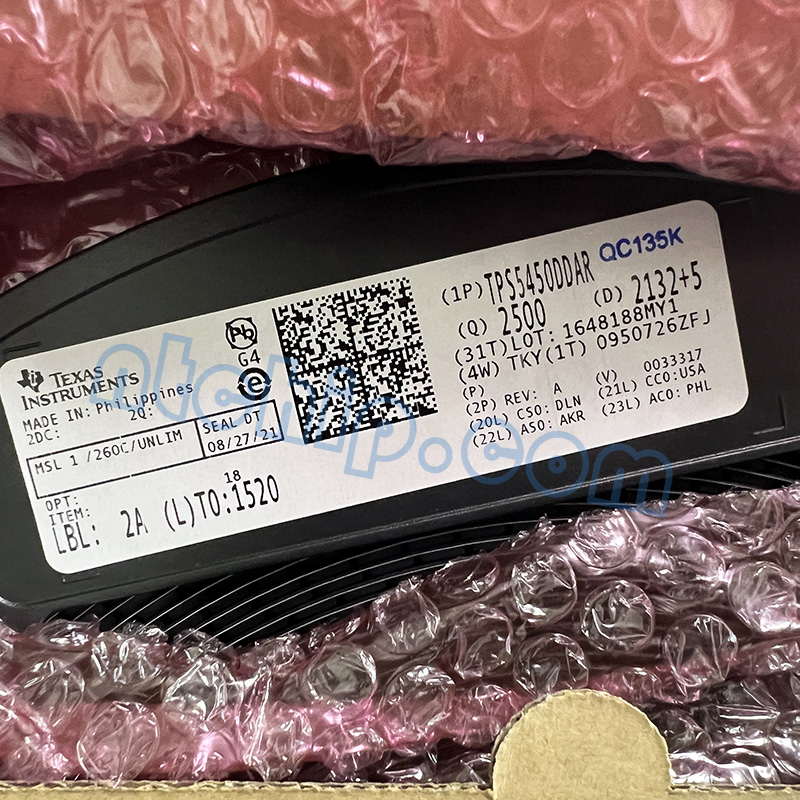

TPS5450DDAR package and Label

TPS5450DDAR pin configuration

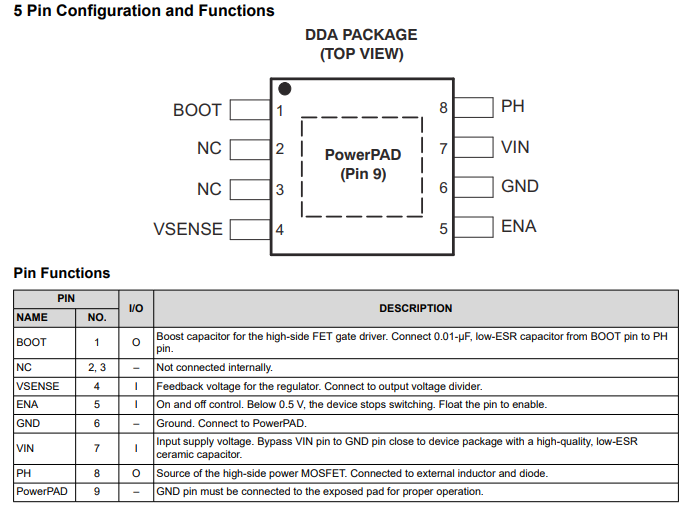

TPS5450DDAR pin configuration diagram is as follows:

TPS5450DDAR Pinout

Application

High density point-of-load regulators
LCD displays, plasma displays
Battery chargers
12-V and 24-V distributed power systems

Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Voltage - Input (Min):	5.5V
Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	1.221V
Voltage - Output (Max):	31.32V
Current - Output:	5A
Frequency - Switching:	500kHz
Synchronous Rectifier:	No
Operating Temperature:	-40～C ~ 125～C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO PowerPad
