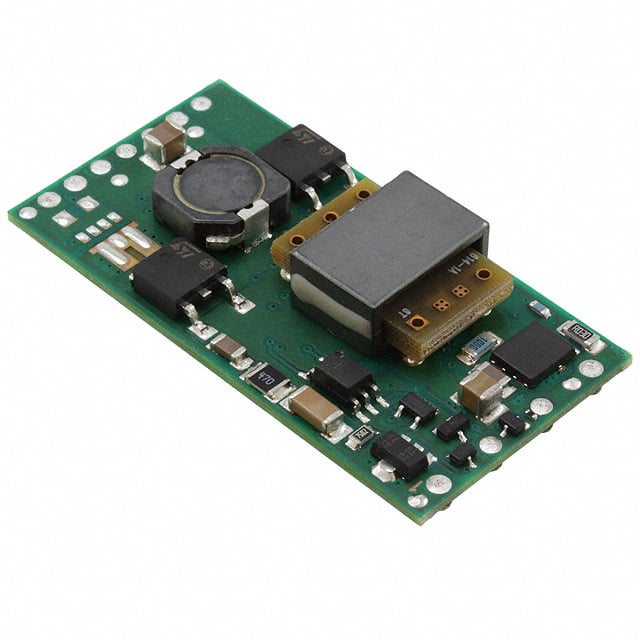

Texas Instruments PTB78560CAS

Manufacturer Part Number :	PTB78560CAS
Manufacturer :	Texas Instruments
Description :	DC/DC CONVERTER 9-13.2V 30W
Datasheet :	PTB78560CAS.PDF
EDA / CAD Models :	PTB78560CAS by SnapEDA
Base Product Number :	PTB78560
Stock Condition :	In Stock 12, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments PTB78560CAS

In Stock: 12 Qty:

RFQ Now Add to RFQ list

We can supply Texas Instruments part# PTB78560CAS, use the request quote form to request PTB78560CAS pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB78560CAS. The price and lead time for PTB78560CAS depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# PTB78560CAS. We look forward to doing business with you.

Series:	PTB78560
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	9 ~ 13.2 V
Voltage - Output 2:	-
Voltage - Output 3:	-
Current - Output (Max):	2.5A
Power (Watts) - Manufacture Series:	30W
Voltage - Isolation:	1.5kV (1500V)
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Mounting Type:	Surface Mount
Package / Case:	11-SMD Module
Size / Dimension:	2.04" L x 1.04" W x 0.40" H (51.9mm x 26.5mm x 10.3mm)
Operating Temperature:	-40～C ~ 85～C
Efficiency:	0.88
