The DP83822HRHBR, produced by Texas Instruments, is a highly robust 10/100 Mbps PHY (Physical Layer Device) designed to meet the demands of various industrial applications. This device is built to withstand challenging environmental conditions, boasting an operating temperature range of -40C to 125C. It also offers excellent protection features, including an ESD (Electrostatic Discharge) resistance of +/- 8KV contact discharge, EFT (Electrical Fast Transient) immunity of Class A at 4KV, and complies with CISPR 22 for both conducted and radiated emissions.

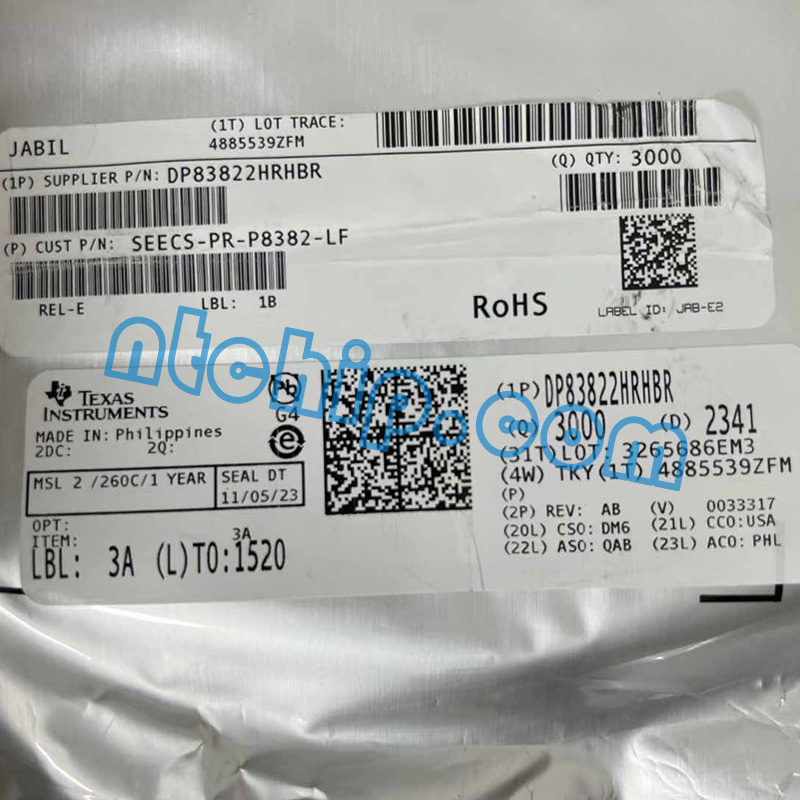

Texas Instruments DP83822HRHBR Original Reel Label
On the interface side, the DP83822HRHBR supports multiple MAC (Media Access Control) interfaces, including RGMII, RMII, and MII. It is compliant with IEEE 802.3u, supporting 100BASE-FX, 100BASE-TX, and 10BASE-Te. The device also offers flexible supply options with low power single supply options and available I/O voltages of 3.3V, 2.5V, and 1.8V. Power-saving features such as Energy Efficient Ethernet (EEE) IEEE 802.3az and WoL (Wake-on-LAN) support with magic packet detection are included, along with programmable energy savings modes. Other notable features include start of frame detect for IEEE 1588 time stamp and various diagnostic tools such as cable diagnostics, BIST (Built-in self-test), loopback, and rapid link-down detection.
Given its robustness and versatility, the DP83822HRHBR is ideal for a wide range of applications, including motor drives, factory automation, robotics and motion control, grid infrastructure, building automation, industrial Ethernet fieldbus, and real-time industrial Ethernet applications such as ProfiNET®.

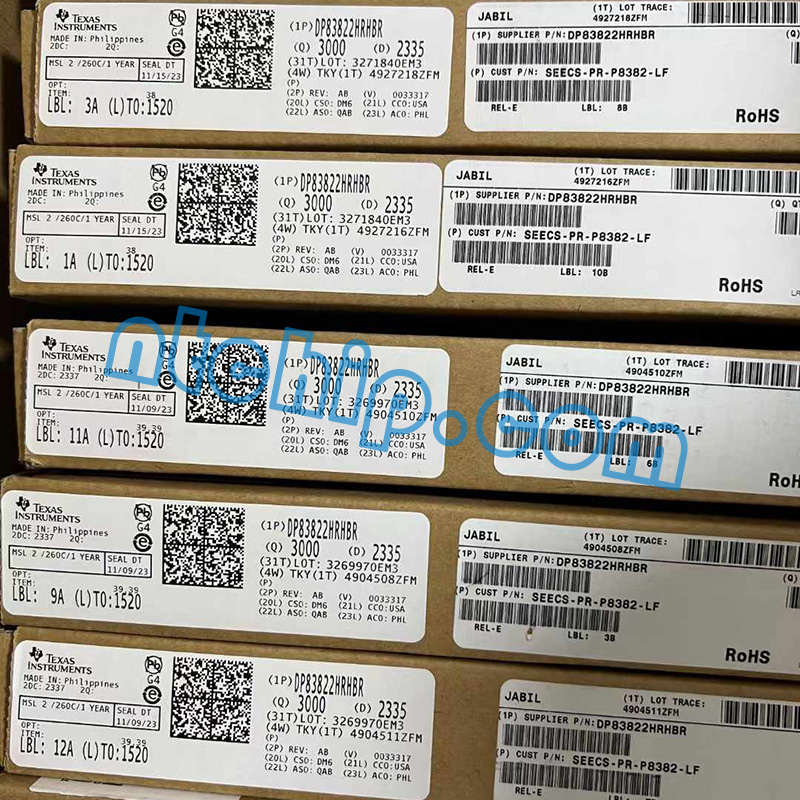

Texas Instruments DP83822HRHBR Package Genuine Label
Nantian Electronics, a professional Texas Instruments distributor, maintains a large stock of DP83822HRHBR devices and provides comprehensive support, including access to the DP83822HRHBR datasheet PDF, pin diagram instructions, and other relevant parameters for download.
