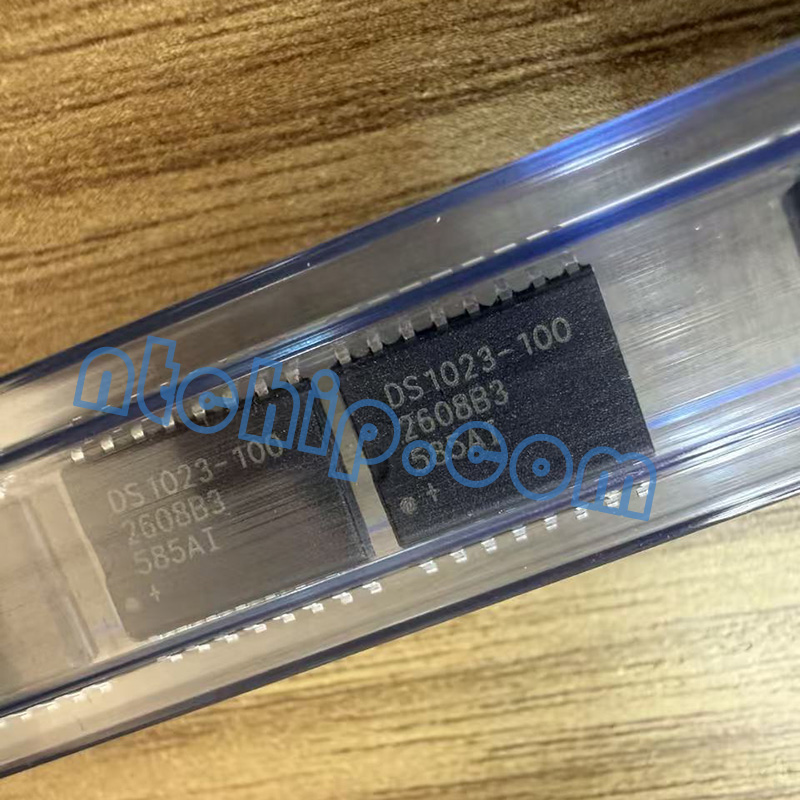

Q: What are the main features of the DS1023S-100+?
A: The DS1023S-100+ is a programmable digital delay line IC with 256 delay taps and a total programmable delay of up to approximately 255 ns. It supports selectable step sizes of 0.25 ns, 0.5 ns, 1 ns, 2 ns, and 5 ns, together with an on-chip reference delay and guaranteed monotonic operation. The device supports both parallel and serial programming and operates from a single 5 V supply. It can also be configured as a delay line, pulse-width modulator, or free-running oscillator.
Q: What is the DS1023S-100+ used for?
A: The DS1023S-100+ is mainly used for precise timing and signal-delay control in digital circuits. It can adjust clock timing, generate controlled pulse widths, delay clock signals by a full period or more, and provide timing functions in digital communication and control systems. Its programmable delay architecture also makes it useful for clock synchronization, pulse generation, and other applications where adjustable signal timing is required.
Q: Dose it have any Alternative manufacturer and part number?
A: Yes. Potential alternatives include related programmable delay-line devices such as the Analog Devices DS1020, DS1021, and DS1100 series, depending on the required delay range and programming method. However, these devices are not necessarily pin-to-pin replacements. When selecting an alternative, designers should compare total delay, tap resolution, number of taps, programming method, supply voltage, package, operating temperature, and timing characteristics to ensure compatibility with the target design.
Q: Is technical support available for this part?
A: Yes. Technical support is available for the DS1023S-100+, including datasheet information, pin configuration, serial or parallel programming, delay selection, timing configuration, and application guidance. Professional distributors can also assist with component selection, replacement evaluation, availability confirmation, and sourcing requirements for prototype development and mass production.
