What is the CD4051BQPWRG4Q1?

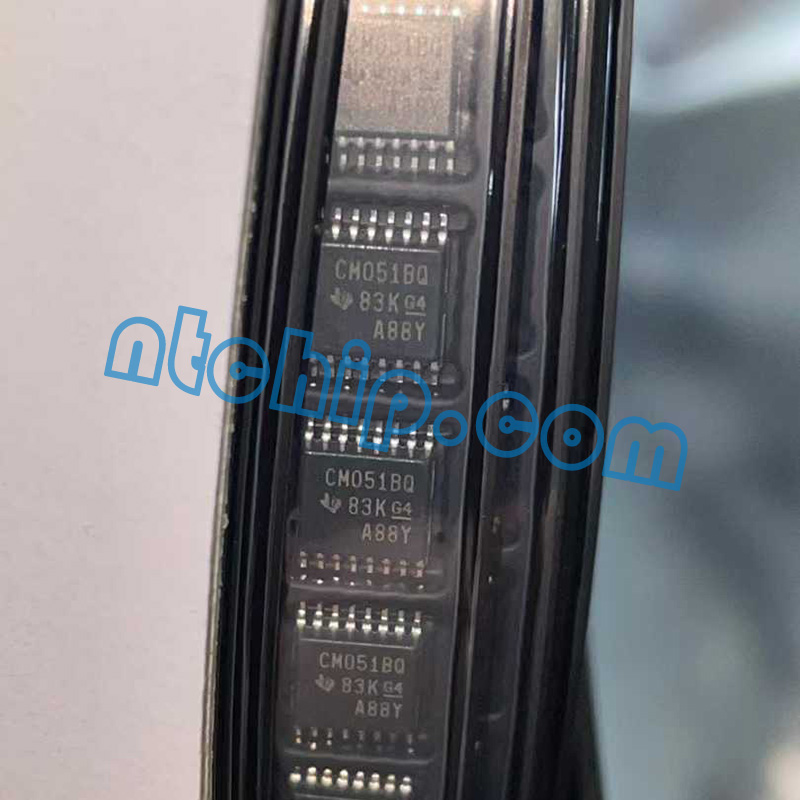

The CD4051BQPWRG4Q1 is an automotive-qualified 8-channel analog multiplexer/demultiplexer from Texas Instruments. It allows one of eight analog or digital signals to be selected and routed through a single output channel, making it useful for signal routing and data acquisition applications.
What are the key features of this device?
Key features include an 8:1 switching configuration, low on-resistance of around 240 Ω, wide operating voltage capability, and a compact 16-TSSOP package. Its design ensures stable switching performance across varying conditions, especially in automotive systems that require high reliability.
What is the CD4051BQPWRG4Q1 used for?
This part is commonly used in systems that need to manage multiple sensor or control signals, such as automotive ECUs, industrial monitoring equipment, instrumentation, and low-power signal routing circuits. It helps reduce wiring complexity and improves system efficiency by allowing multiple signals to share a single input path.
Can it switch both analog and digital signals?
Yes, the CD4051BQPWRG4Q1 is designed to handle both analog and digital signals, making it versatile for mixed-signal applications.
Why is the “Q1” suffix important?
The “Q1” suffix indicates that the device is AEC-Q100 qualified, meaning it meets the rigorous standards required for automotive use, including enhanced reliability and temperature endurance.
Is it suitable for low-voltage applications?
Yes, the multiplexer supports a wide supply voltage range, allowing it to operate effectively in both low-voltage and higher-voltage systems, depending on application requirements.
Where can I get datasheets and pin-out details?
Distributors like Nantian Electronics provide the full datasheet, pin diagrams, and technical resources for download, along with inventory and pricing support.
