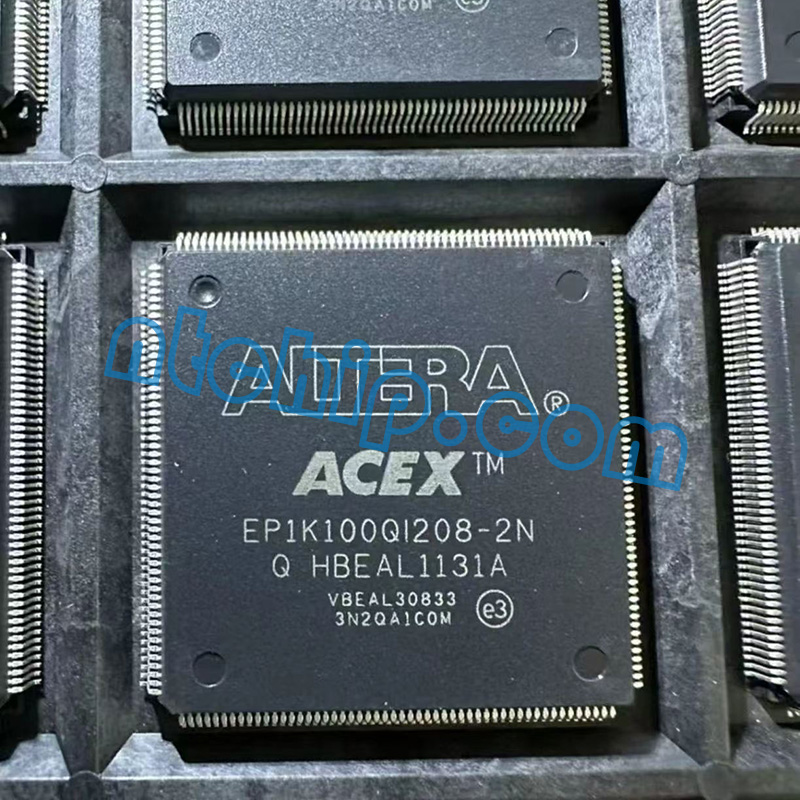

Q: What are the main features of the Altera EP1K100QI208-2N?
A: The EP1K100QI208-2N is an ACEX-1K field programmable gate array designed for configurable digital logic applications. It provides 4,992 logic elements, 49,152 bits of embedded RAM, and 147 user input and output pins. Its features include programmable logic, flexible interconnect routing, dedicated arithmetic carry chains, clock management functions, and JTAG boundary scan support. The device uses a 2.5V core supply and is housed in a 208-pin fine-pitch quad flat package. Its programmable architecture allows engineers to adapt hardware functions to specific design requirements.
Q: What is the EP1K100QI208-2N used for?
A: This FPGA is used to implement custom digital logic, data processing, timing control, and hardware interfaces. Typical applications include industrial control equipment, communication systems, network devices, embedded systems, and legacy electronic platforms. Its programmable logic and integrated memory support functions such as counters, state machines, data buffering, and digital signal control. It is particularly useful when maintaining or repairing existing equipment designed around the ACEX-1K family.
Q: Are there alternative manufacturers and part numbers for the EP1K100QI208-2N?
A: Potential alternatives include selected Xilinx Spartan FPGA devices, such as the XC3S100E family, and suitable Lattice FPGA products. However, these are not direct pin to pin replacements and may require hardware redesign, logic redevelopment, and different programming tools. The related Altera EP1K100QI208-2 may also be worth evaluating, but compatibility must be confirmed. Before selecting a substitute, compare the package, pinout, logic capacity, timing, voltage requirements, configuration method, and development tool compatibility.
Q: Is technical support available for the EP1K100QI208-2N?
A: Yes. Nantian Electronics can assist with product selection, technical parameter information, datasheet and pin diagram guidance, availability inquiries, and purchasing support. Since this is an older FPGA family, verify the component's condition, programming requirements, and compatibility with the original design before purchasing or replacing it.
