Introduction to STV0900BAC
The STV0900BAC is an advanced dual-channel satellite demodulator component manufactured by STMicroelectronics. It is designed specifically for the reception of broadcast signals from satellite transmissions. This device supports a wide range of digital video broadcasting standards, making it an essential component for set-top boxes, satellite receivers, and personal video recorders. The STV0900BAC stands out for its ability to decode multiple streams simultaneously, offering high efficiency and performance in digital satellite TV systems.

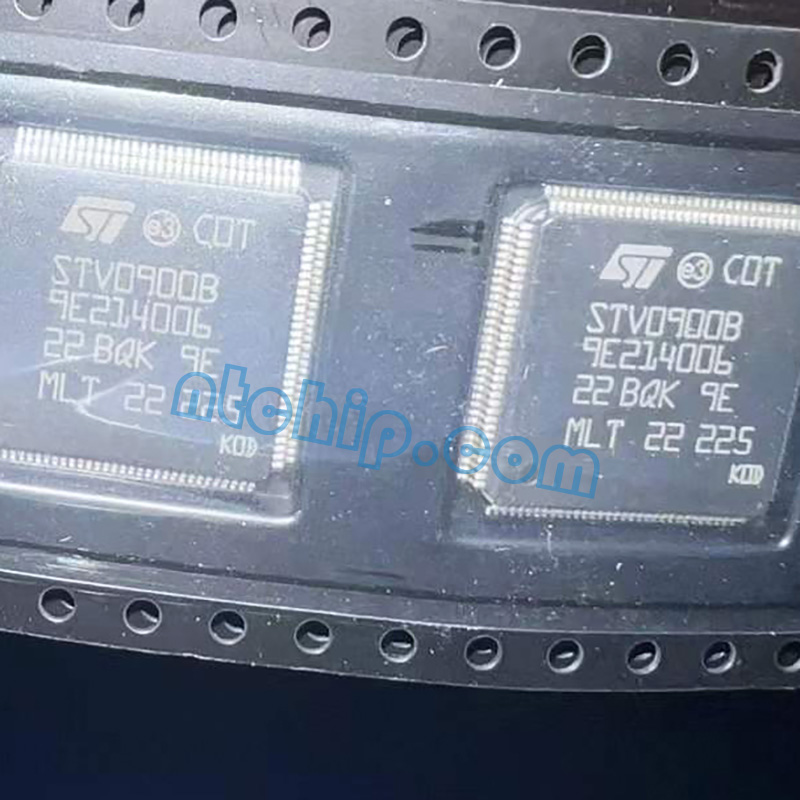

STV0900BAC
Key Features
The STV0900BAC is packed with features that enhance its performance and reliability in satellite signal reception. These include dual-channel demodulation, which allows for the simultaneous decoding of two channels, increasing the efficiency of signal processing. The device supports DVB-S, DVB-S2, and DVB-S2X standards, covering a broad spectrum of satellite broadcasting formats. Additionally, it offers low noise figure and high sensitivity, which ensures superior signal quality even under challenging conditions. Its advanced error correction capabilities further improve the reliability of received signals.
Applications
Given its capabilities, the STV0900BAC is used in a variety of applications:
High-definition satellite set-top boxes
Personal video recorders
Professional broadcasting equipment
Multi-tuner digital TV platforms
Home entertainment systems
Advantages
The STV0900BAC offers several advantages to manufacturers and end-users. Its dual demodulator design allows for flexible and efficient multi-channel reception, enabling viewers to watch one channel while recording another. The support for the latest digital broadcasting standards ensures compatibility with a wide range of satellite services worldwide. Additionally, the high sensitivity and advanced error correction features ensure excellent signal quality, reducing the likelihood of picture degradation or channel loss.
Technical Specifications
The technical specifications of the STV0900BAC reflect its advanced design:
Demodulation: Dual DVB-S, DVB-S2, and DVB-S2X
Symbol Rate: Up to 45 Msps for DVB-S2X
Error Correction: Advanced FEC (Forward Error Correction)
Interfaces: I2C for programming and control, DiSEqC 2.x compliant
Package: PBGA
Operating Voltage: 3.3V
Conclusion
The STV0900BAC by STMicroelectronics is a cutting-edge solution for digital satellite broadcast reception, ideal for the next generation of home and professional entertainment systems. Its support for multiple standards, combined with high performance and flexibility, makes it a key component in the development of advanced satellite broadcasting devices, ensuring high-quality reception and user satisfaction.

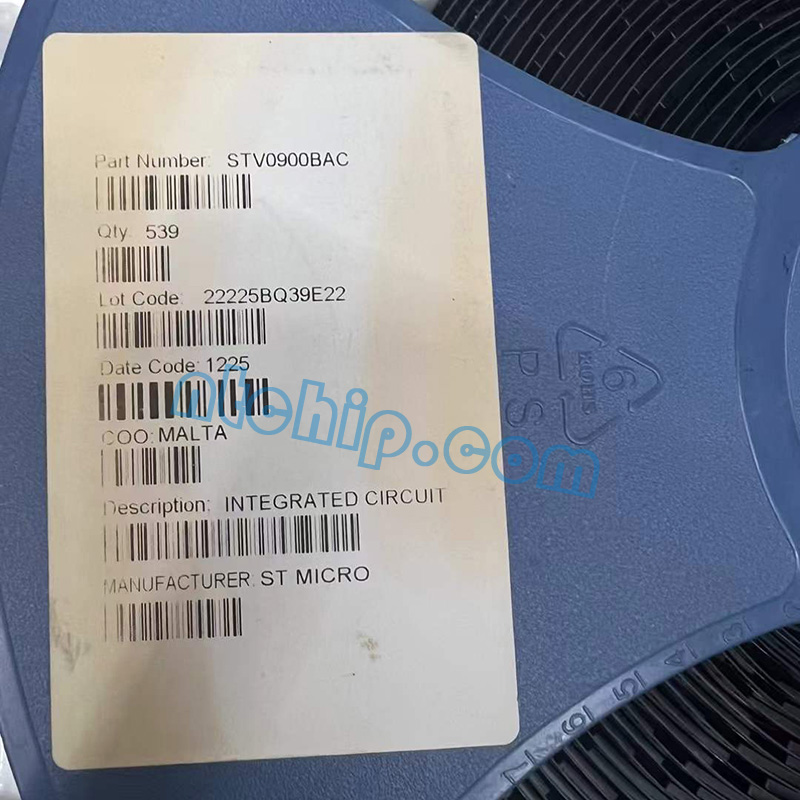

Original STV0900BAC Label in Stock
STMicroelectronics is the manufacturer of the STV0900BAC, which is available in stock at Nantian. The reference price for STV0900BAC can be found by referring to STMicroelectronics or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the STV0900BAC datasheet PDF and pin diagram description that are available for download.
The STV0900BAC has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to STV0900BAC could be downloaded from Nantian's platform.
