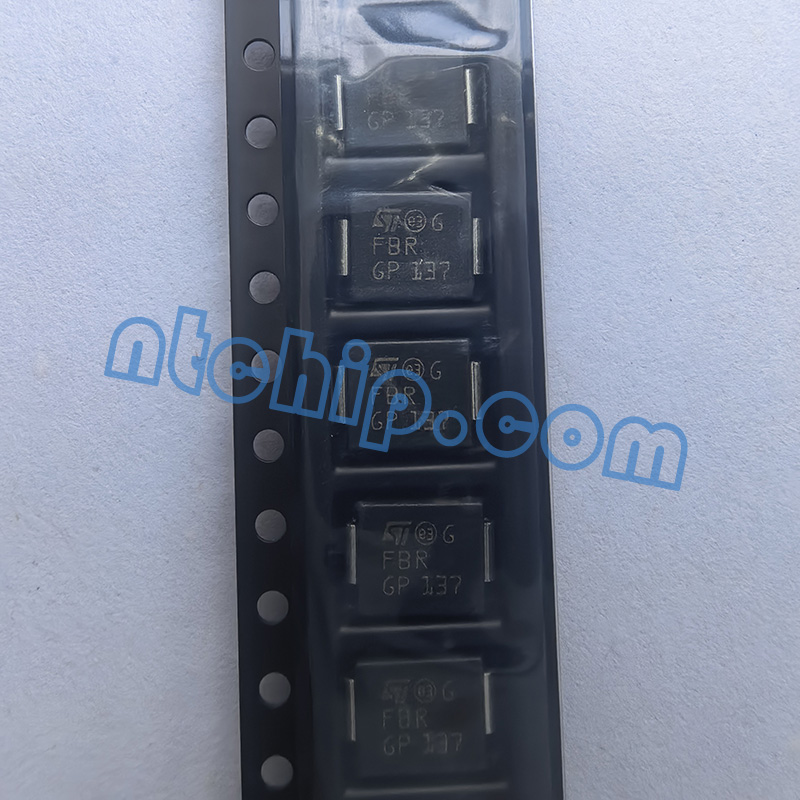

Q1: What are the key features of the STMicroelectronics SMCJ30CA-TR?
A: The SMCJ30CA-TR is a bidirectional transient voltage suppression (TVS) diode designed to protect electronic circuits against high-energy voltage transients. It features a maximum clamping voltage of 64.3V and can withstand peak pulse currents up to 156A (8/20µs), providing fast and effective surge protection. Packaged in the industry-standard SMC surface-mount package, the device offers excellent reliability, fast response time, and high surge handling capability. Its bidirectional design makes it suitable for protecting circuits exposed to both positive and negative transient voltages.
Q2: What is the SMCJ30CA-TR used for?
A: The SMCJ30CA-TR is widely used to protect power supplies, industrial automation equipment, telecommunications systems, networking devices, automotive electronics, security systems, consumer electronics, and communication interfaces from electrostatic discharge (ESD), electrical fast transients (EFT), lightning-induced surges, and other transient overvoltage events. It is especially suitable for protecting AC signal lines, power rails, and general-purpose electronic circuits where bidirectional surge protection is required.
Q3: Does the SMCJ30CA-TR have alternative manufacturers and part numbers?
A: Yes. Comparable bidirectional TVS diodes are available from manufacturers such as Littelfuse, Vishay, onsemi, Bourns, and Diodes Incorporated. Suitable alternatives include Littelfuse SMCJ30CA, Vishay SMCJ30CA-E3/57T, onsemi SMCJ30CA, Bourns SMCJ30CA, and Diodes Incorporated SMCJ30CA-13-F. Before selecting an alternative, designers should compare the stand-off voltage, breakdown voltage, clamping voltage, peak pulse current rating, power dissipation capability, package type, and surge protection characteristics to ensure compatibility with the application requirements.
Q4: Is technical support available for the SMCJ30CA-TR?
A: Yes. STMicroelectronics provides comprehensive technical support through official datasheets, application notes, design resources, and engineering documentation. As a professional STMicroelectronics supplier and distributor, Nantian Electronics also provides product datasheets (PDF), pin diagrams, inventory information, quotation services, and procurement assistance. Customers are welcome to contact the sales team for technical inquiries, product selection guidance, and ordering support.
