The TQP3M9037 device by Qorvo is a high-performance, ultra-low noise amplifier offering a wide operational bandwidth of 0.7-6.0 GHz. It stands out for its extremely low noise figure of just 0.4 dB at 1.95 GHz, making it an excellent choice for applications requiring clear, noise-free operation. Its high gain (20 dB at 1.95 GHz) combined with high linearity (+35 dBm Output IP3) ensures a robust signal strength ideal for a range of demanding wireless applications.
Qorvo TQP3M9037 Functional Block Diagram：
The TQP3M9037 is also noted for its integrated features, including on-chip matching for straightforward 50 Ohm In/Out, an active bias, and a shutdown control pin for enhanced power management. Its high input power ruggedness of +22 dBm CW, unconditional stability, and adaptable +3V to +5V supply without the need for -Vgg further underscores its operational resilience. Given its comprehensive attributes, it serves well in applications such as repeaters, mobile infrastructure, and various GSM, CDMA, WCDMA, and LTE systems, as well as general-purpose wireless and TDD or FDD systems.

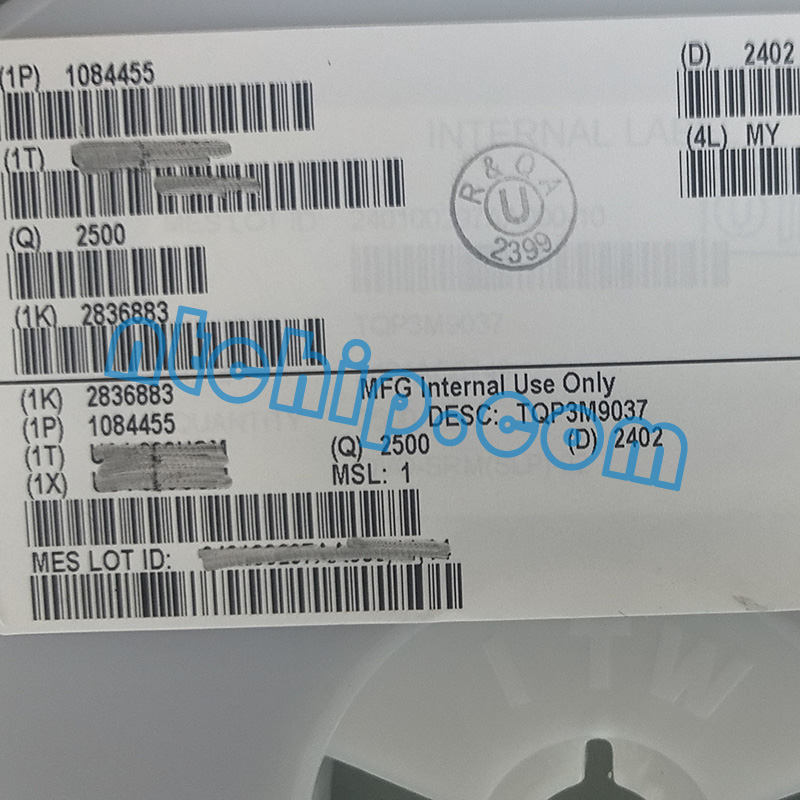

Qorvo TQP3M9037 Original Reel Label
Nantian Electronics, a professional Qorvo distributor, maintains a substantial inventory of TQP3M9037 units and provides detailed datasheets and pin diagram instructions for comprehensive support.
