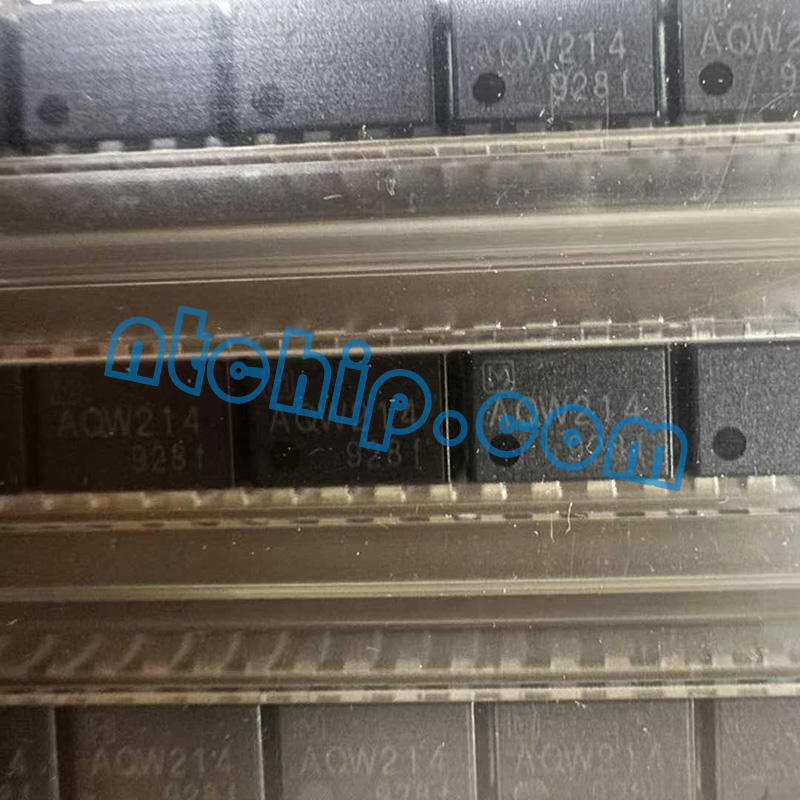

The Panasonic AQW214 is a solid-state relay designed to provide reliable switching performance in compact electronic systems. It features a dual SPST-NO (1 Form A × 2) configuration in a space-saving 8-pin DIP package, making it suitable for applications where board space is limited. With dimensions of just 6.4 mm × 9.78 mm × 3.9 mm, this relay delivers efficient signal control while minimizing the footprint on through-hole PCBs. It supports both independent channel use and 2 Form A operation, offering flexibility for different circuit designs. The device is optimized for handling low-level analog signals and ensures stable operation thanks to high sensitivity, fast response characteristics, and an off-state leakage current of 1 µA maximum.
Engineered for diverse voltage needs, the AQW214 provides a wide load voltage range from 60 V to 600 V, making it well-suited for measurement equipment, communication systems, and other precision electronics. Its solid-state construction enhances durability by eliminating mechanical wear, enabling longer service life and silent switching.
As a professional Panasonic distributor, Nantian Electronics has AQW214 parts available in stock and offers datasheets, technical parameters, and pin configuration resources. Customers are welcome to contact us for competitive quotations, professional support, and convenient ordering services.
