The Panasonic Electronic Components ERJ-8BWFR100V is a current sensing resistor engineered with advanced features to ensure precision and durability. It stands out for its thick film resistive element and special electrode structure, both of which help to achieve high precision and low resistance. Its small size and light weight allow for ease of integration into a diverse array of electronic circuits without adding significant bulk or weight. This makes it an ideal choice for space-constrained applications.
Uniquely designed with a double-sided resistive elements structure, the ERJ-8BWFR100V aims to suppress temperature rise thereby enabling high-power functionality. It is suitable for both reflow and flow soldering, demonstrating high versatility in various assembly processes. With a low Temperature Coefficient of Resistance (TCR) and availability of low resistance values, this resistor ensures reliable performance across its service life. It is compliant with major international standards including IEC 60115-8, JIS C 5201-8, and JEITA RC-2144, and is AEC-Q200 qualified, underscoring its high quality and reliability.

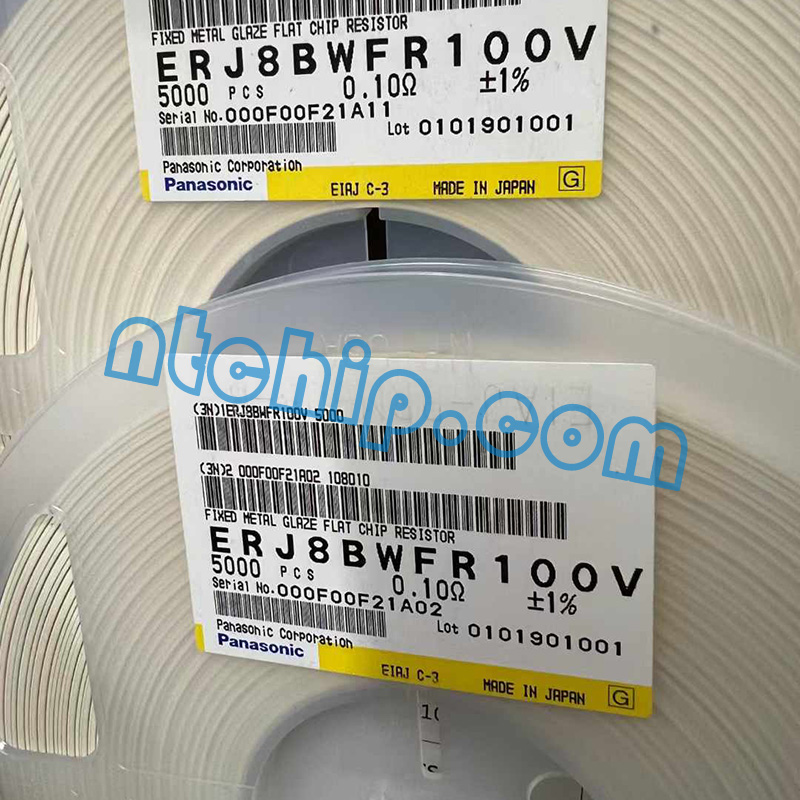

Panasonic Electronic Components ERJ-8BWFR100V Original Reel Label
As an accredited Panasonic Electronic Components distributor, Nantian Electronics offers a significant stock of the ERJ-8BWFR100V. To support a proper understanding and application of this product, comprehensive datasheets, product parameters, and pin diagram instructions are available for download.
