ON Semiconductor ESD8004MUTAG

Manufacturer Part Number :	ESD8004MUTAG
Manufacturer :	ON Semiconductor
Description :	TVS DIODE 3.3VWM 8VC 10-DFN 16A
Datasheet :	ESD8004MUTAG.PDF
EDA / CAD Models :	ESD8004MUTAG by SnapEDA
Base Product Number :	ESD8004
Stock Condition :	In Stock 4635, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

ON Semiconductor ESD8004MUTAG

In Stock: 4635 Qty:

RFQ Now Add to RFQ list

The ESD8004 is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0/3.1.

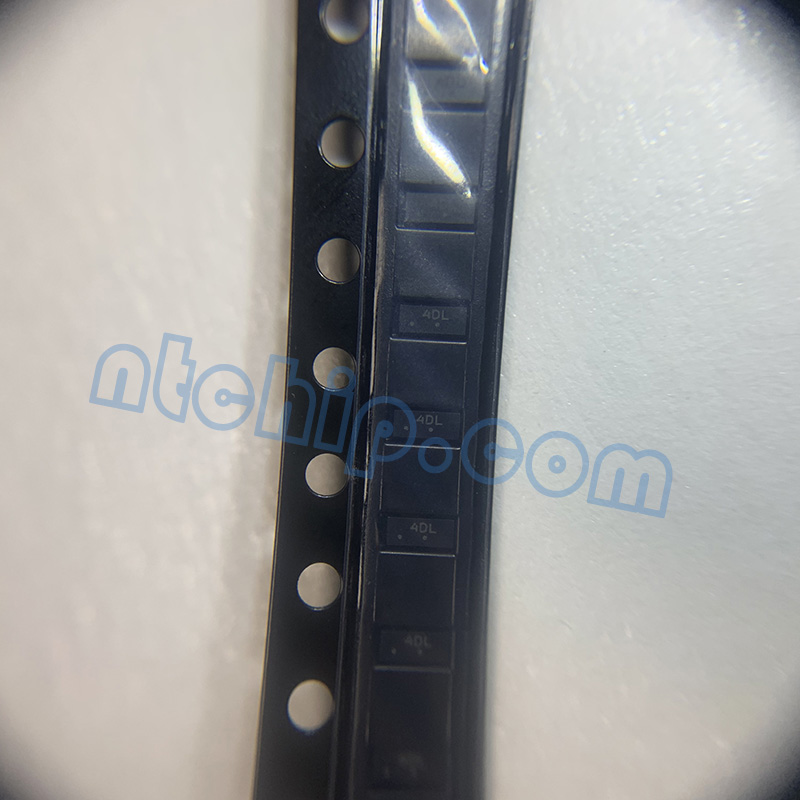

ESD8004MUTAG

As a professional ON Semiconductor distributor, Nantian Electronic has a large number of ESD8004MUTAG in stock. We also provide ESD8004MUTAG parameters, ESD8004MUTAG Datasheet PDF and pin diagram instructions for download.

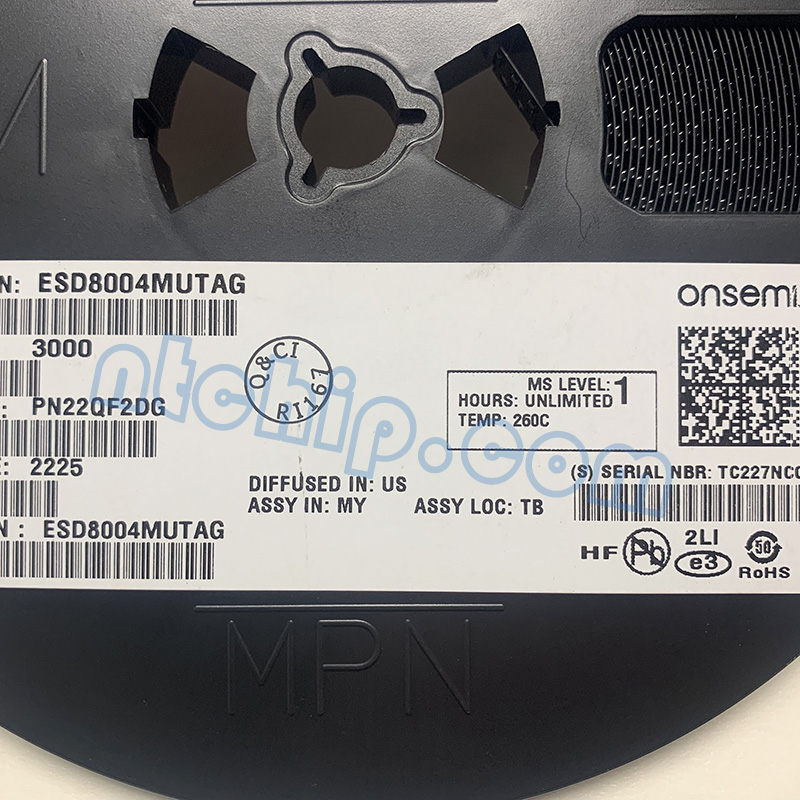

ESD8004MUTAG Package

Dimension

The size information of ESD8004MUTAG is as follows:

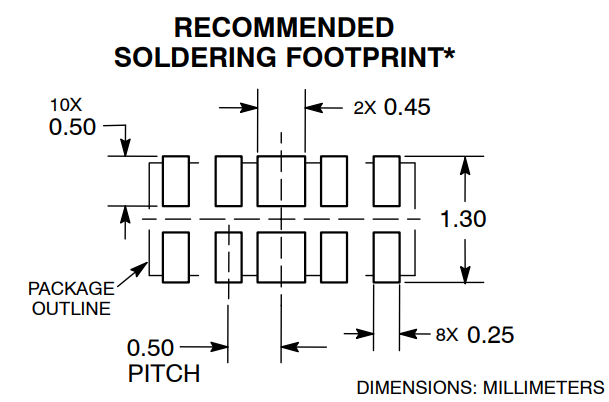

ESD8004MUTAG dimension

ESD8004MUTAG Dimension

Features

Low Capacitance (0.35 pF Max, I/O to GND)
Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)
Low ESD Clamping Voltage
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

USB 3.0/3.1
eSATA
DisplayPort

Series:	Automotive, AEC-Q101
Type:	Zener
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	3.3V (Max)
Voltage - Breakdown (Min):	5.5V
Voltage - Clamping (Max) @ Ipp:	8V (Typ)
Current - Peak Pulse (10/1000米s):	16A
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	0.3pF @ 1MHz
Operating Temperature:	-55～C ~ 125～C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN
Supplier Device Package:	10-UDFN (2.5x1)
