The 2SA1709T-EPN-AN, produced by ON Semiconductor, is a high-performance Bipolar Transistor. With specialization in controlling a flow of electrical current across a device, this PNP/NPN Single NM transistor is capable of handling high voltage and large current operations. This superior component has a substantial negative voltage capacity of 100V and can carry a considerable current up to negative 2A. Its low VCE(sat) rating ensures efficient operation under various conditions, providing a reliable solution for a wide range of applications and circuits.

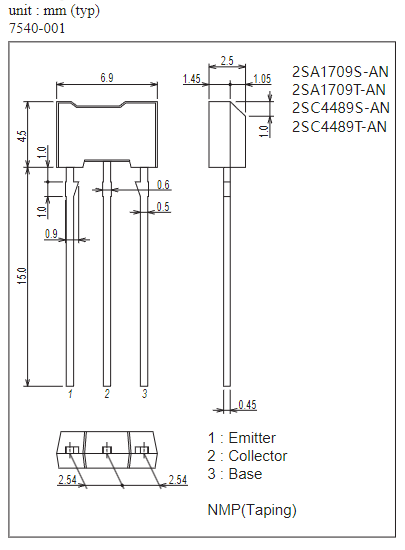

ON Semiconductor 2SA1709T-EPN-AN Package Dimensions:
This transistor has been constructed with the advanced FBET and MBIT processes. As these processes enhance the transistor's features, they contribute to a high breakdown voltage capability and a significant current capacity. In addition, they push its performance a step further by ensuring a fast switching speed, a critical attribute when quick response times are required. The fast switching speed coupled with its large current capacity allows the 2SA1709T-EPN-AN to be an excellent choice for robust operation and high-speed control circuits.
ON Semiconductor 2SA1709T-EPN-AN Package Original Label
As an esteemed distributor of ON Semiconductor products, Nantian Electronics maintains a substantial inventory of the 2SA1709T-EPN-AN. To facilitate the integration of this advanced component into your projects, they provide valuable resources like the 2SA1709T-EPN-AN datasheet PDF and pin diagram instructions for download. These resources empower engineers and developers to understand, implement, and optimize this semiconductor with simplicity and ease.
