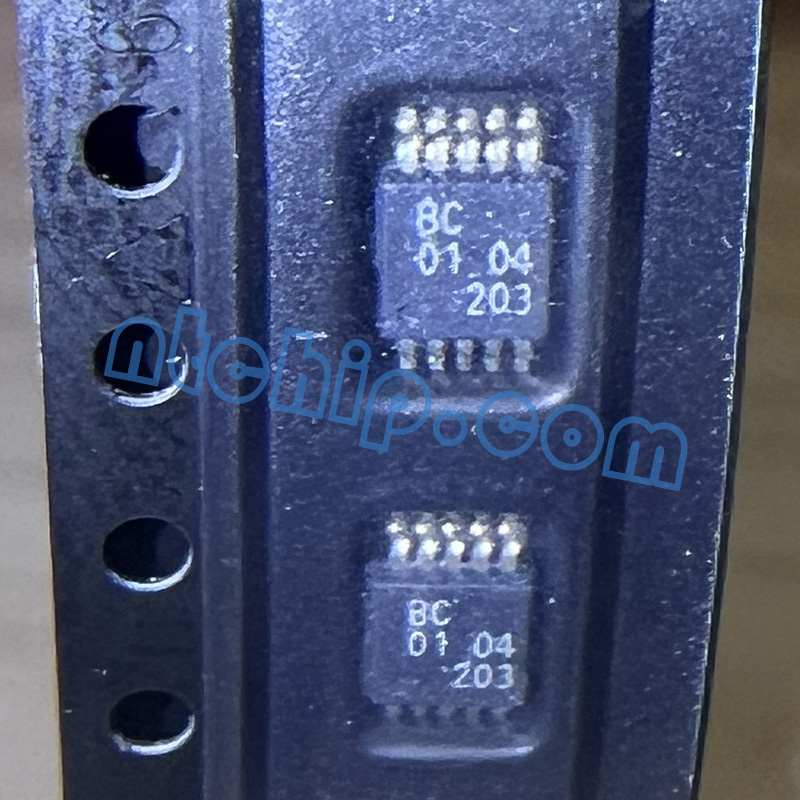

The Nexperia 74AVC1T1004DP is a versatile single-bit, dual-supply voltage level translator designed to facilitate smooth communication between devices operating at different voltage levels. With a wide supply voltage range of 0.8 V to 3.6 V for both input (VCC(A)) and output (VCC(B)), this component ensures compatibility across a broad spectrum of applications. Its compliance with multiple JEDEC standards, including JESD8-12, JESD8-11, and JESD8-B, guarantees reliable performance under industry-recognized specifications. The device also boasts robust ESD protection, exceeding 2 kV for Human Body Model (HBM) and 1 kV for Charged Device Model (CDM), making it highly durable in sensitive environments.
Engineered for speed and efficiency, the 74AVC1T1004DP supports data rates of up to 380 Mbit/s at higher voltage translations (≥1.8 V to 3.3 V), along with stable performance across lower voltage ranges, such as 100 Mbit/s for 1.1 V to 1.2 V. Its latch-up immunity of over 100 mA, coupled with an operating temperature range of -40 °C to +125 °C, ensures dependable operation in demanding conditions. Additionally, with the ability to tolerate input voltages up to 3.6 V, this device is an excellent choice for modern low-power, high-speed designs. Nantian Electronics offers a comprehensive stock of 74AVC1T1004DP components, along with datasheets and technical support, ensuring seamless integration into your projects.
