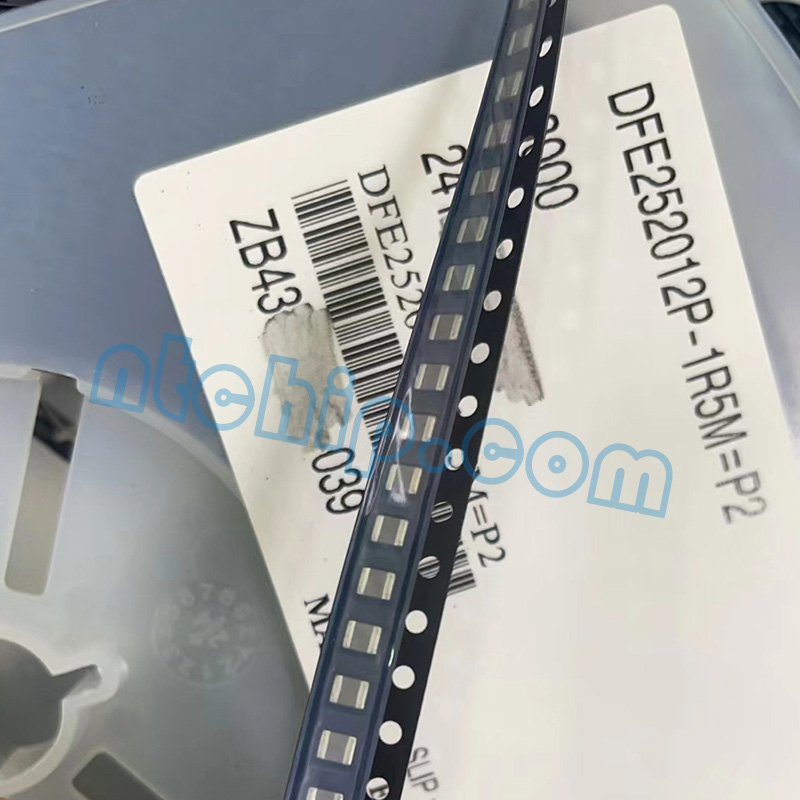

The Murata Electronics DFE252012P-1R5M=P2 is a compact and efficient drum core inductor designed for reliable performance in various electronic applications. Featuring a miniature 2520 footprint (2.5mm×2.0mm) and a low profile of up to 1.2mm height, this inductor is ideal for space-constrained PCB designs where size and efficiency are critical. It offers an inductance of 1.5 µH with a tolerance of ±20%, suitable for filtering and energy storage in power supply circuits.
Constructed with magnetic iron powder, the DFE252012P-1R5M=P2 ensures robust capability for handling large currents up to 2.6A, with a saturation current rating of 3.5A. The use of flat wire technology minimizes DC resistance (DCR) to as low as 60mOhm, enhancing energy efficiency and reducing power losses. Additionally, it features magnetic shielding to minimize audible core noise, making it suitable for noise-sensitive applications. With an operating temperature range from -40°C to 125°C and reflow solder compatibility, this inductor meets the demanding requirements of automotive, industrial, and consumer electronics applications.
As a professional Murata distributor, Nantian Electronics has a large number of DFE252012P-1R5M=P2 in stock. We also provide DFE252012P-1R5M=P2 parameters, DFE252012P-1R5M=P2 Datasheet PDF and pin diagram instructions for download.
Features
Miniature size: 2520 footprint (2.5mm×2.0mm) and low
profile(1.2mm Max. height)
The use of magnetic iron powder ensure capability for
large current.
The use of Flat wire for Low DC resistance.
Magnetically shielded, low audible core noise.
Reflow solderable.
Operating temperature : -40～+125°C
