Overview of the PM600HSA120 IGBT Module
The PM600HSA120 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module from MITSUBISHI, a renowned manufacturer of power semiconductor devices. This module is designed for power electronics applications that require efficient and reliable switching of high currents and voltages. The PM600HSA120 features a half-phase inverter configuration, making it suitable for use in various power conversion systems, such as motor drives, uninterruptible power supplies (UPS), and renewable energy inverters.

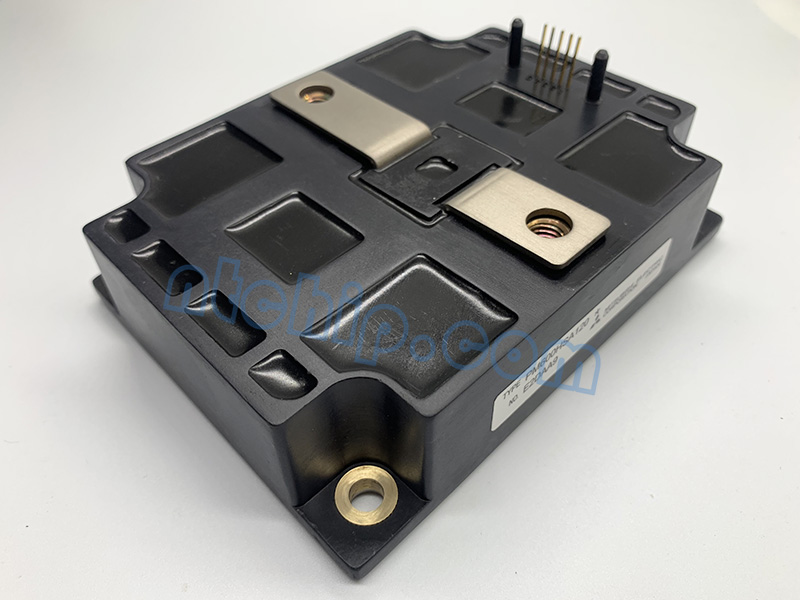

PM600HSA120 Pinout
As a professional MITSUBISHI distributor, Nantian Electronic has a large number of PM600HSA120 in stock. We also provide PM600HSA120 parameters, PM600HSA120 Datasheet PDF and pin diagram instructions for download.
Key Specifications and Ratings
The PM600HSA120 offers impressive specifications that highlight its high-performance capabilities. With a maximum voltage rating of 1.2 kV, this module can handle high voltage applications. The module can handle a continuous collector current of 600 A, making it suitable for high-current applications. The isolation voltage is rated at 2500 Vrms, ensuring reliable operation and protection against high-voltage transients. The module's high current and voltage ratings make it an ideal choice for demanding power electronics applications.
Package and Mounting

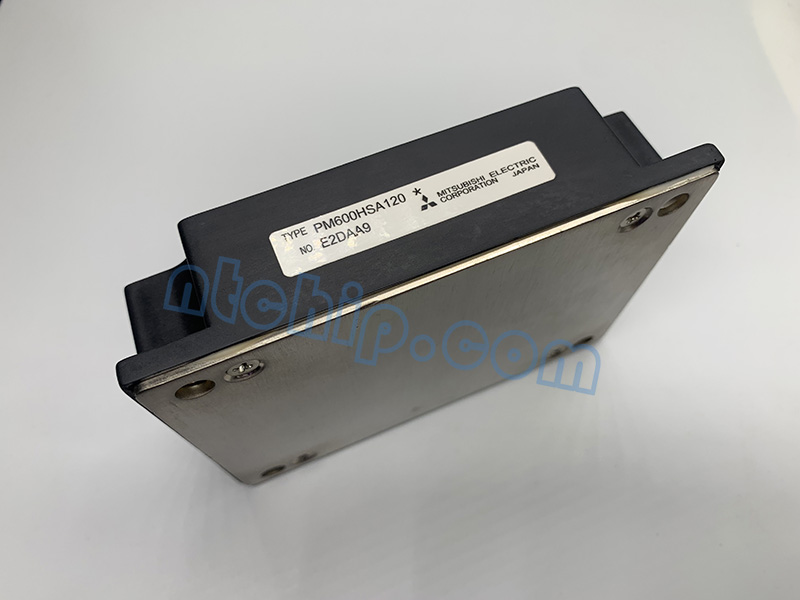

The PM600HSA120 comes in a power module package, which is a standard housing for high-power IGBT modules. The module is designed for chassis mount installation, providing a robust and reliable mounting solution. The power module package offers excellent electrical insulation, thermal performance, and mechanical stability, ensuring reliable operation in demanding environmental conditions.
Product Status and Availability
Part Status: The PM600HSA120 is currently marked as obsolete, which means that it may no longer be in active production or available for new designs. However, customers with existing designs using this module may still be able to source it for maintenance and replacement purposes.
Packaging: The PM600HSA120 is available in bulk packaging, which is suitable for high-volume production and automated assembly processes.
Applications and Benefits
The PM600HSA120 IGBT module is suitable for a wide range of power electronics applications, including:
Motor drives
Uninterruptible power supplies (UPS)
Renewable energy inverters
High-voltage switching systems
The module's high-performance specifications, robust packaging, and reliable operation make it an ideal choice for designers and engineers looking to build efficient and dependable power electronics systems. By using the PM600HSA120, designers can benefit from reduced system size, improved thermal management, and increased overall system efficiency.
