The TDK Micronas HAL805UT-K is an advanced Hall Effect sensor designed for precise magnetic field measurement. This sensor operates with a single-axis sensing capability and provides an analog voltage output. It is particularly noted for its high resolution of 12 bits, which allows for detailed and accurate sensing within a range of ±1mT. The HAL805UT-K is suitable for a variety of applications due to its programmable features and temperature compensation, enhancing its reliability and adaptability in different environmental conditions.

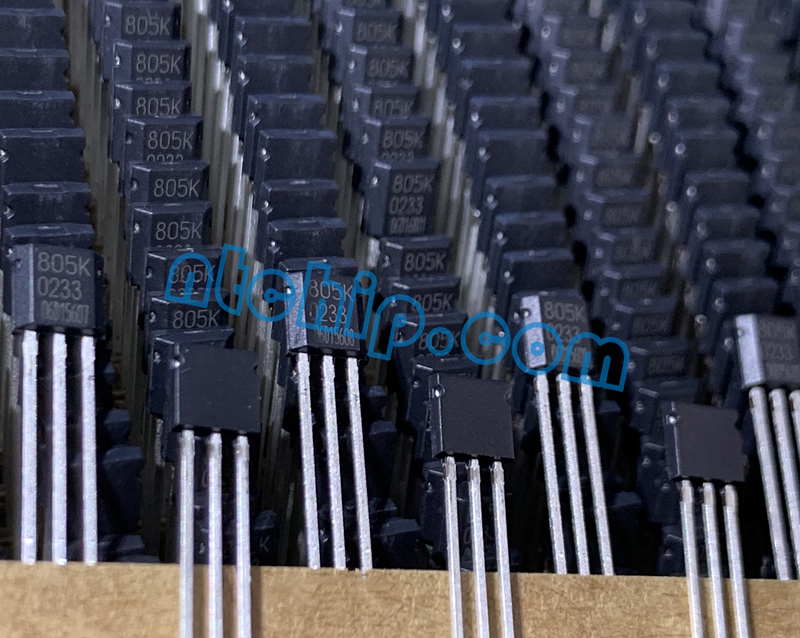

HAL805UT
Despite being marked as obsolete, the HAL805UT-K supports a supply voltage range from 4.5V to 5.5V and maintains a low supply current of up to 10mA, making it energy efficient. It can output a maximum current of 1mA and operates over a broad temperature range from -40°C to 140°C. Additionally, it offers a bandwidth of 2kHz, which is adequate for various real-time applications.

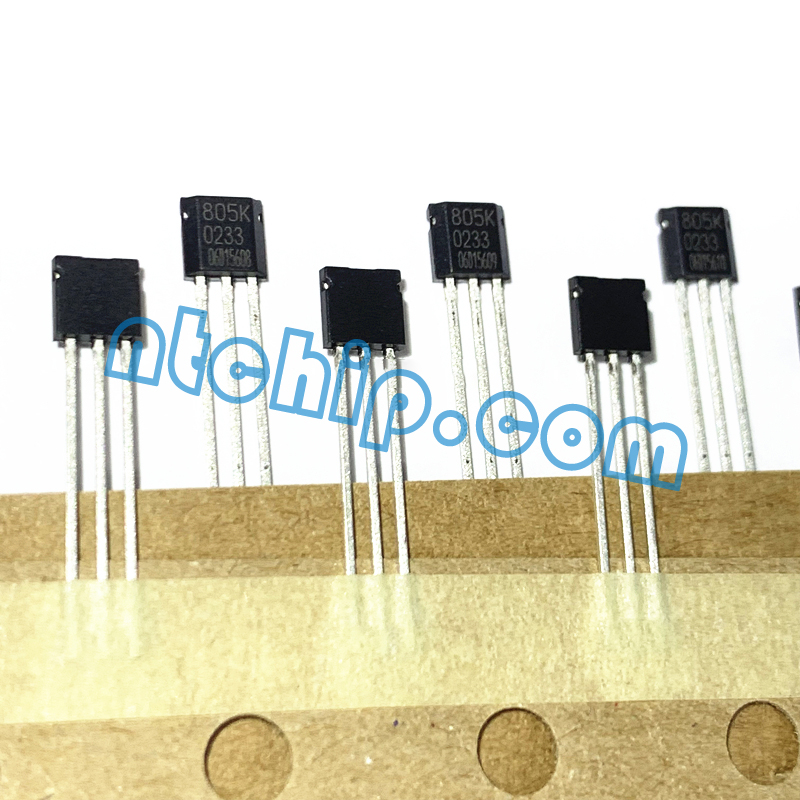

As a professional Micronas distributor, Nantian Electronic has a large number of HAL805UT-K in stock. We also provide HAL805UT-K parameters, HAL805UT-K Datasheet PDF and pin diagram instructions for download.

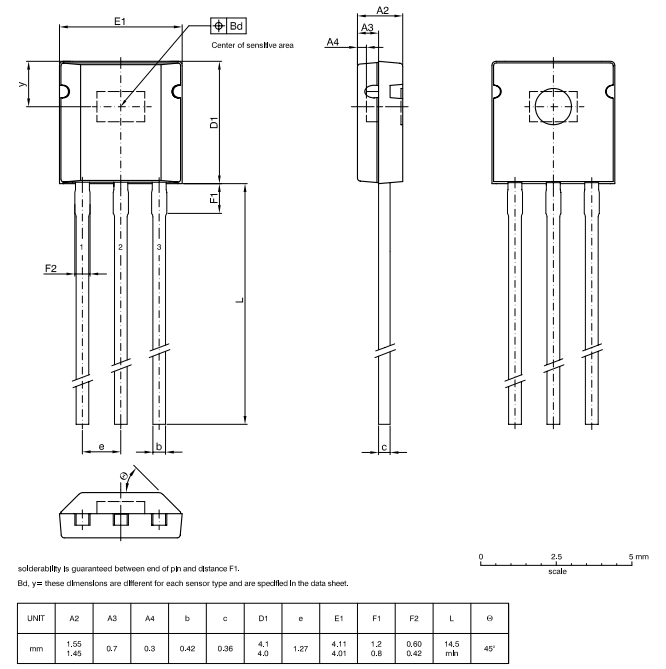

HAL805UT-K Outline dimension
The dimensions of HAL805UT-K are as follows:
HAL805UT-K Outline
Applications
Due to the sensor's versatile programming characteristics, the HAL805 is the optimal system solution for applications such as:
