Infineon Technologies IRFR7440TRPBF

Overview of IRFR7440TRPBF

The IRFR7440TRPBF is a power MOSFET device produced by Infineon Technologies. This product is part of the HEXFET® Power MOSFET series known for their efficient energy usage and high performance in switching applications.

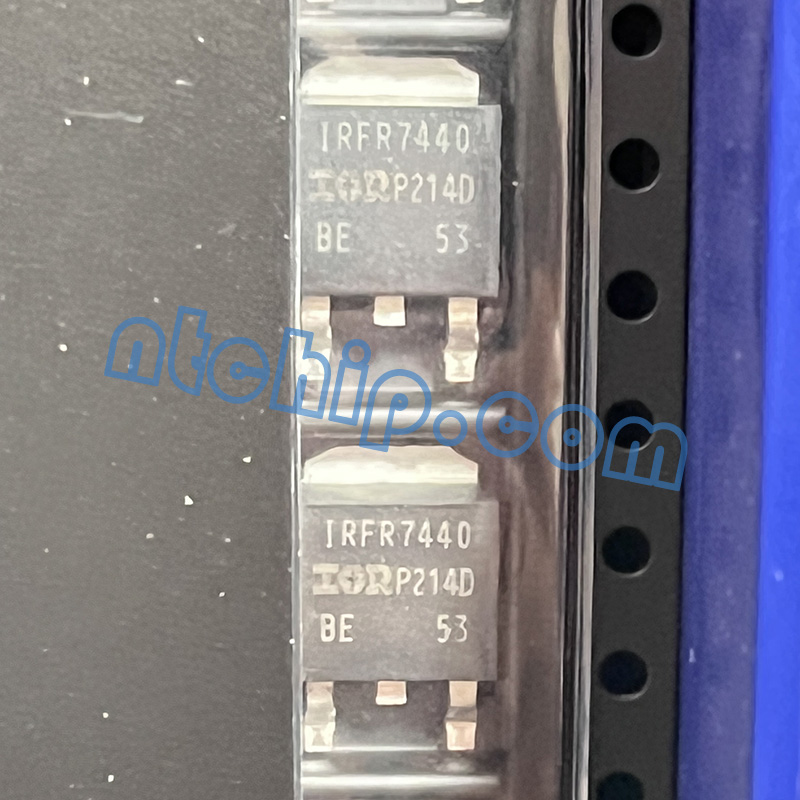

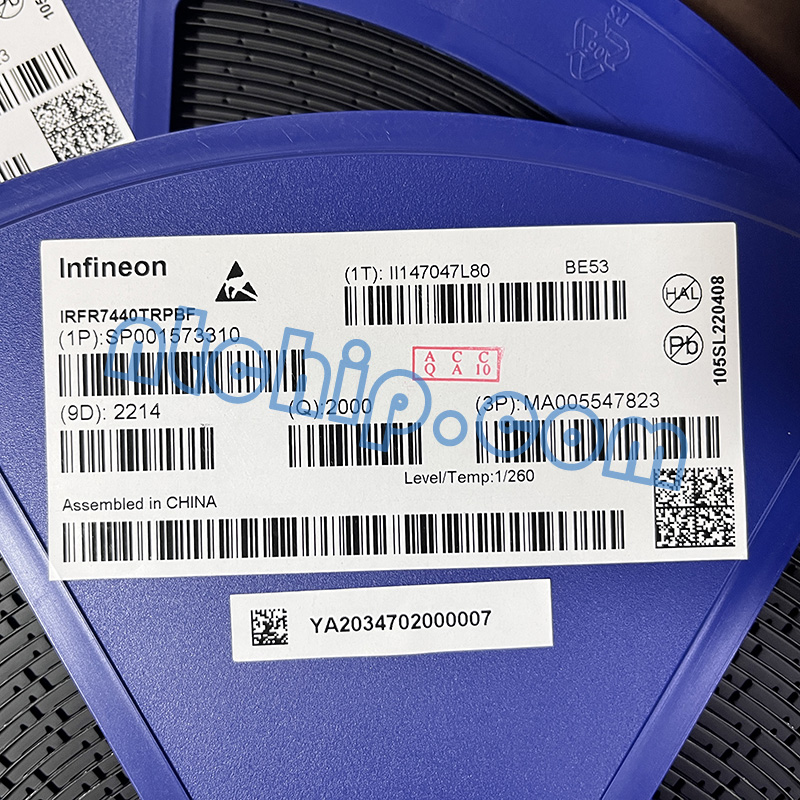

IRFR7440TRPBF comes in tape and reel packaging

Product Technical Characteristics

This particular model, the IRFR7440TRPBF, operates with a drain-source voltage (Vds) up to 40V and can handle continuous drain current (Id) up to 195A at room temperature. It features an ultra-low on-resistance (Rds(on)) of just 2.5mΩ, which contributes significantly to its overall efficiency.

Features and Advantages

• High Current Capacity: With its ability to handle currents up to 195A continuously, this device can manage significant power levels.

• Low On-Resistance: The low Rds(on) value ensures that less energy is wasted as heat during operation.

• Durable: Built using Infineon's reliable HEXFET technology, it promises durability even under stressful operating conditions.

Similar Models in the Same Series

The IRFR7440TRPBF is part of Infineon's HEXFET® Power MOSFET series, which includes several models with similar characteristics. Here are a few:

• IRFR3410ZTRPBF: This model operates at a higher drain-source voltage (Vds) of 100V but has a lower continuous drain current (Id) rating of 17A.

• IRFR3910PBF: A model that offers an even higher Vds rating at 100V, and an Id rating of 16A.

• IRFR5305TRPBF: This P-Channel MOSFET operates with -55V Vds and can handle up to -31A Id. It is suitable for applications requiring negative voltage operation.

Please note that while these models are similar, their specific performance parameters differ from the IRFR7440TRPBF. Always consult the datasheets or product selection guides provided by Infineon Technologies when choosing components for your designs.

Similar Models & Alternative Models

• The IWAS4832FFEB9R7J50: A similar model from Vishay Dale that also offers high current capacity but has slightly higher resistance values.

• The CSD18504KCS: An alternative model from Texas Instruments with lower current capacity but better thermal management properties.

Application Areas & Examples

The IRFR7440TRPBF finds extensive use in applications requiring efficient power handling such as DC/DC converters or motor drives.

An example could be integrating the IRFR7440 within an electric vehicle's motor control circuit where it would efficiently switch large amounts of electrical energy thereby contributing towards overall system efficiency and battery life extension.
