Q: What are the main features of the DMP4051LK3-13?

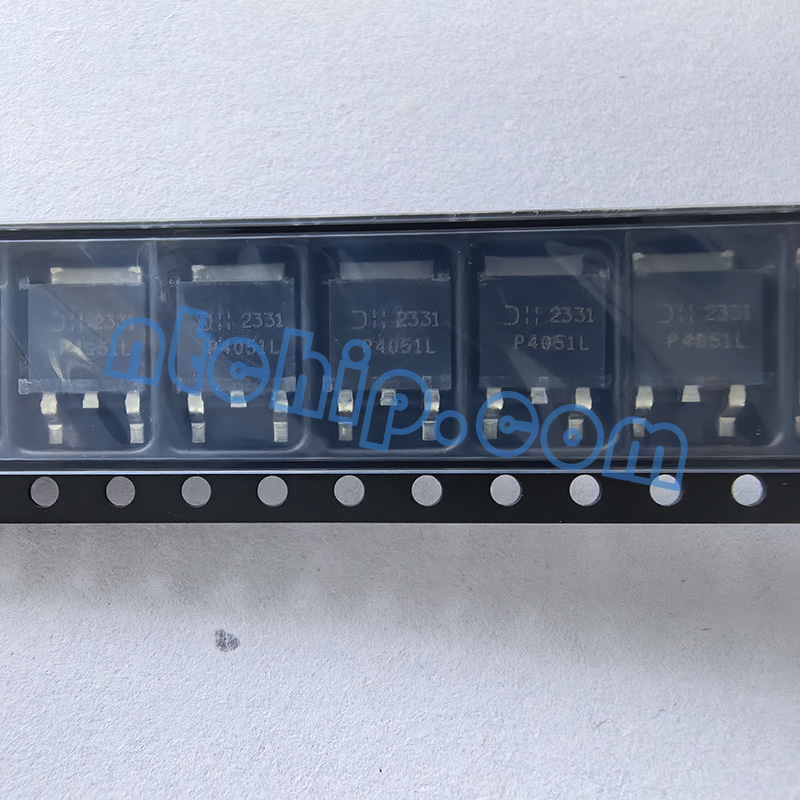

A: The DMP4051LK3-13 is a P-channel enhancement-mode MOSFET with a 40 V drain-to-source voltage rating and a continuous drain current rating of 7.2 A under the specified conditions. It features low on-resistance, fast switching performance, and a ±20 V maximum gate-to-source voltage. The maximum RDS(on) is specified at 51 mΩ with a -10 V gate drive and 85 mΩ with a -4.5 V gate drive. It is supplied in a compact TO-252-3 (DPAK) surface-mount package and is designed for efficient power-management applications.
Q: What is the DMP4051LK3-13 used for?
A: The DMP4051LK3-13 is mainly used for power switching and power-management functions. Typical applications include DC-DC converters, backlighting circuits, load switching, battery-powered equipment, and other systems that require a P-channel MOSFET for controlling power paths. Its low on-resistance and fast switching characteristics can help reduce conduction and switching losses when the device is properly driven and thermally managed.
Q: Dose it have any Alternative manufacturer and part number?
A: Yes. Potential alternatives include onsemi FDD4243 and other 40 V P-channel MOSFETs with similar current and resistance ratings. Devices from Diodes Incorporated and other manufacturers with comparable voltage, current, and RDS(on) specifications may also be considered. However, these parts should not automatically be treated as direct replacements. Designers should compare RDS(on) at the actual gate voltage, drain current, gate charge, package and pin configuration, thermal characteristics, and operating conditions before substitution.
Q: Is technical support available for this part?
A: Yes. Technical support can be provided for the DMP4051LK3-13, including datasheet information, pin configuration, MOSFET selection, gate-drive requirements, RDS(on) evaluation, thermal considerations, and alternative-part assessment. Professional distributors can also assist with availability confirmation, sourcing, replacement evaluation, and application-related component selection.
