What are the key features of the AP1117EG-13?

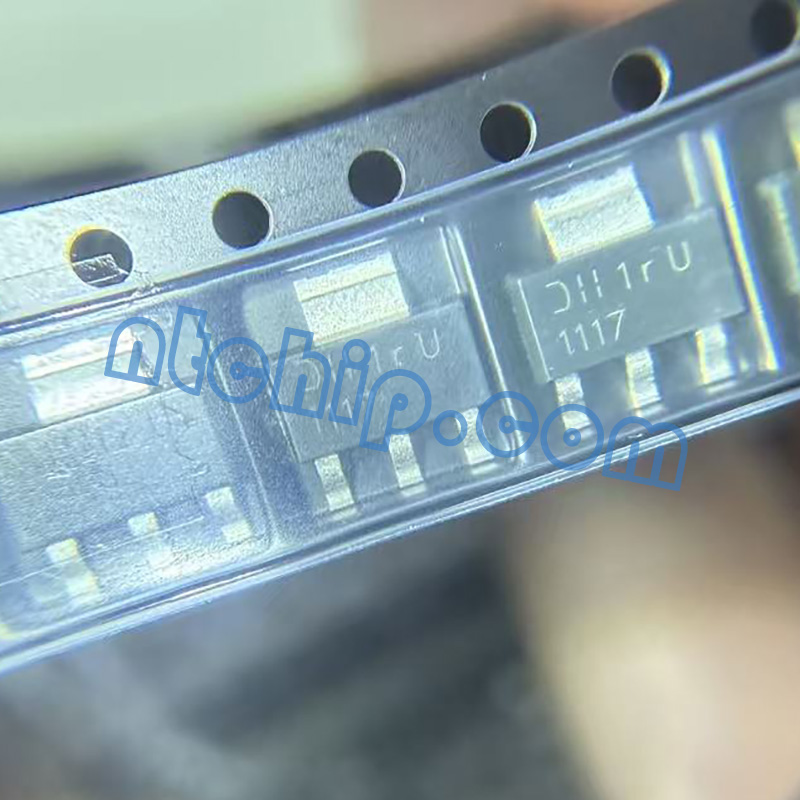

The AP1117EG-13 is a low-dropout (LDO) linear voltage regulator capable of delivering up to 1 A of output current with a low dropout voltage (≈1.4 V at full load). It offers fast transient response, good noise rejection, output current limiting, and built-in thermal shutdown protection. It supports fixed output voltages (including 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V) or adjustable versions, operates over a wide temperature range, and comes in a compact, lead-free SOT-223 package.
What is it used for?
This regulator is used to provide a stable, regulated DC supply in electronic systems. It is suitable for power management in consumer electronics, embedded boards, communication devices, and other circuits that need clean, reliable voltages for sensitive components like microcontrollers, sensors, and RF modules.
Are there alternative parts?
Yes. Alternatives include other LDO regulators with similar current and voltage ratings, such as the AP1117 family variants (e.g., AP1117-3.3 for fixed 3.3 V) or LDOs from other manufacturers like the AMS1117, LM1117, or MIC5219 series, depending on your required output voltage, package, and performance needs.
