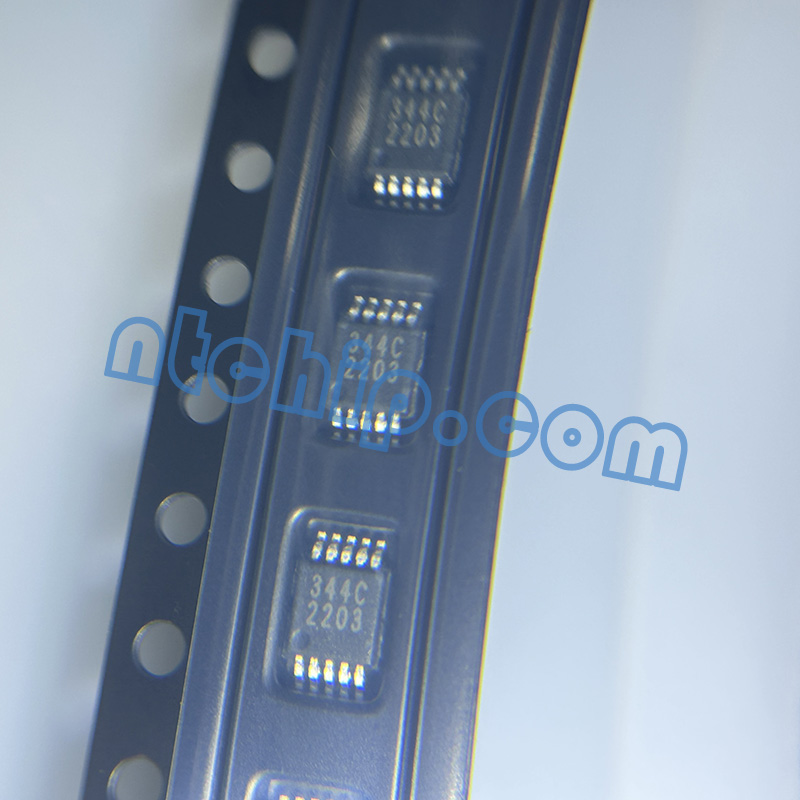

The CS4344-CZZR from Cirrus Logic Inc. encapsulates a full, stereo digital-to-analog output system, including interpolation, multi-bit D/A conversion, and output analog filtering—all conveniently housed within a compact 10-pin TSSOP package. Tailored to support all major audio data interface formats, it leverages a 4th order multi-bit delta-sigma modulator alongside a linear analog low-pass filter, marking itself as a comprehensive solution for audio signal processing.
Distinctively, the CS4344-CZZR possesses a broad dynamic range of 105dB and an impressively low THD+N of -95 dB, thus facilitating high-fidelity audio experience. It boasts of a single +3.3V or +5V power supply and low clock jitter sensitivity, ensuring operational stability. Furthermore, it features regulation for automatically detecting sample rates up to 192kHz and has on-chip digital de-emphasis, thus enhancing its functionality. With Cirrus Logic's unique Popguard™ technology, the CS4344-CZZR manages to eliminate unwanted noise during power transitions, ensuring pristine audio output. As such, the CS4344-CZZR is ideal for DVD players, digital televisions, home theater and set top box products, and automotive audio systems.

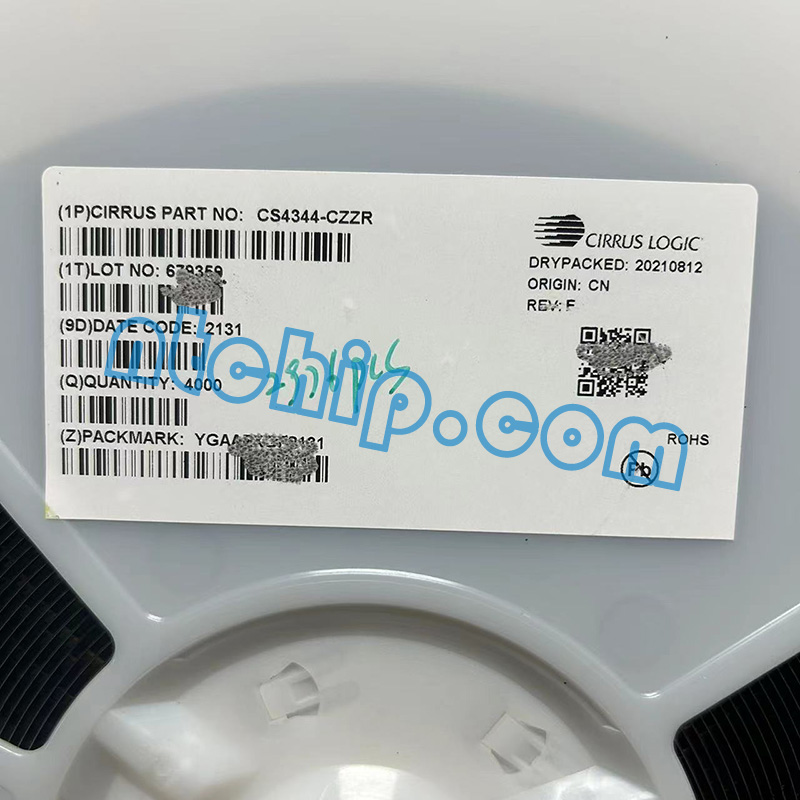

Cirrus Logic Inc. CS4344-CZZR Package Original Label
As a professional distributor for Cirrus Logic Inc., Nantian Electronics stocks a large number of CS4344-CZZRs and also provides easy access to its datasheet, pin diagram instructions, and specific parameters.
