Bourns Inc. CDSOD323-T05C


Manufacturer Part Number : CDSOD323-T05C
Manufacturer : Bourns Inc.
Description : TVS DIODE 5VWM 18.3VC SOD323
Datasheet : CDSOD323-T05C.PDF CDSOD323-T05C PDF
EDA / CAD Models : CDSOD323-T05C by SnapEDA
Base Product Number : CDSOD323
Stock Condition :In Stock 65000, New Original
Quantity:
RFQ Add to RFQ List
Delivery:
Payment:
404 420 6907692 CDSOD323-TxxC.PDF Bourns-Inc/CDSOD323-T05C

Request for Quotation


Please fill the form and we'll get back to you within 24 hours.
Quick RFQ
Bourns Inc. CDSOD323-T05C

In Stock: 65000   Qty:

RFQ Now Add to RFQ list

The Bourns Inc. CDSOD323-T05C is a compact and highly reliable TVS diode designed to protect a single line or I/O port from electrostatic discharge (ESD) events. With its bidirectional configuration and ESD protection up to 30 kV, this component provides robust safeguarding for sensitive electronic circuits. Its low capacitance of approximately 3 pF makes it ideal for high-speed data applications, and its design serves as a direct replacement for 0805 MLV devices, offering enhanced performance while saving board space.

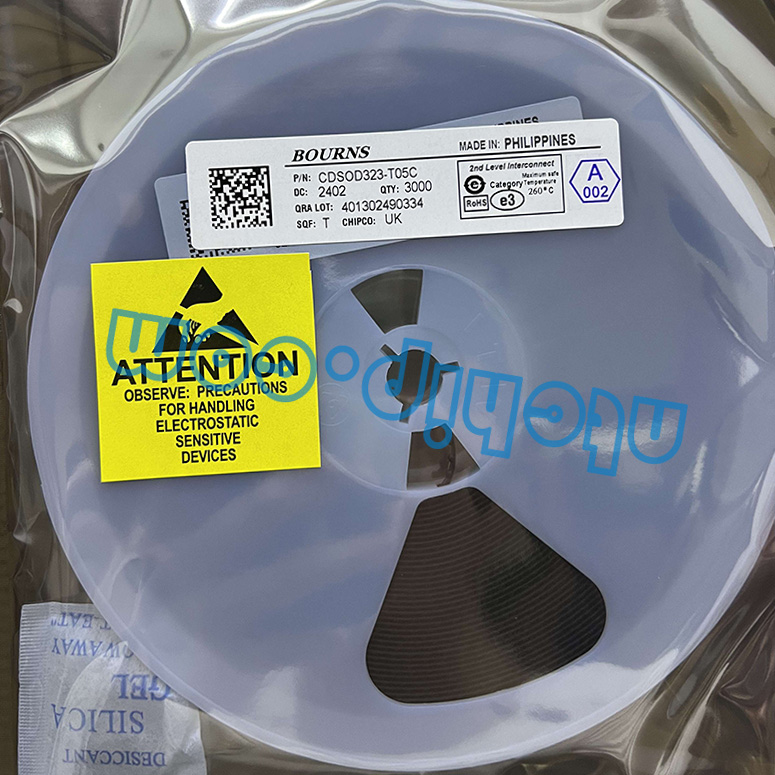

Bourns Inc. CDSOD323-T05C original label

This TVS diode is an excellent choice for safeguarding devices like cellular phones, PDAs, notebooks, digital cameras, MP3 players, GPS units, and USB interfaces. Its reliability and versatility make it a preferred solution for both consumer and industrial electronics. Bourns Inc. ensures high-quality protection for modern, compact devices, and as a trusted distributor, Nantian Electronics provides ample stock of the CDSOD323-T05C, along with datasheets and technical resources to support your projects. Contact us to secure competitive pricing and reliable delivery for this essential protection component.

TypeDescription
CategoryCircuit Protection TVS - Diodes
MfrBourns Inc.
Series-
PackagingTape & Reel (TR)
Part StatusActive
TypeZener
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5V
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp18.3V (Typ)
Current - Peak Pulse (10/1000µs)17A (8/20µs)
Power - Peak Pulse350W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency3pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Base Product NumberCDSOD323
