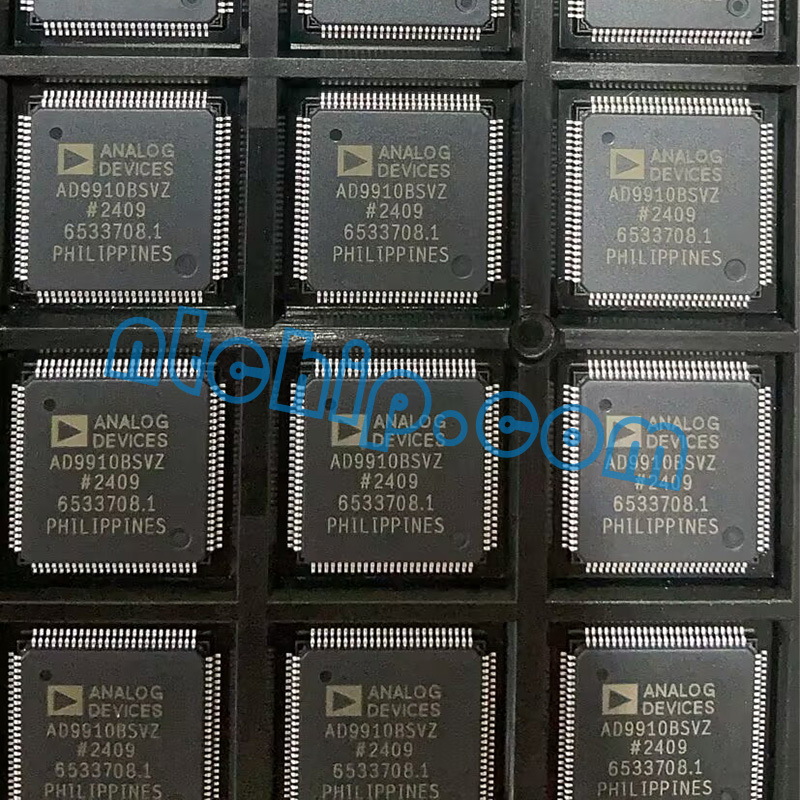

What are the main features of the AD9910BSVZ?
The AD9910BSVZ is a high-performance direct digital synthesis (DDS) IC that integrates a 14-bit DAC operating at up to 1 GSPS, enabling precise and stable signal generation. It offers a 32-bit frequency tuning word, allowing extremely fine frequency resolution down to sub-hertz levels. The device delivers excellent spectral purity with low phase noise (≤ −125 dBc/Hz at 1 kHz offset) and high spurious-free dynamic range (SFDR > 80 dB). It also supports advanced features such as amplitude, phase, and frequency modulation, programmable sweep functions, multiple profile modes, an internal PLL for clock multiplication, and on-chip RAM for waveform storage.
What is the AD9910BSVZ used for?
This IC is widely used in applications that require accurate and flexible waveform generation. Typical uses include RF communication systems, radar systems, signal generators, instrumentation, and automatic test equipment (ATE). It is especially valuable in designs that demand precise frequency control, fast switching, and complex modulation capabilities, such as software-defined radio and frequency-agile systems.
Does the AD9910BSVZ have alternative parts?
Yes, there are several alternatives depending on performance and feature requirements. Within Analog Devices’ portfolio, devices like the AD9912, AD9914, and AD9957 offer similar DDS functionality with variations in speed, resolution, and integration. Other manufacturers also provide DDS or signal synthesis solutions, though direct pin-to-pin compatibility may vary. When selecting an alternative, it is important to compare parameters such as DAC resolution, maximum clock rate, phase noise, SFDR, modulation features, and interface options to ensure the replacement meets the application’s performance needs.
