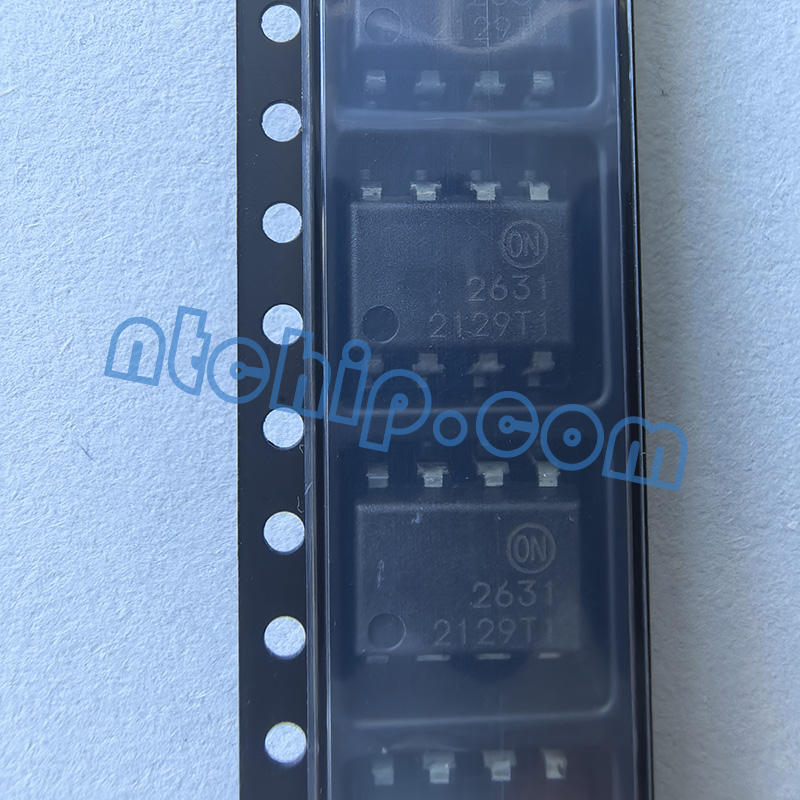

AMI Semiconductor / ON Semiconductor HCPL2631SD

The HCPL2631SD from ON Semiconductor is a high-speed, dual-channel optoisolator designed for reliable data transmission.  This robust component boasts a blazing fast 10 Mbps data transfer rate, making it suitable for demanding applications requiring rapid signal transmission.  Its superior common-mode rejection (CMR) of 10 kV/s ensures signal integrity even in noisy environments, while the 2500 Vrms isolation voltage and 5 kV/µs surge capability safeguard against electrical disturbances and transients.

Key features include a logic output stage, allowing direct connection to digital logic circuits.  The open-collector output configuration enables wired OR functionality, and the strobable output provides precise control over signal timing.  Operating reliably over a wide temperature range (-40°C to +85°C) and with a high fan-out of 8, the HCPL2631SD is a versatile and powerful component for a variety of industrial and consumer applications.Nantian Electronics, a trusted ON Semiconductor distributor, proudly offers a substantial stock of HCPL2631SD optoisolators.  We provide comprehensive support, including detailed HCPL2631SD datasheets (PDF) and easy-to-follow pin diagrams.  To acquire this high-performance component, simply contact us for a competitive quote. We look forward to your inquiry and order!
