Altera EP5358HUI Switching Voltage Regulator
The Altera EP5358HUI is a switching voltage regulator manufactured by Altera, designed for power management applications. It falls under the category of Switching Voltage Regulators and is suitable for various electronic devices requiring stable power supply.
EP5358HUI
The EP5358xUI (x = L or H) is rated for up to 600mA of continuous output current. The EP5358xUI integrates MOSFET switches, control, compensation, and the magnetics in an advanced 2.5mm x 2.25mm micro-QFN Package.

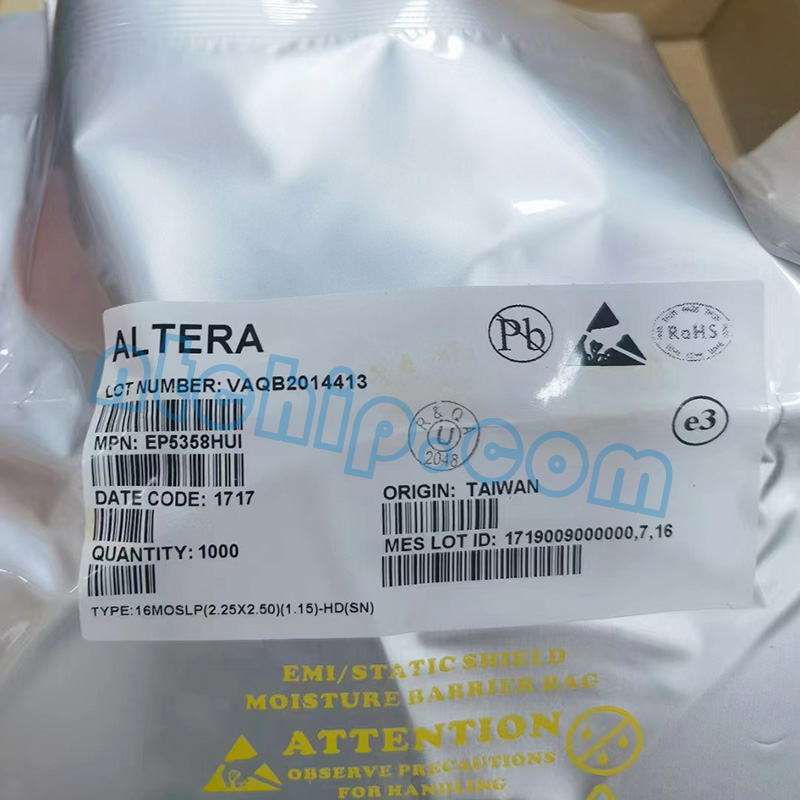

Original EP5358HUI in stock
As a professional ALTERA distributor, Nantian Electronic has a large number of EP5358HUI in stock. We also provide EP5358HUI parameters, EP5358HUI Datasheet PDF and pin diagram instructions for download.

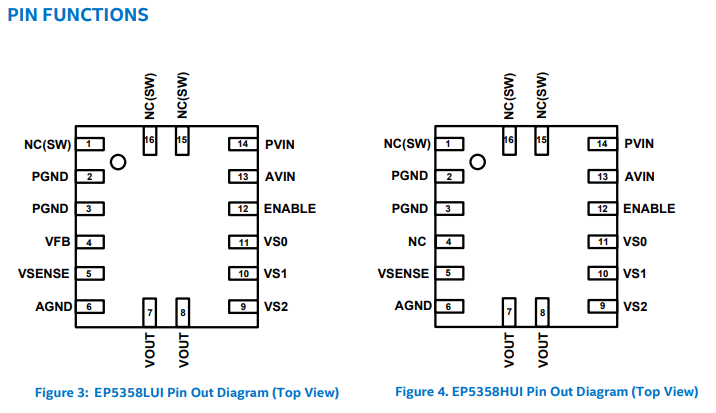

EP5358HUI Pinout
EP5358HUI pin function diagram is as follows:
EP5358HUI pin function
Key Specifications:
Adjustable output voltage ranging from 1.8 V to 3.3 V.
Capable of delivering up to 600 mA of current to power connected components.
Accepts input voltages up to a maximum of 5.5 V.
Features 1 output channel for powering devices.
Utilizes a Buck topology for efficient voltage regulation.
Operates at a frequency of 5 MHz for regulating output voltage.
Additional Information:
Works within a wide temperature range from -40°C to +85°C.
Comes in a QFN-16 package, suitable for Surface Mount Device (SMD) or Surface Mount Technology (SMT) applications.
Available in Reel, Cut Tape, and MouseReel packaging for convenience.
Supports input voltages ranging from 2.4 V and above.
Offers a load regulation of 0.48 %/A for stable output voltage under varying loads.

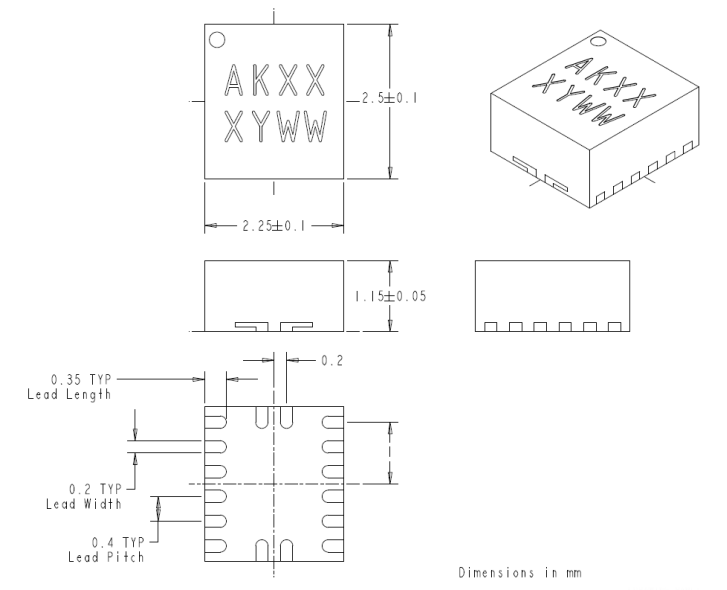

EP5358HUI DIMENSIONS
The size information of EP5358HUI is as follows:
EP5358HUI Dimension Diagram
