Introduction to the A3213EUA-T by Allegro MicroSystems, LLC
The A3213EUA-T from Allegro MicroSystems, LLC is a sophisticated and robust Hall-effect switch designed for specialized applications in different fields. Utilizing advanced BiCMOS technology, this device exhibits high-precision functionality and cost-effective performance, making it a preferred choice for professionals and enthusiasts alike.

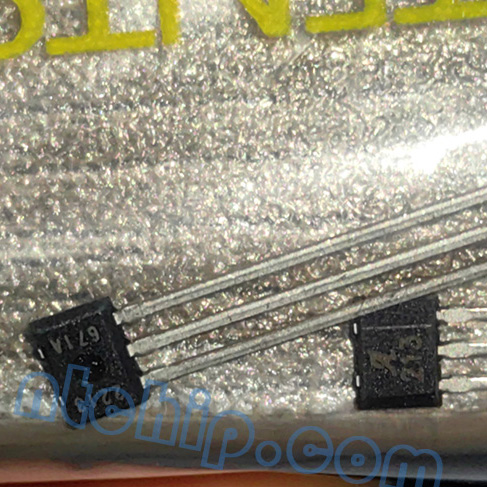

A3213EUA-T front and back
Key Features of the A3213EUA-T
This product is packed with numerous exciting features that make it stand out from its counterparts:
Robust and Reliable: It's manufactured using the Chopper Stabilization technique, reducing the sensitivity to physical stress and providing stable performance.
Advanced Technology: The A3213EUA-T utilizes the advanced BiCMOS design, ensuring lower power consumption and high output drive capability.
Enhanced Safety: It comes with an inbuilt regulator which makes it resilient to power supply noise and ripple.
Flexible and Easy-to-Use: The flexible design of the device makes it useable in either a digital output or an analog output mode.
Technical Specifications of the A3213EUA-T
The A3213EUA-T is packed with impressive technical specifications:
Operating Voltage: 3.8V to 24V
Output Current Rating: 25 mA
Sensing Range: Omni-polar
Switching Time: 20 µs
Temperature Range: -40°C to 85°C
Package Type: SOT23W (3-pin)
Applications of the A3213EUA-T
The A3213EUA-T has wide-ranging applications. It is particularly well-suited and extensively used in fields like:
Automotive systems: In applications like speed detection, RPM sensing, etc.
Industrial control systems: In applications like limit switching, rotation detection, etc.
Consumer Electronics: In applications like security system components, home automation gadgets, etc.
Same series models of A3213EUA-T
The A3213EUA-T is a product from Allegro MicroSystems. It's an ultra-sensitive, pole-independent Hall-effect switch with latched digital output. This device is designed for use in applications where high levels of accuracy and consistency are required.
Here are some other models in the same series:
A3212ELHLT-T
A3214EUA-T
A3220EUA-T
Please note that while these components share the same series, their specifications might differ based on sensitivity, temperature range, package type among other parameters.
Allegro MicroSystems is the manufacturer of the A3212ELHLT-T, which is available in stock at Nantian. The reference price for A3212ELHLT-T can be found by referring to Allegro MicroSystems or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the A3212ELHLT-T datasheet PDF and pin diagram description that are available for download.

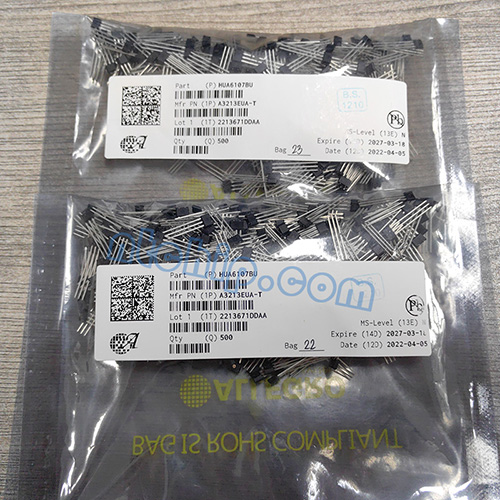

In stock A3213EUA-T
The A3212ELHLT-T has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to A3212ELHLT-T could be downloaded from Nantian's platform.
