The ADSP-2181KS-160, produced by Analog Devices Inc., is a single-chip microcomputer optimized for digital signal processing (DSP) and other high-speed numeric processing applications. The core of this chip is built upon the ADSP-2100 family base architecture, and it features three computational units, data address generators, and a program sequencer. These elements combined create a powerful and efficient microcomputer capable of handling complex calculations and data processing.

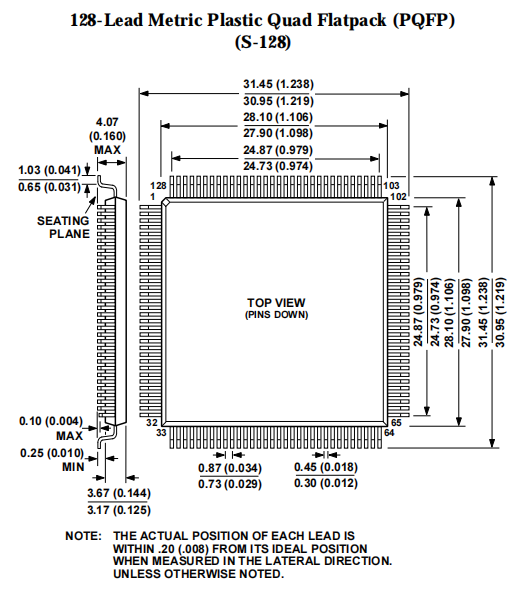

Analog Devices Inc. ADSP-2181KS-160 Package Dimensions:
The device also boasts a collection of integrated features aimed to facilitate connectivity and functionality, including two serial ports, a 16-bit internal DMA port, a byte DMA port, and a programmable timer. The microcomputer's embedded memory consists of 80K bytes configured as 16K 24-bit words of program RAM and 16K 16-bit words of data RAM. To improve user experience, the ADSP-2181KS-160 also supports a series of new instructions, including bit manipulation, new ALU operations, and global interrupt masking for increasing flexibility. Emphasizing on performance, the chip is designed to accomplish multiple operations in parallel. In a single processor cycle, the DSP can perform operations like fetching an instruction, performing one or two data moves, updating data address pointers, and executing a computational operation.

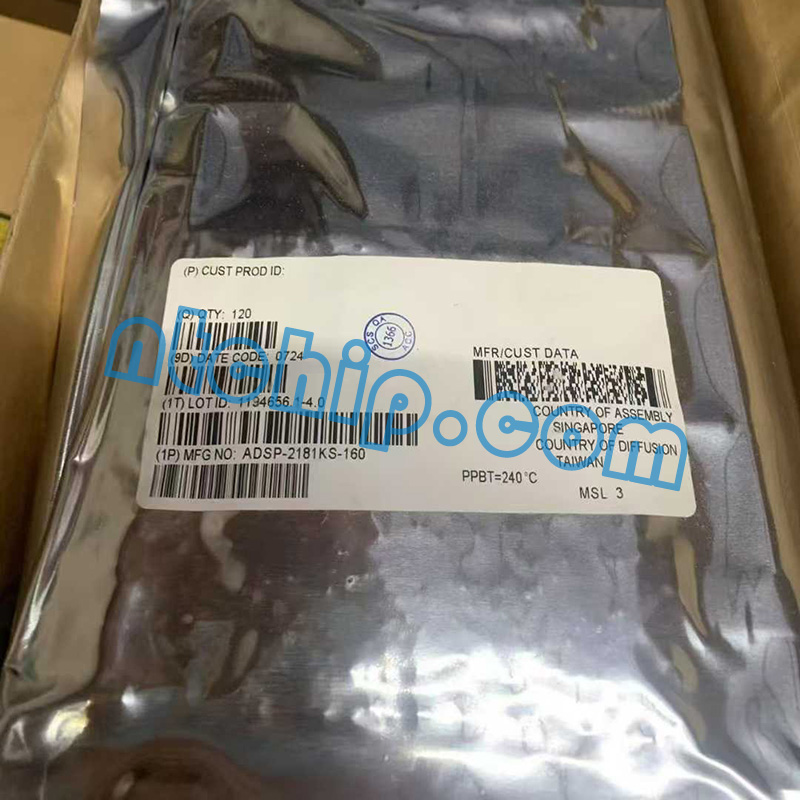

Analog Devices Inc. ADSP-2181KS-160 Package Original label Photo
