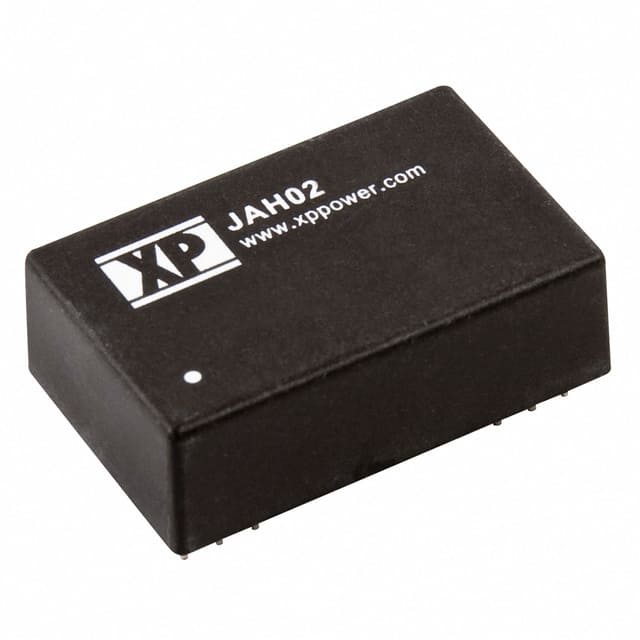

XP Power JAH0212D03

Manufacturer Part Number :	JAH0212D03
Manufacturer :	XP Power
Description :	DC/DC CONVERTER +/-3.3V 2W
Datasheet :	JAH0212D03.PDF
EDA / CAD Models :	JAH0212D03 by SnapEDA
Base Product Number :	JAH0212
Stock Condition :	In Stock 10, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

XP Power JAH0212D03

In Stock: 10 Qty:

RFQ Now Add to RFQ list

We can supply XP Power part# JAH0212D03, use the request quote form to request JAH0212D03 pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JAH0212D03. The price and lead time for JAH0212D03 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# JAH0212D03. We look forward to doing business with you.

Series:	JAH
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-3.3V
Voltage - Output 3:	-
Current - Output (Max):	300mA
Power (Watts) - Manufacture Series:	2W
Voltage - Isolation:	1kV (1000V)
Applications:	ITE (Commercial)
Features:	SCP, UVLO
Mounting Type:	Through Hole
Package / Case:	24-DIP Module (12 Leads)
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Operating Temperature:	-40～C ~ 100～C
Efficiency:	66%
