WeEn Semiconductors WNSCM80120WQ

Manufacturer Part Number :	WNSCM80120WQ
Manufacturer :	WeEn Semiconductors
Description :	N-Channel 1200 V 42A (Ta) 230W (Ta) Through Hole TO-247-3
Package :	TO-247-3
Datasheet :	WNSCM80120WQ.PDF
EDA / CAD Models :	WNSCM80120WQ by SnapEDA
Base Product Number :	WNSCM80120
Stock Condition :	In Stock 13200, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

WeEn Semiconductors WNSCM80120WQ

In Stock: 13200 Qty:

RFQ Now Add to RFQ list

The WeEn Semiconductors WNSCM80120WQ is a highly efficient and reliable power transistor designed for modern energy conversion and management systems. With features like low on-resistance, fast switching speeds, and a 0V turn-off gate voltage for simplified gate drive, this model ensures optimal performance in demanding applications. Its controllable dV/dt helps to minimize electromagnetic interference (EMI), and its design supports easy parallel connection for enhanced flexibility. Additionally, the reduced cooling requirements make it an energy-efficient choice for a wide range of power electronics.

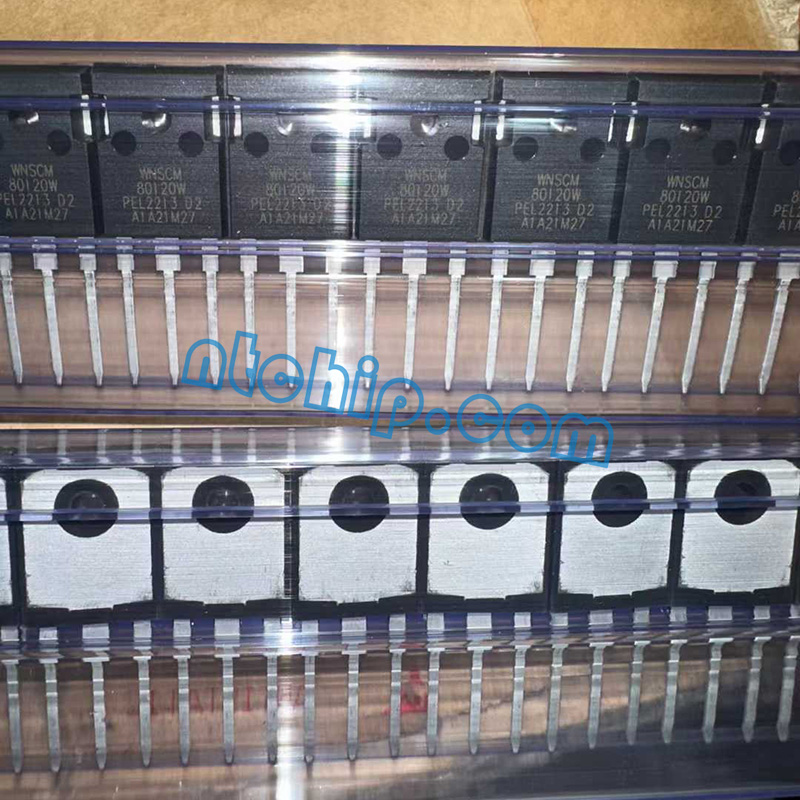

WeEn Semiconductors WNSCM80120WQ part picture

Ideal for switch-mode power supplies, uninterruptible power supplies (UPS), solar string inverters and optimizers, EV chargers, and motor drives, the WNSCM80120WQ stands out as a versatile and robust solution.

WeEn Semiconductors WNSCM80120WQ Package Original Label

As a trusted WeEn Semiconductors distributor, Nantian Electronics offers extensive stock of the WNSCM80120WQ, along with detailed parameters, datasheets, and pin diagram instructions for download. We welcome inquiries and are committed to providing the best prices and service!

Type	Description
Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	WeEn Semiconductors
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	42A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	98mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	4.5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 20 V
Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	230W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
Base Product Number	WNSCM80120
