The WG50N65DHJQ, a product from WeEn Semiconductors, is a high-speed Insulated-Gate Bipolar Transistor (IGBT) packaged with an anti-parallel diode in the efficient TO247 package. This advanced semiconductor device brilliantly marries the high-input impedance of MOSFETs and the low on-state conduction loss of bipolar transistors, thereby rendering itself as an ideal solution for swift and loss-minimized applications.
Featuring high-speed operation and marked by low switching losses, the WG50N65DHJQ stands out for its efficiency and performance. Its fast and soft recovery anti-parallel diode complements its capabilities, facilitating speedy responses without compromising overall device operations. A positive VCE(sat) temperature coefficient amplifies its stable operation under varied temperature ranges. The integration of Trench Gate Field-Stop technology further optimizes its performance, effectively reducing conduction and switching losses. The halogen-free package and lead-free lead finish make it a safer and more eco-friendly choice, compliant with RoHS standards. Its low thermal resistance ensures efficient heat dissipation, fostering longevity and reliability, and its construction meets the UL94V0 flammability requirement, adding an extra layer of security. It is qualified according to the rigorous JEDEC standards.

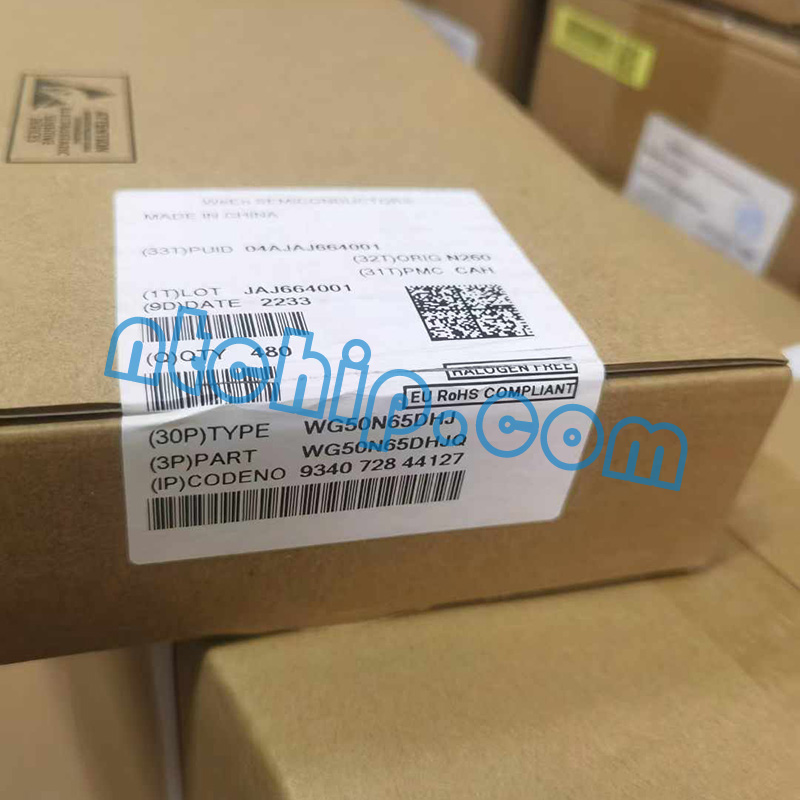

WeEn Semiconductors WG50N65DHJQ Package Original Label
As a reputable distributor of WeEn Semiconductors, Nantian Electronics holds a considerable inventory of WG50N65DHJQ. Beyond providing the component itself, Nantian Electronics also supports users by offering the WG50N65DHJQ parameters, datasheet PDF, and pin diagram instructions for download. These resources are valuable for anyone looking to understand and integrate the WG50N65DHJQ into their projects effectively.
